These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Description

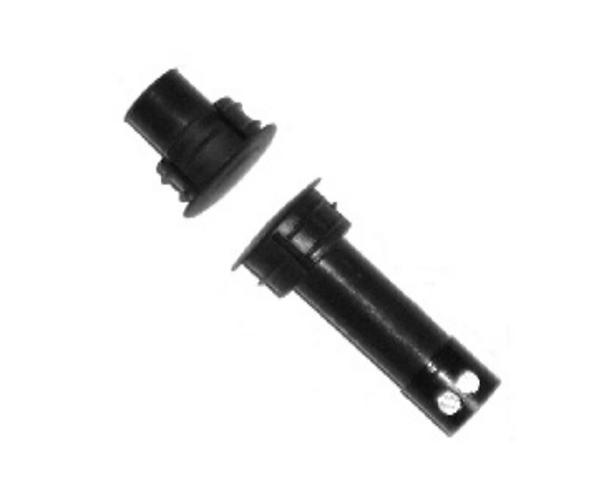

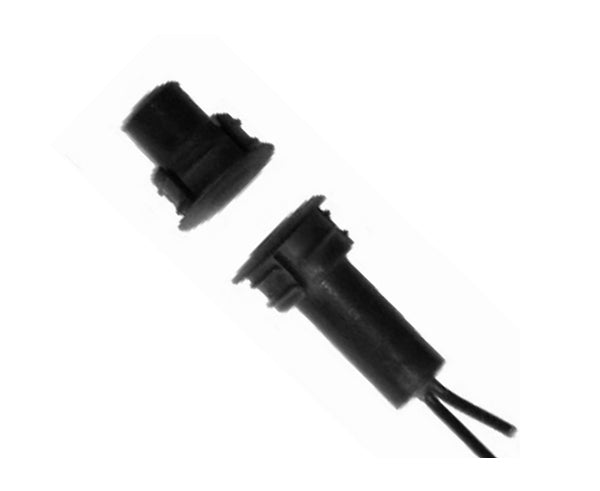

Recessed 1/2" Switch Set - 150 Series - 10 Pack - 10 Pack
Larger than 3/8” but smaller than 3/4”, we introduce our newest innovative switch design, the one-half inch diameter, flush mount, 150-12. This new design is in response to requests from our customers for a switch that would give them additional “working room” for extra wire, E.O.L. resistors, etc., yet would more readily install in the increasingly popular hollow core windows. The 150-12 is a 1/2” diameter contact, manufactured from a special polyvinyl material with a unique collar design that will “press-fit” into wooden or vinyl clad windows with a “snap-in” fit for hollow core vinyl or aluminum windows.
The 150-12 is paired with a matching 1/2” magnet case to offer the installer up to a 1” gap. The 150 switch can also be paired with any of the wide selection of our magnets to help resolve difficult installation applications, such as our MF-875.
Features
Features
- Designed for Hollow Core Doors & Windows
- Hole Size Allows For Extra Wire, etc.
- Up To One Inch Standard Gap
- Installs Firmly In Wood, Vinyl And Aluminum
- Recessed Magnetic Contact
- Press or Snap Fit
- 12” #22AWG Leads
- Longer Leads, Zip Cord or Jacketed Cable Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Built-in E.O.L. Resistors and Diodes Upon Request
- Supervisory Loops Upon Request
- Switches and Magnets Available Separately
- Color: White & Brown
- Lifetime Warranty
- Made In U.S.A.
Specifications
Specifications
What's In The Box
What's In The Box
- Qty 10 - Magnetic Recessed Switch Sets
