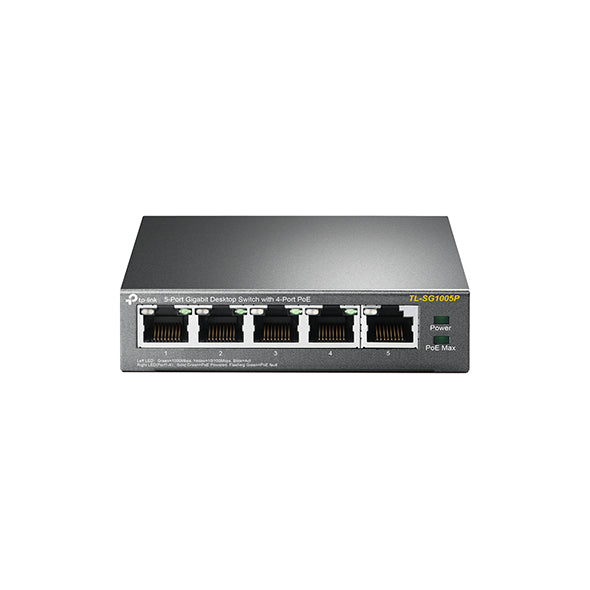

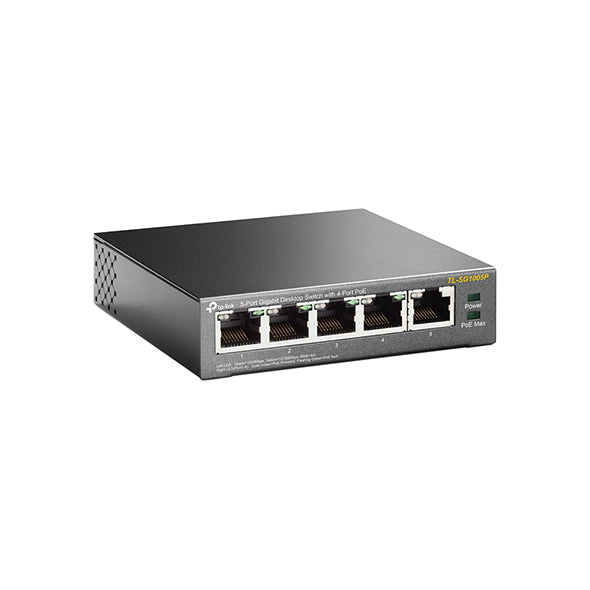

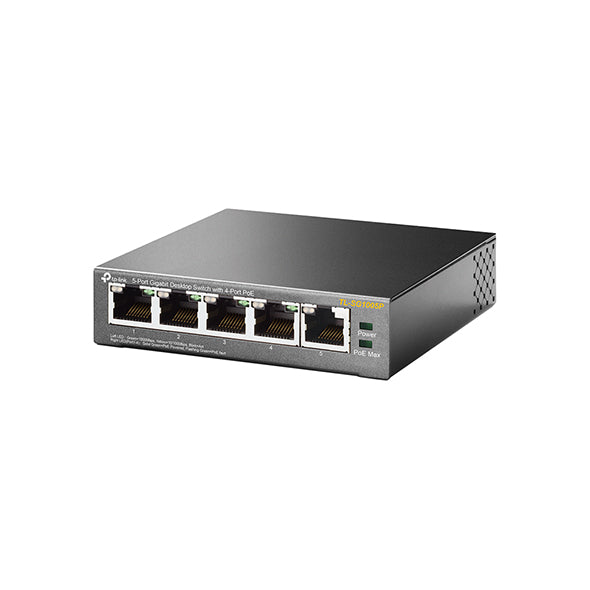

5-Port Gigabit Switch with 4-Port PoE - Desktop, Unmanaged

by TP-Link
$49.99
SKU: TL-SG1005P
Various lead times may apply to this product. Please contact us for more details.

FCC Logo ROHS Logo

Description

Unmanaged 5 Port Switch 10/100/1000Mbps - 4 PoE

What This Product Does

The 5-Port Gigabit desktop switch provides an easy way to make the transition to Gigabit Ethernet. The ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, this switch can save the power consumption, making it an eco-friendly solution for your business network.

Green Technology

This new generation The 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

This switch features non-blocking wire-speed architecture with a 10Gbps switching capacity for maximum data throughput. An 2K MAC address table provides scalability for even the largest networks.

Ease to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis. This features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Features

  • Five (5) 10/100/1000Mbps RJ45 Ports
  • 4 Power over Ethernet (PoE)
  • Desktop Switch
  • 100% Data filtering rate eliminates all error packets
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • 10Gbps Switching Capacity
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Compact size design for desktops
  • Plug and Play design simplifies installation
  • Fanless design to make sure it works quietly

Specifications




HARDWARE FEATURES
Interface 5 x 10/100/1000 Mbps RJ45 Ports Auto-Negotiation/ Auto MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 65 W
MAC Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions (W x D x H) 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
Max Power Consumption 4.29 W (220/50 Hz. no PD connected)
74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 14.63 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-and-Forward
GENERAL
Certification FCC, CE, RoHS
Package Contents TL-SG1005P
Power Adapter
Installation Guide
Environment Operating Temperature: 0–40 ℃ (32–104 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don’t require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our switches can be combined with a wide array of products such as:

What's in the Box

  • Qty 1 - 5-Port Gigabit Desktop Switch
  • Qty 1 - Power Adapter
  • Qty 1 - Installation Guide
