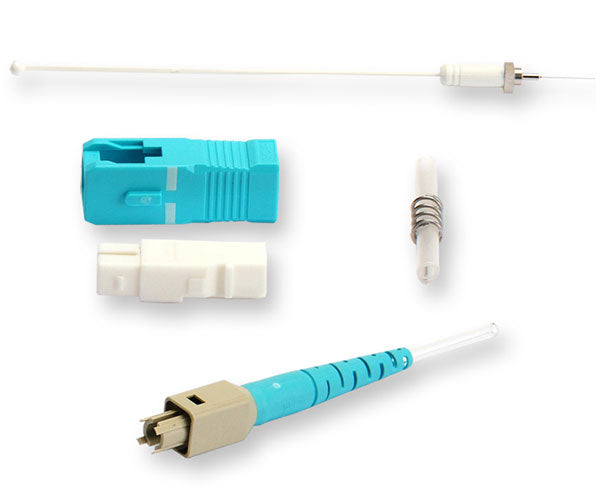

Corning FuseLite Fiber Connector, Multimode, 50/125 OM2/OM3/OM4, SC, 900um, Single Pack

by Corning
Various lead times may apply to this product. Please contact us for more details.

Connectors are sold individually. All Corning products are special ordered and non-cancellable, non-returnable


FuseLite® SC Connector, MM 50/125, OM2/OM3/OM4, 900um, Single Pack

The FuseLite® Splice-On Connector enables fast, reliable fusion splicing connectivity for local area networks and offers flexibility for repairs and restoration of connectivity.

Available in SC, LC, FC, and ST Compatible, the FuseLite® Connector provides a reliable connectivity option for applications where fusion splicing may be preferred, such as reflectance-sensitive applications. The FuseLite Connector eliminates the need for splice trays and is compatible with leading fusion splicers in the market.

In applications where fusion splicing is not required, Corning continues to recommend UniCam™ High-Performance Connectors, which eliminate the need for capital investments in equipment, or ongoing consumable purchases and installer training.

A Corning FuseLite Splice-On Holder is needed to secure the FuseLite connectors when using Fujikura/AFL fusion splicers.



  • Broad operating temperature (-40°C to +75°C)
  • Factory-polished end face
  • Fusion splice connectivity
  • Splice protection within connector body



Product Type: Field-Installable Connectors
Technology: Fuse-On
Keyed: No
Corning Logo: Yes
Packaging: Single Pack
Compatibility: SC
Fiber Category: 50 um MM (OM2/3/4)
Temperature Range: -40°C to 75°C exceeding EIA/TIA 568-B.3 (-40°F to 167°F exceeding EIA/TIA 568-B.3)

Additional Information

Design - Connector
Connector Type: SC
Ferrule Material: Composite
Housing Material: Composite
Housing Color: Aqua
Boot Color: Aqua

Optical Specifications - Connector
Insertion Loss, Typical: 0.10 dB
Insertion Loss, Maximum: 0.25 dB
Reflectance: ≤ -30 dB
Polish: PC

Optical Specifications - Connector
Free of hazardous substances according to RoHS 2002/95/EG
Installation Instructions
