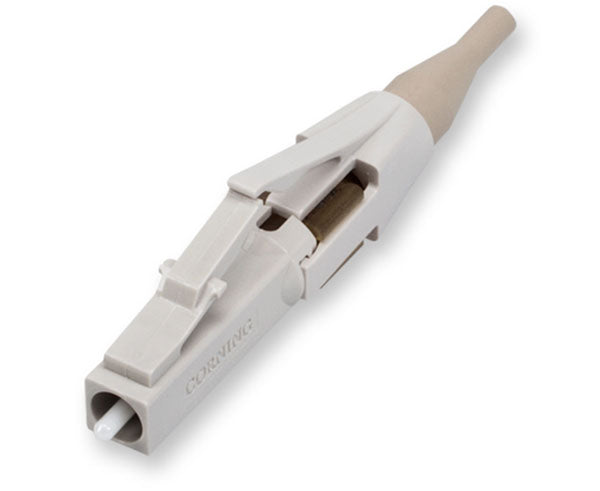

Corning UniCam Fiber Connector, Multimode, 62.5/125 OM1, LC, Single Pack

by Corning
$17.67
SKU: 95-000-99
Various lead times may apply to this product. Please contact us for more details.

Connectors are sold individually.


Description

UniCam® Pretium LC Connector, MM 62.5/125, Ceramic, Single Pack

Corning Cable Systems UniCam® High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision ceramic ferrule multi-mode connectors guarantee a 0.1 dB typical/0.5 dB maximum insertion loss per connector pair for exceptional network performance.

Installation of an LC, SC, or ST Compatible Connector can be accomplished in about 45 seconds with the UniCam® High-Performance Tool Kit. The lightweight, hand held installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time.

This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed.

Every UniCam® connector is assured to meet the published specification at the time of installation or Corning will replace it.

Features

  • Broad operating temperature (-40°C to +75°C)
  • Factory-polished end face
  • Fast termination (around 45 seconds) and no consumables
  • Guaranteed 0.1 dB typical/0.5 dB maximum insertion loss per connector pair

Specifications

Intermateability: FOCIS compliant with TIA/EIA 604-10A
Qualification: Passed EIA/TIA 568-B.3
Durability: 0.2 dB change, 500 rematings, FOTP-21
Tensile Strength: 10lb ≤ 0.2 dB change on jacketed cable exceeds;
0.5lb ≤ 0.2 dB change on 900um cable; FOTP-6
Operating Temperature: -40°C to +75°C, exceeding EIA/TIA 568-B.3
Connector Type: LC
Fiber: 62.5um Multimode
Insertion Loss (dB)*: 0.1 typical/0.5 maximum
Reflectance (dB)**: ≤-20
Housing Color Code: Beige
Boot Color***: Beige



* Insertion loss values given for installation using a UniCam® High-Performance Tool Kit. When installed using a UniCam® Standard Tool Kit, the insertion loss values are 0.3 dB typical and 0.75 dB maximum.
** Reflectance values for single-mode are for 18°C to 26°C.
*** LC connectors are sold with one 900um boot, one 2.0/1.6 boot, and one 2.9mm boot.
