Coupling Rigid IMC, 3-Piece, Zinc Die-Cast

$185.94
SKU: NPNB-200
Trade Size
Various lead times may apply to this product. Please contact us for more details.

Description

Coupling Rigid IMC, 3-Piece, Zinc Die-Cast

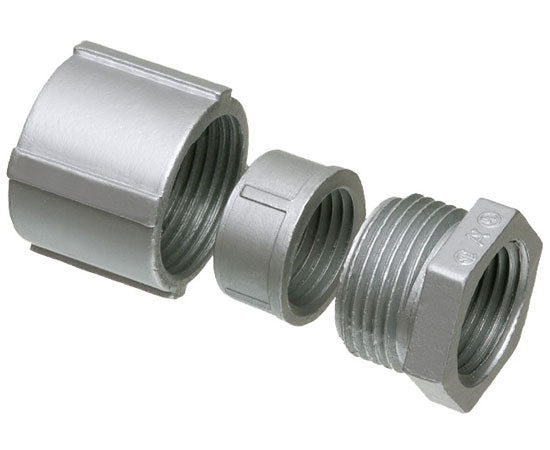

The Arlington 3-Piece Zinc die-cast Couplings are ideal for coupling together two conduits that cant be turned or moved. The 3 part system makes it easy to apply the two couplers to each end of the conduits and one to connect them together.

Specifications

Specifications

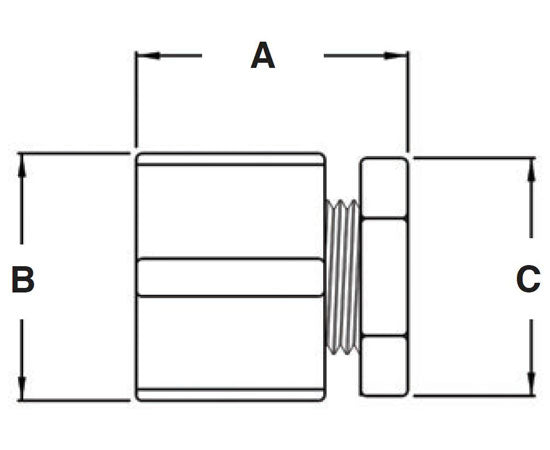

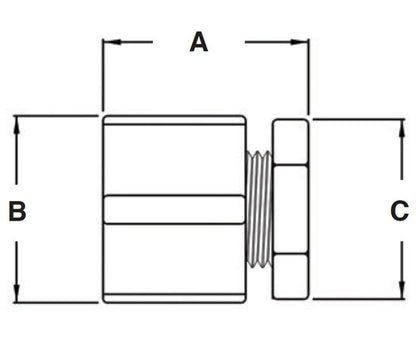

3-Piece Zinc die-cast Coupling Rigid IMC Diagram
Part Number Trade Size Dim A Dim B Dim C
NPNB-200 1/2" 16
10.25
13.25
NPNB-201 3/4" 10.875
3.9375 7.375
NPNB-202 1" 10.875
3.9375
7.375
NPNB-203 1-1/4" 11
3.9375
10.875
NPNB-204 1-1/2" 11
3.9375
10.875
NPNB-205 2" 11
7.875
10.875
NPNB-206 2-1/2" 10.875
7.875
7.375
NPNB-207 3" 11
3.9375
10.875
NPNB-208 3-1/2" 10.875
10.25
7.375
NPNB-209 4" 10.875
3.9375
7.375
NPNB-210 5" 7.3
3.9375
7.375
NPNB-211 6" 9.7
7.875
7.375

What's in the box?

What's in the box?200 - 50 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC

  • 200 - 50 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 201 - 50 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 202 - 25 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 203 - 25 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 204 - 25 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 205 - 20 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 206 - 10 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 207 - 5 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 208 - 5 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 209 - 2 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 210 - 1 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
  • 211 - 1 Pack -  3-Piece Zinc die-cast Coupling Rigid IMC
