Description

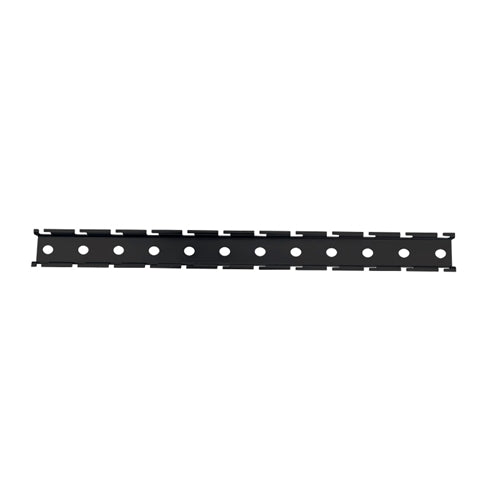

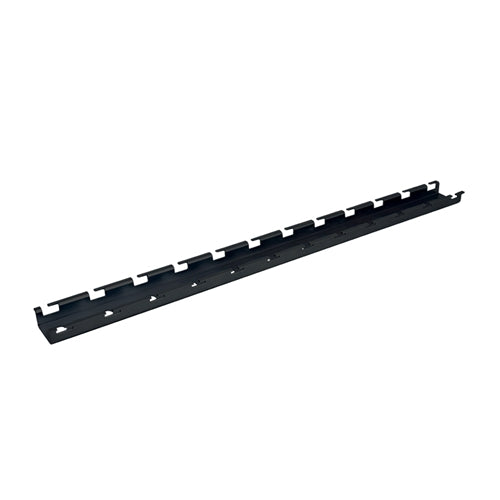

Cross Bars

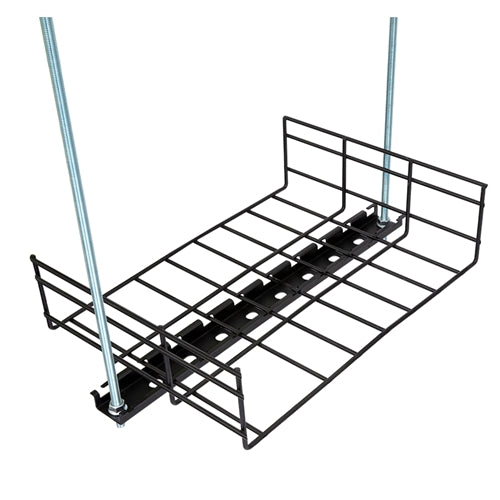

Cross bars can be suspended from the ceiling to provide overhead support for basket tray runs.
Features
Features
- Compatible with threaded rod up to 3/8” diameter (not included)
- Secures basket tray without screws or clamps
- For use with 4” (100mm) to 24” (600mm) wide basket tray
- Black powder coat finish
- Sold individually
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| MATERIAL | HIGH-STRENGTH CARBON STEEL | |
| FINISH | BLACK POWDER COAT | |
| DIMENSIONS (W X H) | 2" X 0.8" | |
| COMPLIANCE & STANDARDS | IEC 61537 | |
| DESCRIPTION | DIMENSION (L x W x H) | WEIGHT |
| Cross Bar for 4"W Tray | 7.1" x 2" x 0.8" | 0.46 lbs |
| Cross Bar for 8"W Tray | 11" X 2" X 0.8" | 0.77 lbs |
| Cross Bar for 12"W Tray | 15" X 2" X 0.8" | 1.1 lbs |
| Cross Bar for 16"W Tray | 18.9" X 2" X 0.8" | 1.43 lbs |
| Cross Bar for 20"W Tray | 22.8" X 2" X 0.8" | 1.76 lbs |
| Cross Bar for 24"W Tray | 26.8" X 2" X 0.8" | 2.09 lbs |
What’s In The Box
What’s In The Box
- Qty 1 - Cross Bar
