Description

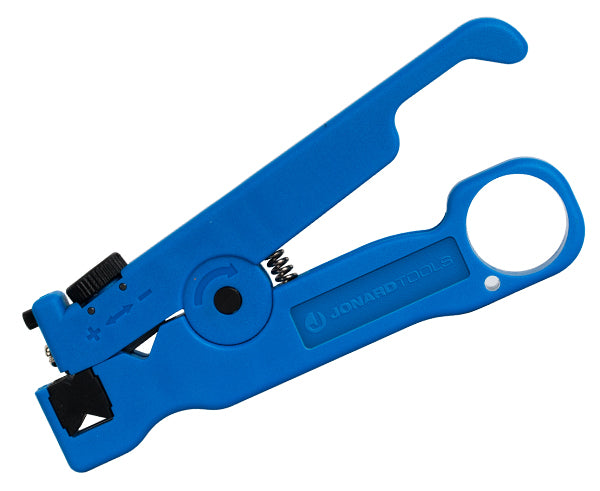

Cable Slitter & Ring Tool, 0.05-0.3" OD
Designed to slit and ring fiber optic cables from 1.2 mm to 7.5 mm (0.05” to 0.3”) in diameter, this cable slit and ring tool is perfect for slitting and ringing cables, buffer tubes, and jackets on fiber optic cables.
Features
Features
- Blade depth is easily adjustable
- Spring-loaded design for easy operation
- V block is reversible to hold smaller cables
- Works with 1.2-3mm OD and 3-7.5mm OD
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| Cut Type | Ring, Slit |
| Cable Type | Jacket |
| Cable Diameter | 0.05” - 0.3” (1.2 mm - 7.5 mm) |
| PHYSICAL CHARACTERISTICS | |
| Product Main Color | Blue |
| Dimensions | 4.63 in x 2.13 in x 0.75 in (11.75 cm x 5.4 cm x 1.91 cm) |
| Weight | 0.01 lb (3.178 g) |
| IDENTIFICATION | |
| Model Number | CSR-1575 |
| UPC # | 811490016552 |
Additional Information
Jonard Tools CSR-1575 Call Out Video |
Jonard Tools CSR-1575 - Cable Slit & Ring Tool |
What's In The Box
What's In The Box
- Qty 1 - Cable Slitter & Ring Tool, 0.05-0.3" OD
