CS Current Sensor Series Switch Sets

by GRI
$108.80
SKU: CS-1
Series
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

CS Current Sensor Series Switch Sets

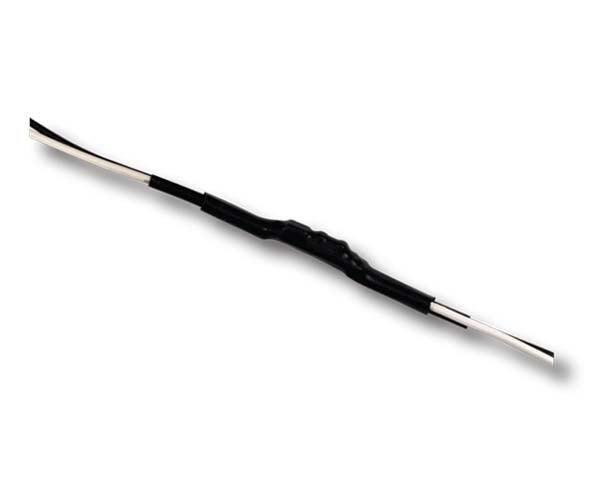

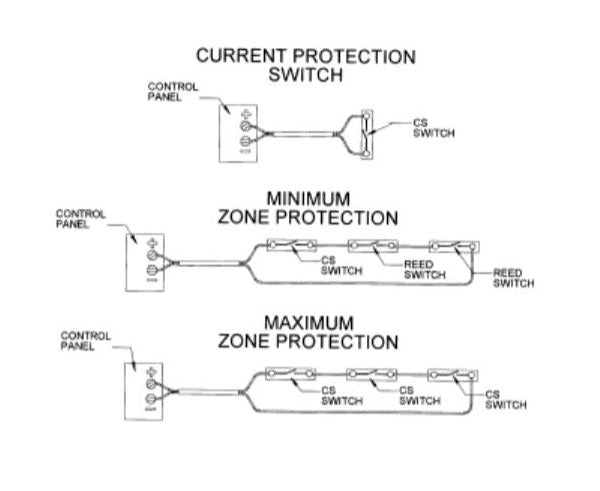

The new sensors can be purchased with the protection built directly into your reed switch or you may prefer the CS-1 heat shrink version, which you connect in-line with your switches.

Two things cause switch failure:

1) Excessive Current: Switch protected from excessive current by Quick Blow fuse. Maximum reed switch rating is .5 amp. = 500 mA switching. If current exceeds .5 amp. fuse will blow. In Fail Safe condition, switch must be replaced.

2) High Voltage: SIDActor threshold 60 AC/DC volts. If voltage exceeds 60 volts, SIDActor will clamp down, channeling any voltage above 60 directly to ground but will not cause switch device to fail or mis-operate and will continue to work.

Features

Features

  • Fails Safe With Excessive Current
  • Micro-Weld Switch Protection
  • Channels Voltage Above 60 V To Ground

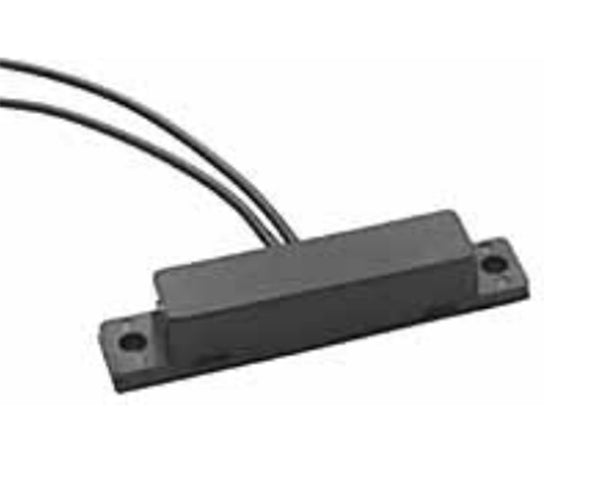

  • Available In Recessed & Surface Styles
  • Plus Heat Shrink For In-Line Installations
  • Made in the U.S.A.

Specifications

Specifications


What's In The Box

What's In The Box

  • 1 x Heat Shrink
