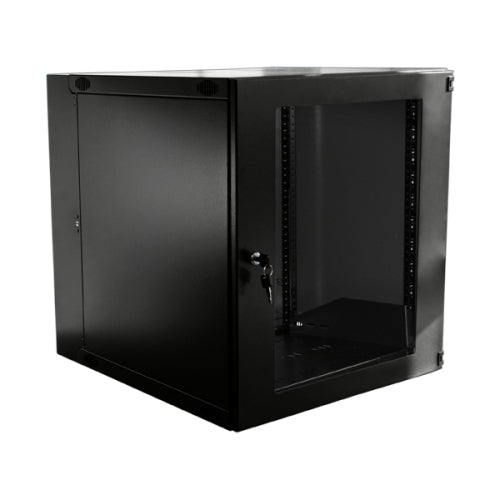

Double Hinge Swing Out Wall Mount Cabinets

SKU: WR-8378-9U
Various lead times may apply to this product. Please contact us for more details.

Item ships unassembled


Double Hinge Swing Out Wall Mount Cabinets

The Double Hinge Swing Out Wall Mount Cabinets are a great solution for networking, security, and AV installations where access to the back of the equipment is important. Compatible with all standard 19-inch EIA equipment, these cabinets feature a swing-out design that also allows the rear section to completely disconnect from the cabinet, making installation a breeze.

Constructed of cold rolled, powder-coated 19-gauge steel, these swing out wall mount cabinets have a maximum load capacity of 100 pounds and are available in 9U, 12U, and 15U racking heights. Ships unassembled and flat packed for easy on-site handling.



  • Cable entry on top, bottom and back
  • Lace points to reduce cable clutter
  • Lockable acrylic front door is removable and reversible
  • Lockable rear door swings out 90° from wall for accessibility
Security & Protection
  • Locking front and rear doors prevent unauthorized access to equipment
  • Two sets of rails provide a stable mounting structure
  • Door are grounded to the cabinet frame
  • Multiple cable entry options provide greater flexibility during installation
  • Mounting rails are adjustable to match a variety of equipment sizes
  • Doors are removable for convenient access to equipment
  • Available in three sizes to fit in a variety of environments where space is limited
  • Top and bottom panel vents to optimize cooling of equipment
  • Adaptable for use in network, security and audio/video installations



Product Manual




Product Type

Double Hinge Swing Out Wall Mount Cabinet

Frame Material

Cold Rolled Steel


Black Powder Coat

Rack Unit Quantity

9U, 12U, or 15U

Front Door

Removable, Reversible & Lockable Steel Frame With

Full Panel Acrylic Window, Opens Full 180°

Rear Door

Swings Out From Wall 90°From Either Left or Right

Corner, 12” x 12” Removable Panel, Wall Mounting Keyholes Spaced 16” Apart, Multiple Lace Points

Side Panels

Solid, Built Into Frame

Top Panel

Ventilation Holes For Optional Fans, (6) Knock-Out

Cable Entry Holes Located at Back: (2) ¾”,(2) 1” and (2) 2” Knock-Outs

Bottom Panel

(6) Knock-Out Cable Entry Holes Located at Back:
(4) 3” and (2) 1” Knock-Outs

Equipment Support

Two Pairs of Mounting Rails, Adjustable
Depth Rails (3” Range), 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing, 10-32 Threaded Holes


14 AWG Ground Wire Connects Doors & Side Panels
To Cabinet Frame

Static Loading Capacity

100 lbs

Compliance & Standards

ANSI/EIA RS-310D, IEC60297-2,
DIN41194; Part 1, DIN41494; Part 7

Technical Illustration

Technical Illustration

What’s In The Box

What’s In The Box

  • Qty 1  - Package of Fixed Wall Mount Cabinet
  • Qty 48 - 10-32 Mounting Screws & Washers
  • Qty 2 -  Grounding Kits
  • Qty 1 -  Paper Mounting Template
  • Qty 2 -  Keys
