This product has a minimum order quantity of 53.
Description
Description

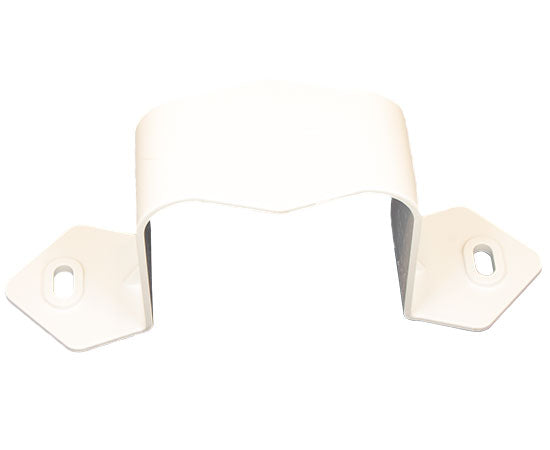

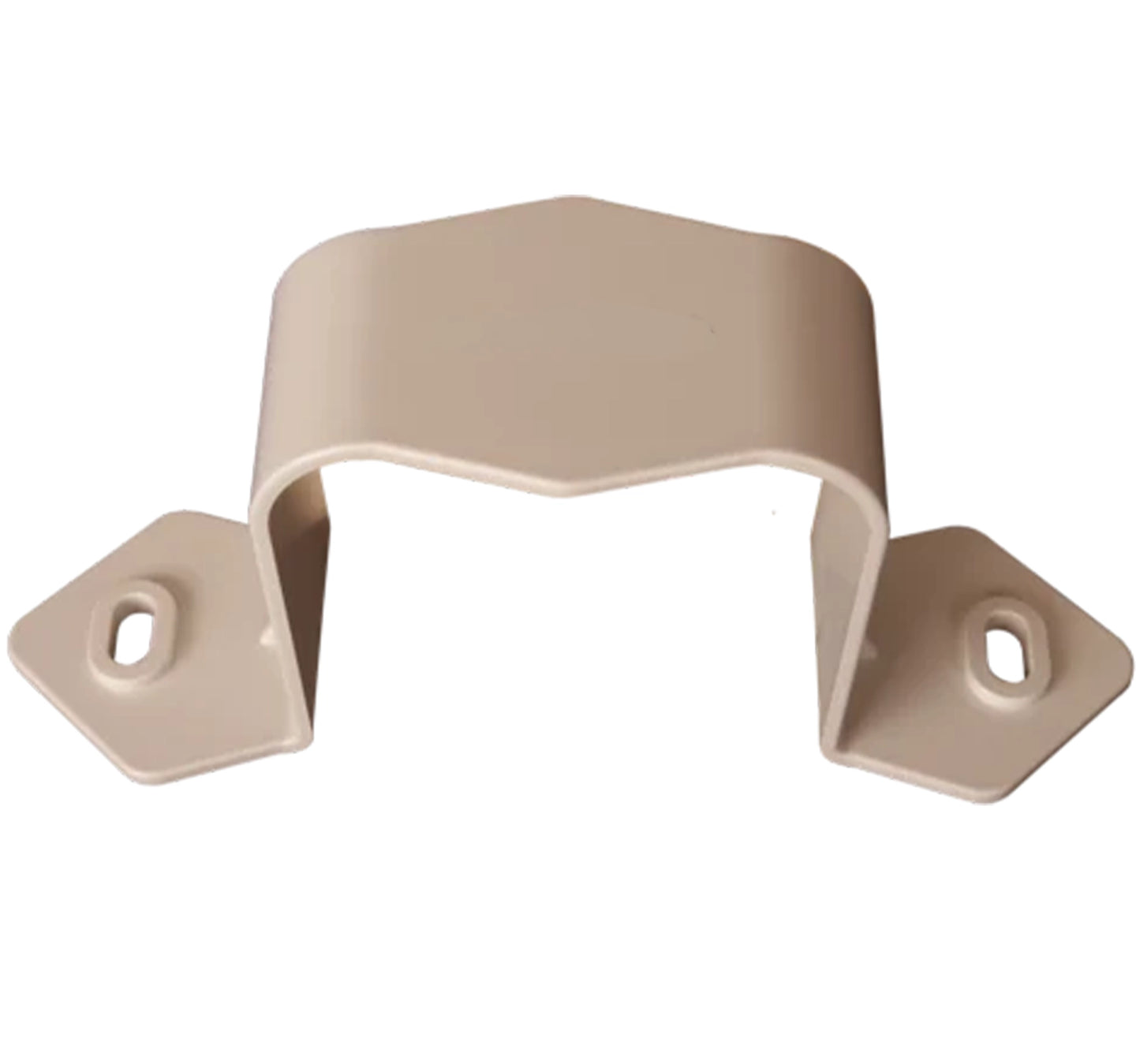

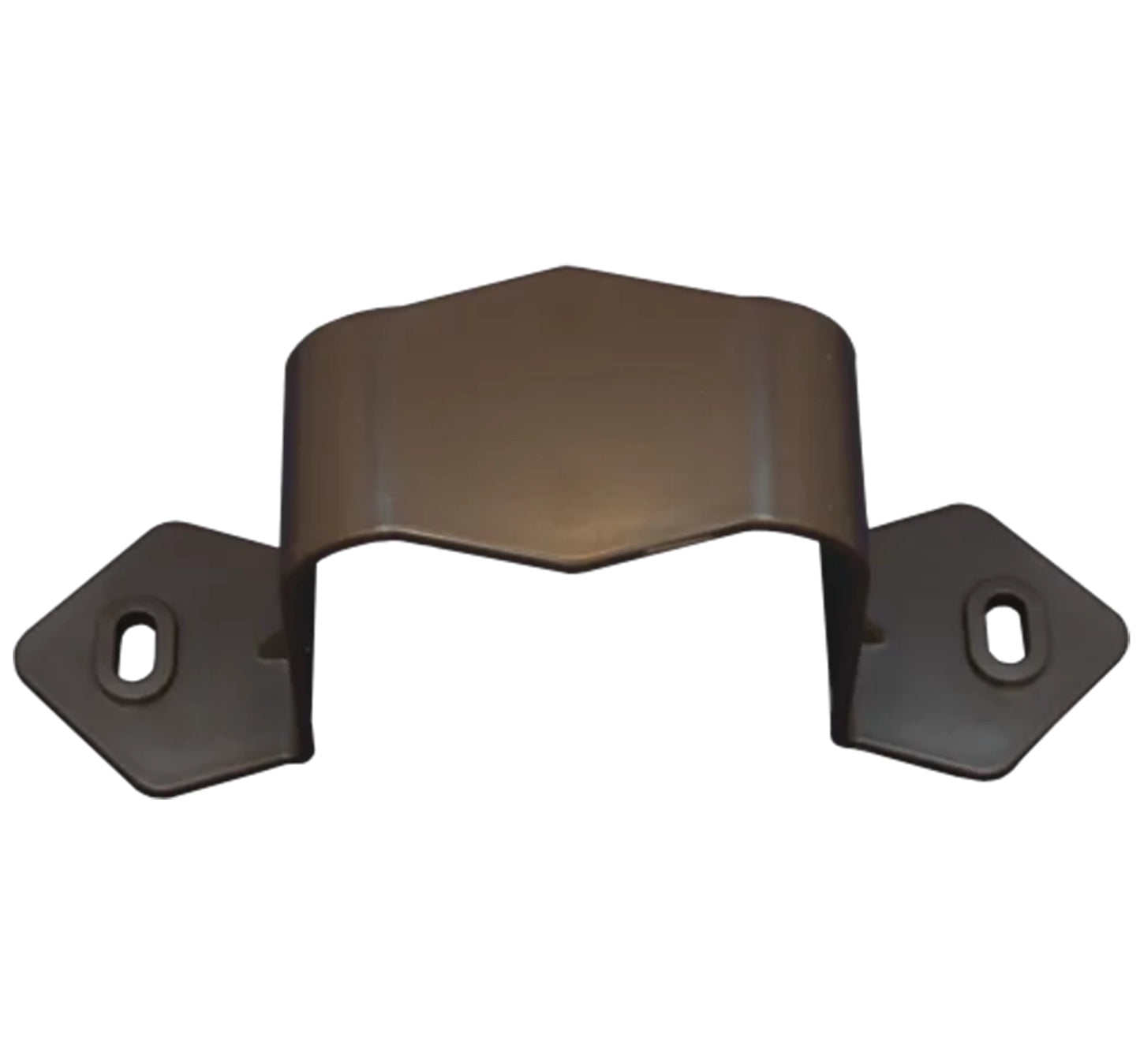

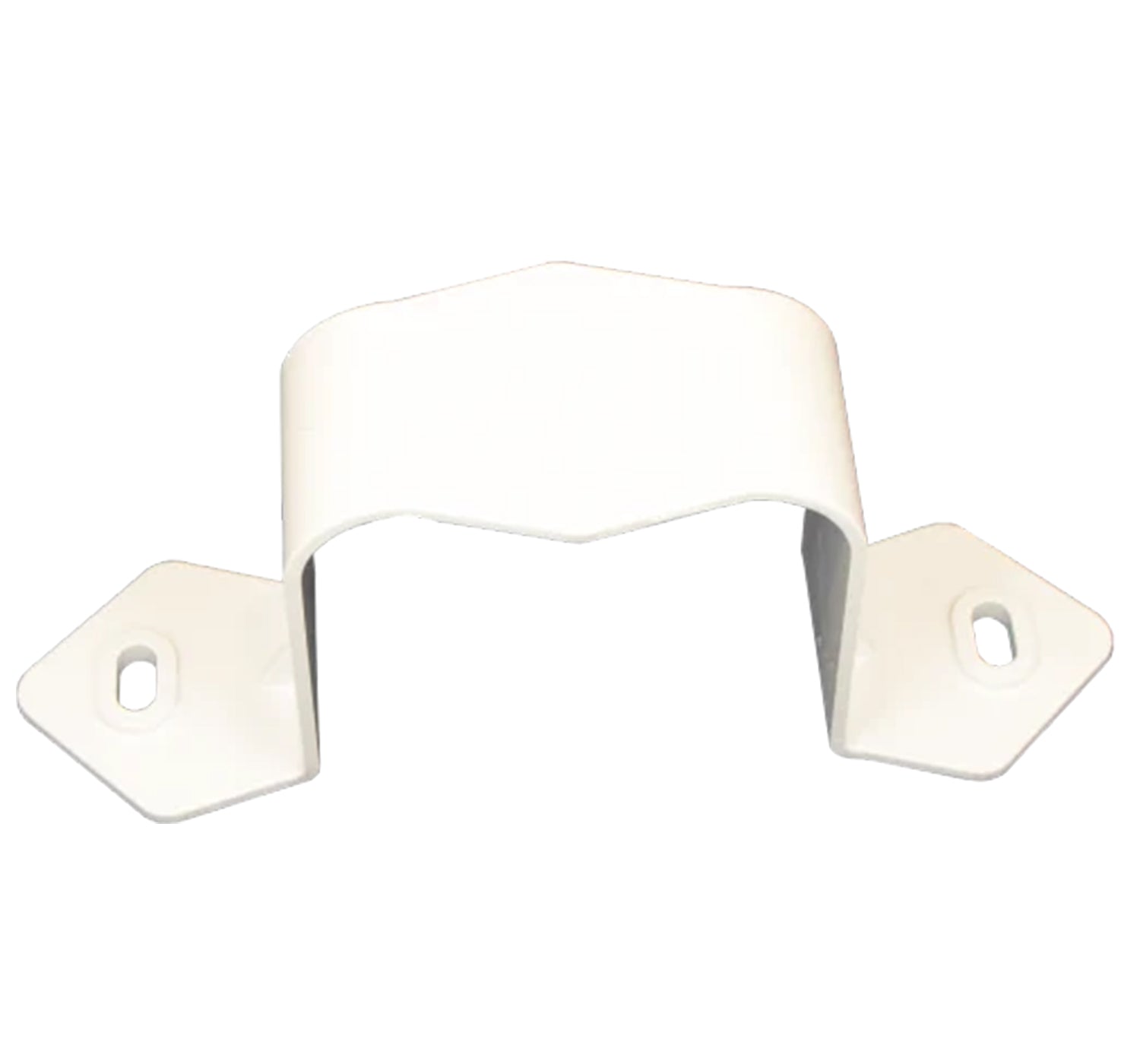

Downspout Wall Strap
Our Downspout Wall Straps are used to mount downspout raceway which holds low voltage data, voice, and fiber optic raceway.
Product Quality
This product is manufactured to provide you with exceptional quality, including chemical resistance, impact resistance, and it adheres to standards and regulations.
Durability & Strength
These Downspout Wall Straps are manufactured using an injection grade resin. This product is easily painted with latex paint.
Features
Features
- Impact Resistance - 2.5ft. lbs. referencing TR1334 section 5.4
- Impact Resistance - 2.5ft. lbs. referencing TR1334 section 5.4 Chemical Resistance - Retains a minimum of 50% of tensile strength after 30 day exposure to 3% H2SO4, .2N NaOH, NH3, 90% Alcohol, Kerosene, 10% lgepal
- Crush Resistance - 300 lbs. per GR3126 Requirement
- Operating Temperature of -18ºC to 58ºC (0ºF to 136ºF)
Specifications
Specifications
Product Dimensions
| Material | Raceway: Special Purpose Profile Extrusion Alloy Rigid PolyVinyl Chloride Fittings: Impact Modified Flame Retardant Polybutylene Terephthalate |
|---|---|
| Color | White, Brown, Beige |
| Operating Temp. Range: | -18ºC to 58ºC (0ºF to 136ºF |
| Installation Temp. Range: | -18ºC to 45ºC (0ºF to 113ºF) |
| Impact Resistance: | 2.5ft. lbs. referencing TR1334 section 5.4 |
| Chemical Resistance: | Retains a minimum of 50% of tensile strength after 30 day exposure to 3% H2SO4, .2N NaOH, NH3, 90% Alcohol, Kerosene, 10% Igepal. |
| Fungus Resistance: | ASTM G21 Zero Rating Per GR 3126 Requirement |
| Crush Resistance: | 300 lbs. per GR3126 Requirement |
| Warranty: | 1 Year Defects In Workmanship / 10 Year Environmental |
What's in the Box
What's in the Box
- Qty 1 - Downspout Wall Strap
