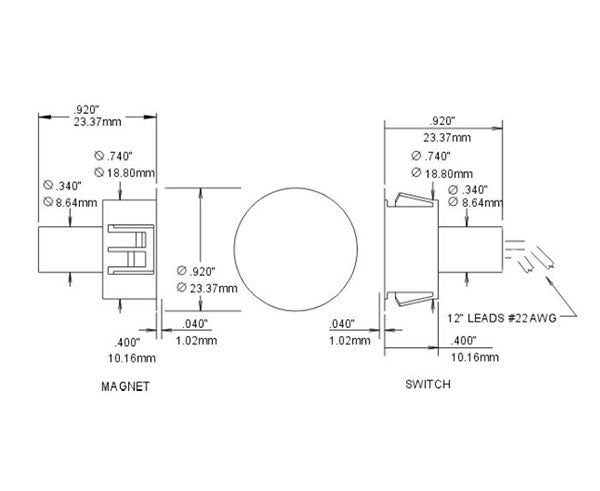

Dual Function Switch, 2 A Form Reeds, 3/4" Recessed Steel Door, 4 C Jacketed Cable (UL 10C Fire Rated)

by GRI
$6.62
SKU: NPNB-AA180
Gap
Various lead times may apply to this product. Please contact us for more details.
UL Listed

Description

2 A Form Reeds Switch, 3/4" Recessed Steel Door, 4 C Jacketed Cable (UL 10C Fire Rated)

This AA switch can be used in numerous security applications where you need to isolate input from two different pieces of equipment that require a signal from the same source. The “Combo” Series switches are dual function reed contacts that monitor two separate functions.

By combining two reeds in one package, two “A” forms in this case, we offer the installer savings in labor cost. Choose between a standard or wide gap version.

Features

Features

  • Recessed Steel Door
  • 12" 4 C Jacketed Cable
  • 2 A Form Reeds
  • Standard Or Wide Gap
  • Security to Access Control
  • Security to Relays
  • Access to VCR for CCTV Timers
  • Security to Recorders
  • Security to Pool Alarm
  • UL 10 C Fire Rated
  • Made In U.S.A.

Specifications

Technical Specs: Circuit A


Loop Type:   Closed
Electrical Config:   N/O
Reed Form:   A
Maximum Intitial Contact Resistance (Ω):   .150
Maximum Contact Rating (W):   10
Maximum Switching Voltage (VDC):   160
Maximum Switching Current (A):   .400
Wire Code AA 1st (A) Red/Black
  2nd (A) Green/White

What's In The Box

What's In The Box

  • 1 x Dual Function Switch
