Description
Dual-Head Cable Slitting Pliers, for Ribbon Fiber and Strength Member Access

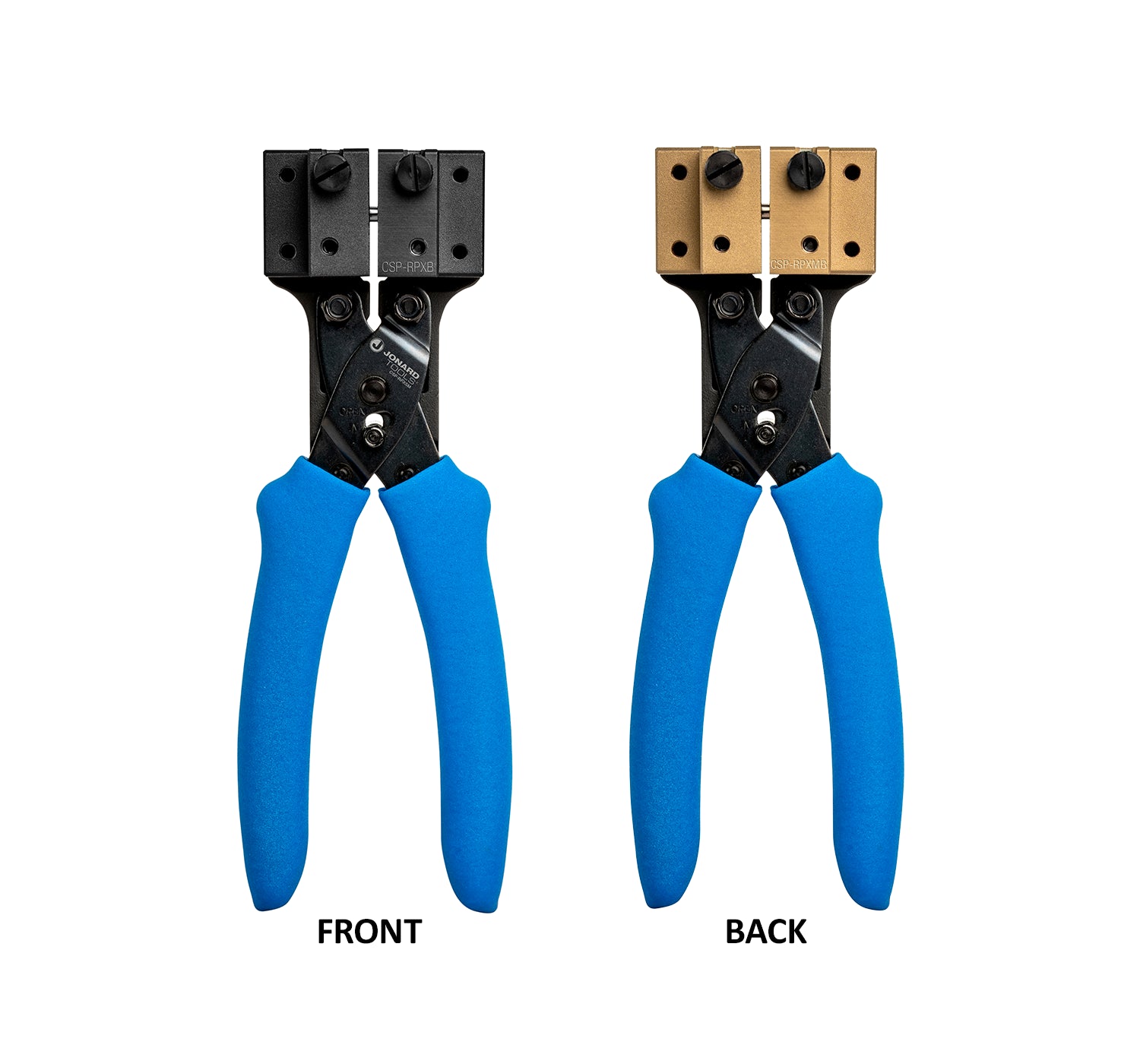

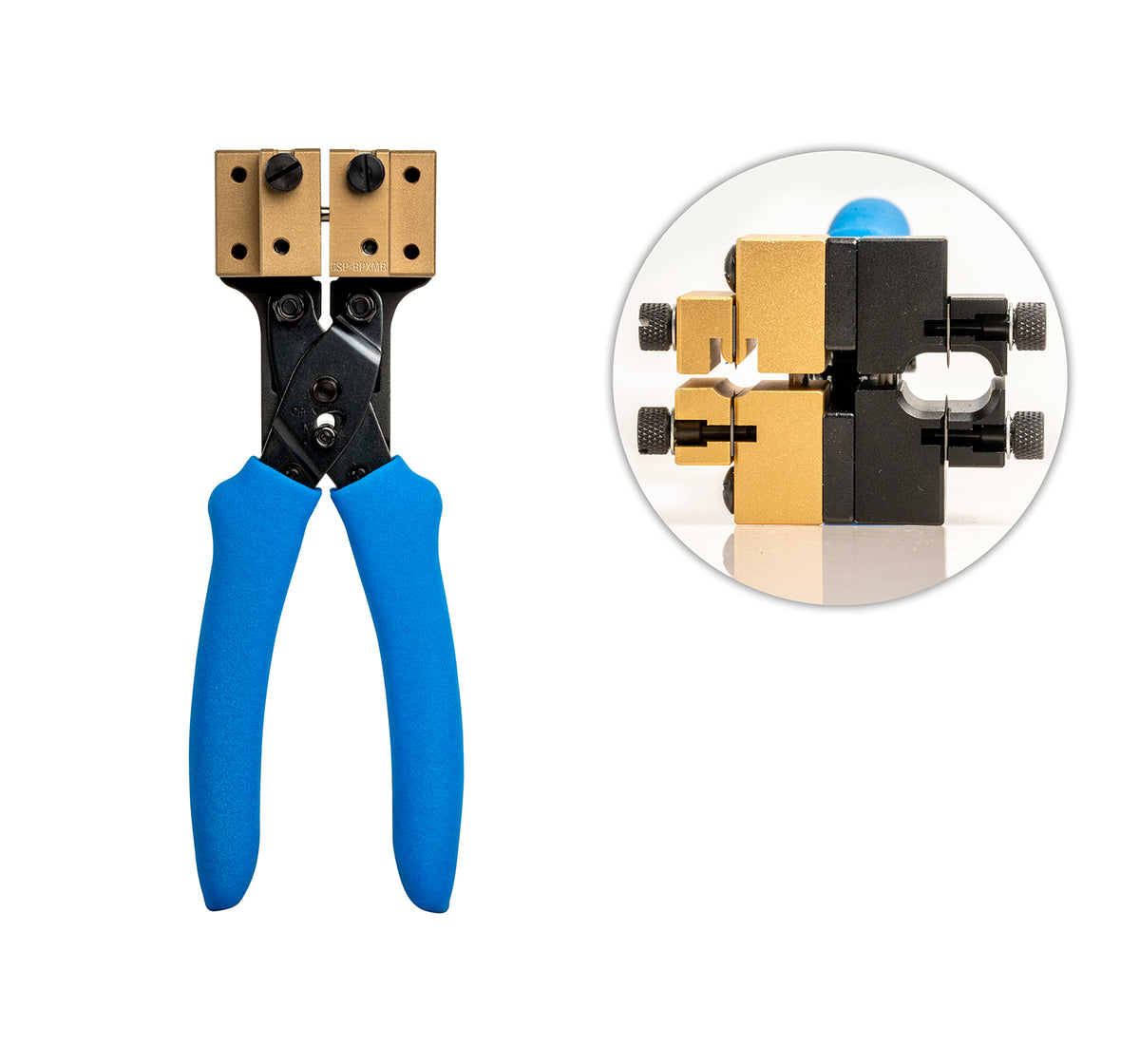

The CSP-RPXSM combines two precision-engineered blade blocks into a single double-head tool, providing a complete solution for RPX® gel-free ribbon cables, including both Dielectric and Toneable models. This design allows technicians to safely and efficiently expose internal ribbon fiber, strength membrane and toner wire.
Features
Features

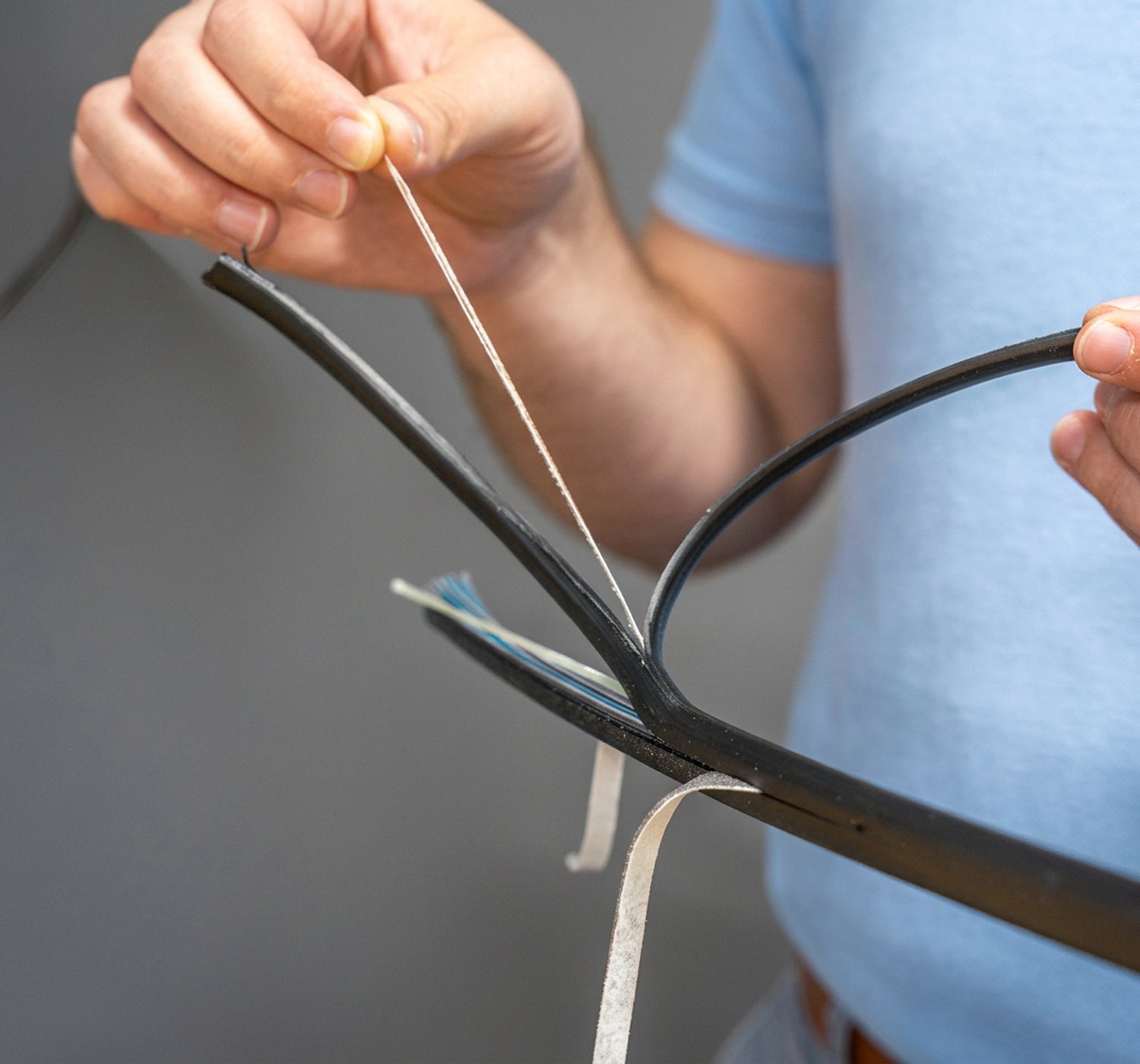

- CSP-RPXB precisely slits the Polyethylene (PE) outer jacket exposing the internal fibbon fibers for mid-span or end access without damage.

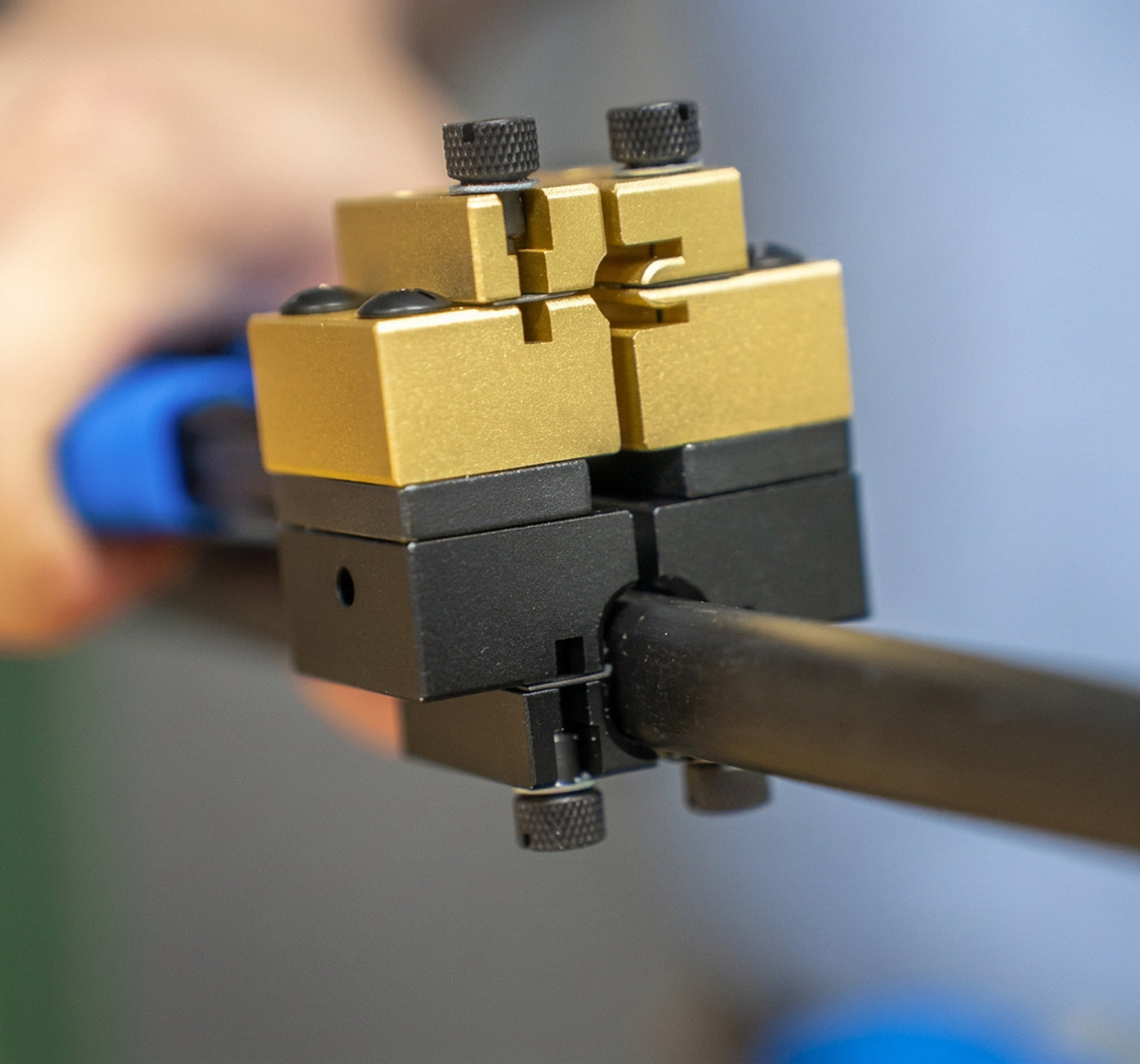

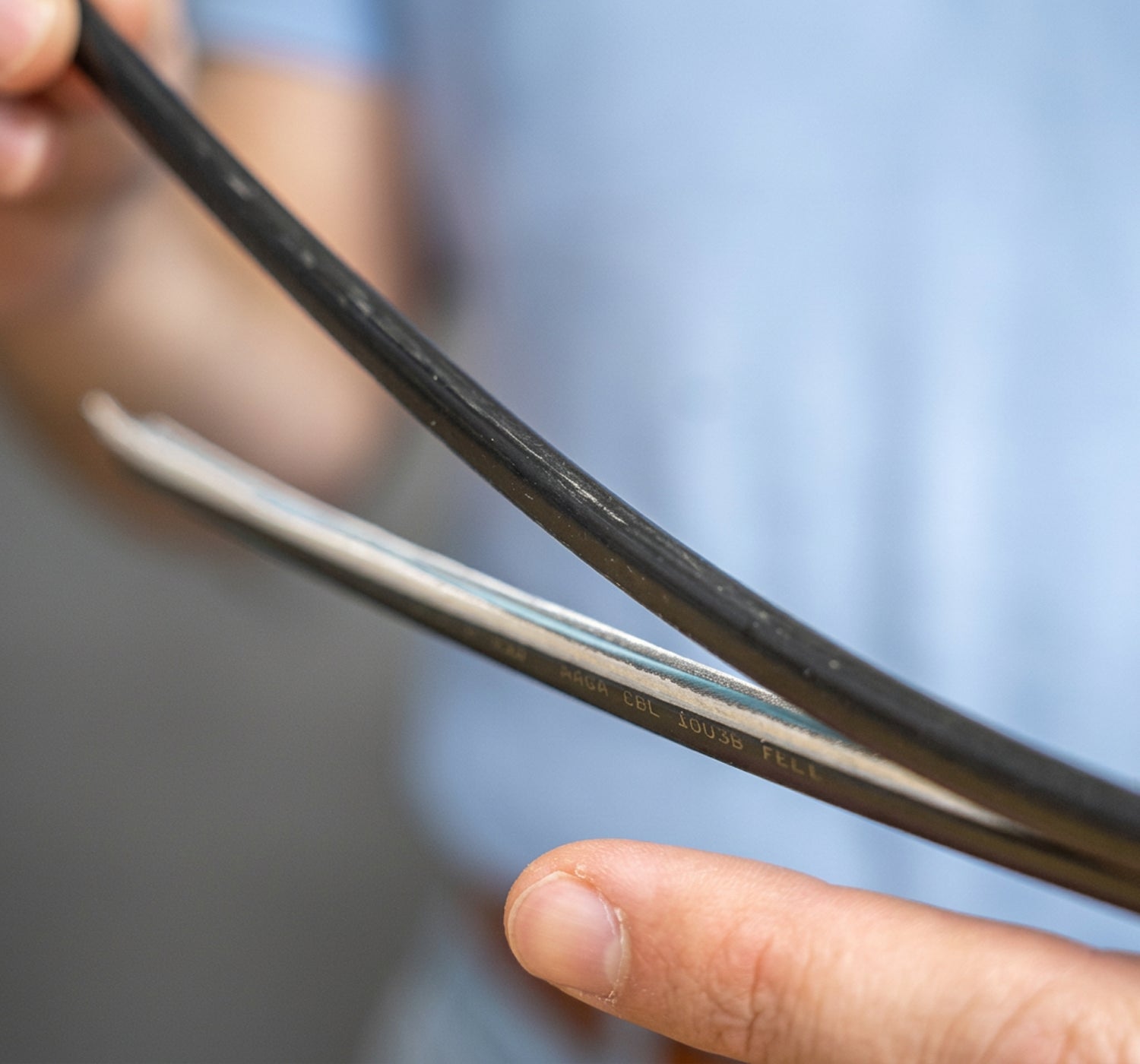

- CSP-RPXMB slits jacket of the strength member and toner wire for easy anchoring capabilities.
- Blades are fixed to prevent accidental fiber damage and require no adjustment.
- Each blade is secured with set screws for fast, tool-free replacement.

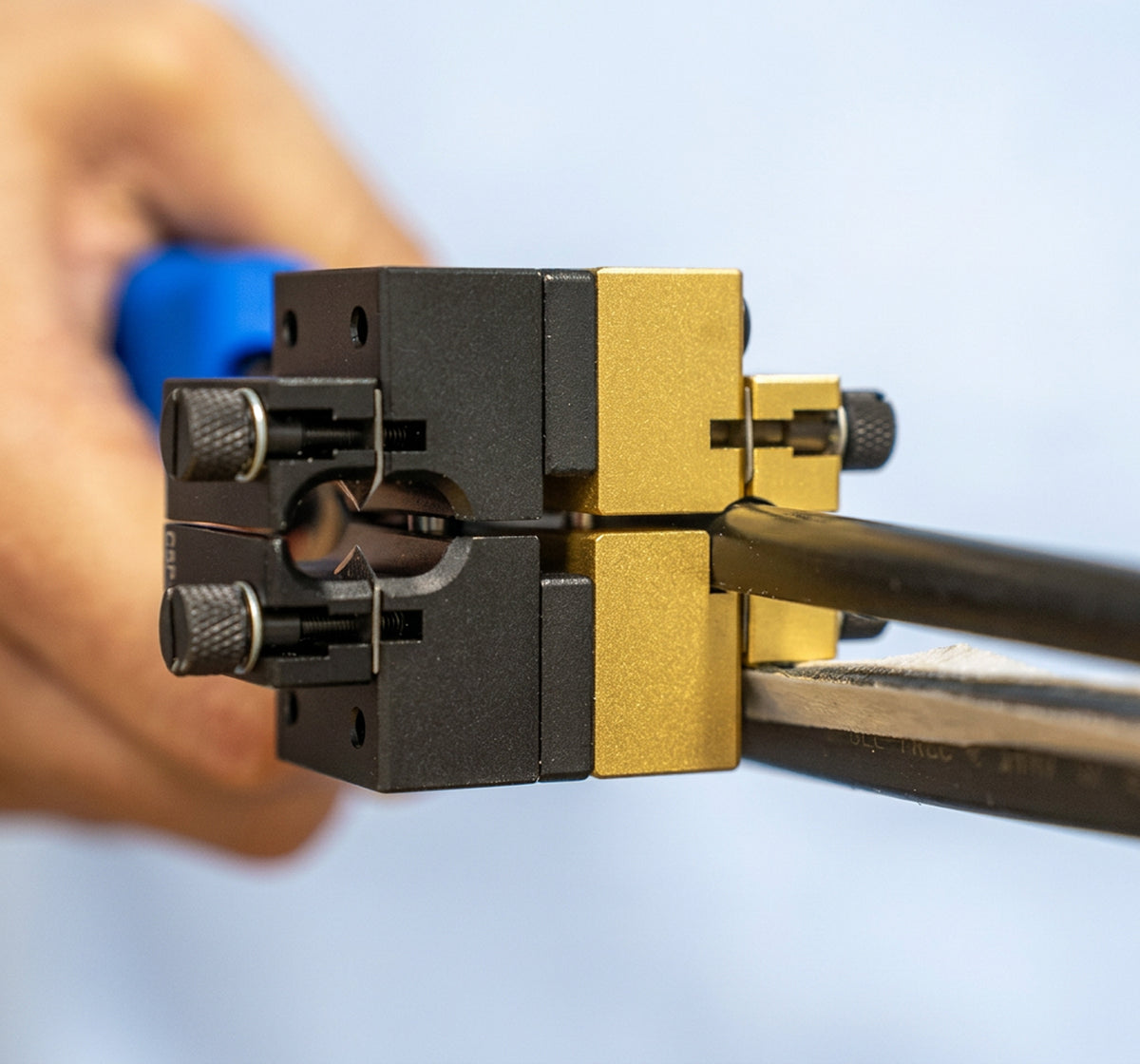

- Blade blocks are secured with Phillips-head machine screws, providing a secure fit while allowing easy removal, replacement, or swapping of blocks.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CABLE TYPE | RPX GEL-FREE CABLES: DIELECTRIC OR TONEABLE |
| CABLE DIMENSIONS | HEIGHT: 0.30” - 0.34” (7.62 - 8.64MM) WIDTH: 0.59” - 0.63” (14.99 - 16MM) |
| MESSENGER/TONER DIMENSIONS | 20 - 24 AWG (0.205–0.518 MM²) |
| JACKET MATERIAL | POLYETHYLENE (PE) |
| BLADE DEPTH | RPXB (OUTER JACKET): 2.9MM RPXMB (STRENGTH MEMBRANE JACKET): 0.2MM |
| HANDLE LENGTH | 4.25” (110MM) |
| DIMENSIONS | N/A |
| WEIGHT | N/A |
| UPC # | 810132439377 |
Additional Information
| Product Videos | |
|---|---|
CSP-RPXSM DUAL-HEAD CABLE SLITTING PLIERS |
What's In The Box
What's In The Box
- Qty 1 - Dual-Head Cable Slitting Pliers, for Ribbon Fiber and Strength Member Access
