Description

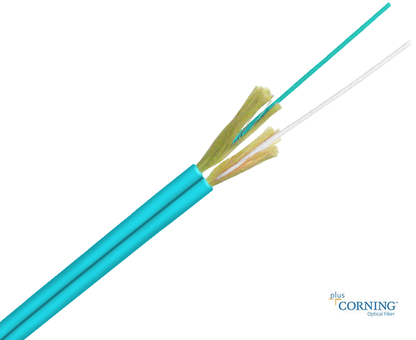

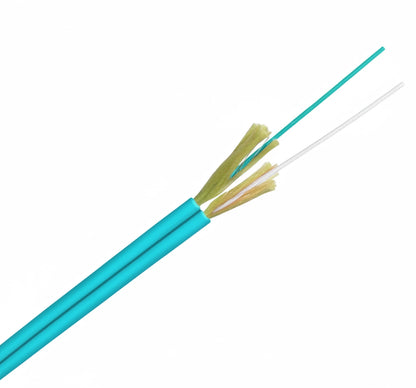

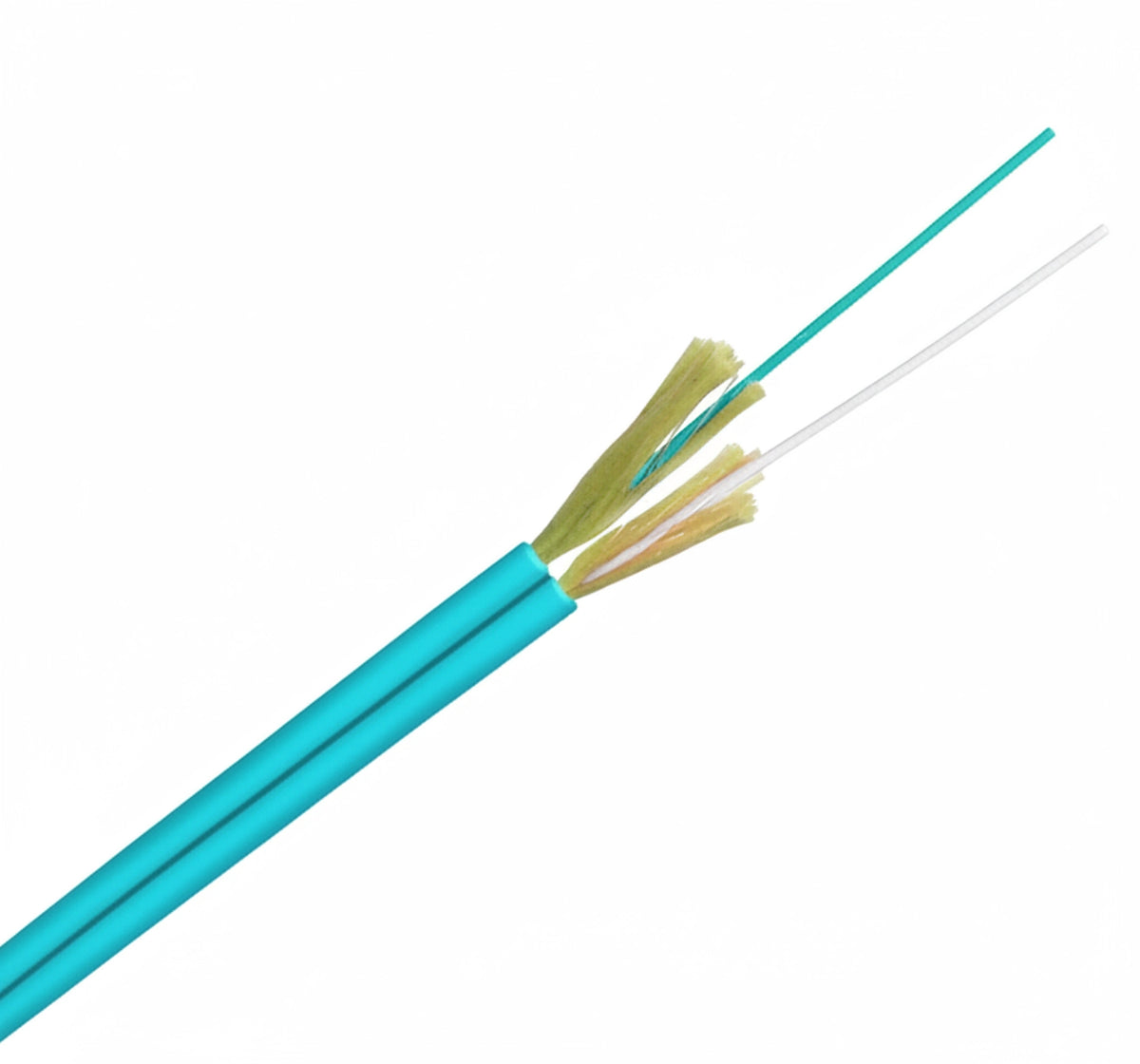

Duplex Plenum, OFNP, OM4, Multimode Fiber Cable

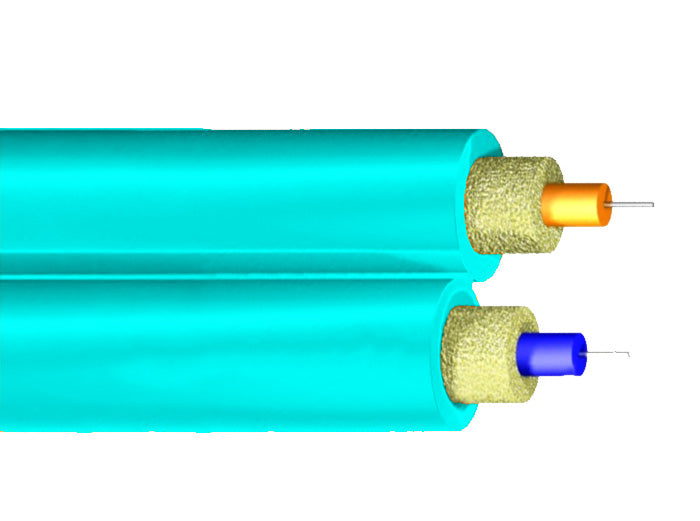

This plenum fiber optic cable consists of a tight-buffered optical fiber, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.
This plenum fiber optic cable is available in 12 TIA-598 standard colors or special order colors. UL Listed OFNP cables are available, and unrated cables may be supplied to accommodate special needs. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers. Custom print may also be accommodated.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- 3mm, 2mm, 1.8mm, 1.6mm and 1.2mm OD sizes to meet all patch cord applications (all cable sizes are tight buffered fiber, except the 1.2mm cable is bare colored fiber).
- Passes the NFPA 262 flame rating
Applications
- Patch cord production
- Data centers
- Indoor point-to-point connections
Specifications
| PRODUCT SPECIFICATIONS (OM4 MULTIMODE) | |
|---|---|
| CABLE CHARACTERISTICS | |
| Fiber Category | 50/125 OM4 Multimode |
| Fiber Count | 2 |
| Outer Jacket Material | Flame Retardant PVC (Plenum) |
| Outer Jacket Color | Available in 12 TIA/EIA standard colors |
| Strength Member | Aramid Yarn |
| Tight Buffer Material | Flame Retardant PVC |
| Tight Buffer Color | White & Aqua |
| PHYSICAL CHARACTERISTICS | |
| Nominal Outer Diameter (mm) | 2.95 x 6.05 / 1.95 x 4.05 / 1.80 x 3.75 / 1.60 x 3.35 / 1.20 x 2.45 |
| Weight | 40 / 28 / 20 / 14 / 11 lbs/km |
| Minimum Bend Radius | 7.5 mm (Bend Insensitive MM) |
| OPTICAL SPECIFICATIONS (OM4) | |
| Core Size | 50 µm |
| Wavelength | 850 / 1300 nm |
| Max. Attenuation | 3.0 / 1.0 dB/km |
| Link Length | 550 m (600 m) @ 10 Gb/s (850 nm) |
| Bandwidth (EMB) | 4,700 MHz·km @ 850 nm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +70°C |
Additional Information
Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100 Mbps - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core, typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet/914.4 meters, multiple paths of light can cause signal distortion at the receiving end, resulting in unclear and incomplete data transmission, so designers now call for single-mode fiber in new applications using Gigabit and beyond.
What's in the Box
What's in the Box
- Qty 1 - Duplex, Multimode Plenum Fiber Optic Cable, length as ordered
