Description
Easy Splice™ Direct Burial/Submersible Splice Kits with Heat Shrink
Engineered for fast, reliable cable repairs, Easy‑Splice™ kits deliver a watertight, fully insulated splice for copper, aluminum, and UF cables. Each kit pairs a precision‑fit mechanical connector with heavy‑wall heat shrink tubing and sealant, ensuring long‑lasting protection against moisture, corrosion, and mechanical stress.
Features
Features
Copper Butt Splice Kits (SKCB)
- Mechanical copper butt splice and a heavy wall heat shrink tubing to create a fully insulated splice for copper conductors only.
UF Cable Splice Kit (SKAB)
- For simplified splicing of UF cable designed with heavy wall heat shrink with sealant.
- This kit will accommodate 14/3 through 8/3 with ground UF cable and create a direct burial splice. Contains one four-position connector.

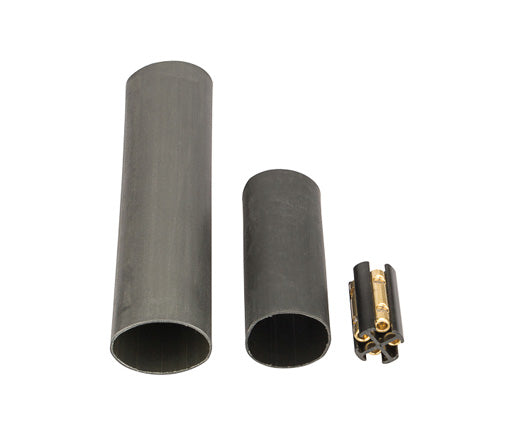

Dual Rated Butt Splice Kits (SKDB)
- Mechanical dual rated splice and matched heavy wall heat shrink tubing to create an insulated splice for copper and/or aluminum cables.

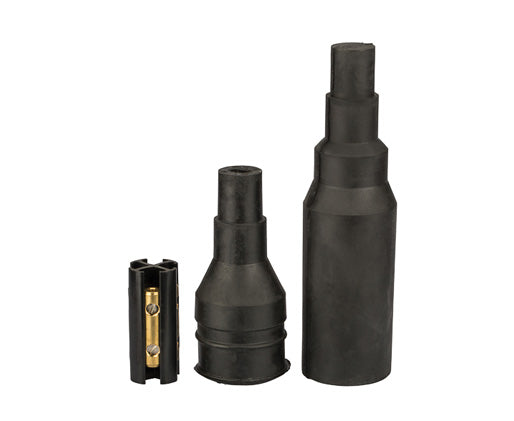

Self Sealing Uf Splice (SKSS)
- No Tools Required: Uses a push-on "interference fit" cover—no heat guns, torches, or tape needed.
- Waterproof & Submersible: Designed for direct burial and wet locations; fully protects against water and soil.
- Easy to Reuse: The re-enterable design allows you to open and reseal the splice for maintenance or testing.
- Fast Install: Comes as a complete kit with the connector and silicone lubricant for a quick, one-step setup.
- Built for UF Cable: Perfectly fits 3-conductor 14 to 10 AWG underground feeder cables.

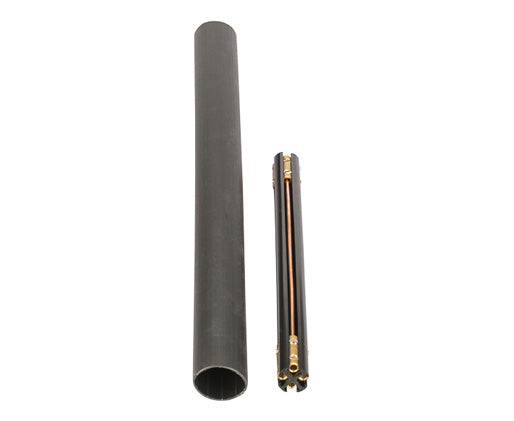

UF Stretcher Kit (SKUF)
- Eliminates the need for using two connectors and a short piece of cable when repairing damaged UF cable.
- Includes one 11.5” connector that will accommodate 14/3 without GRD minimum and 8/3 with GRD maximum. 600 Volt, 105°C.
- Utilizes heavy wall shrink with sealant for a quick and reliable repair.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| UL LISTED | YES |
| TEMPERATURE RATING | 105°C, 600V MAX |
| PART NUMBER | RANGE |
|---|---|

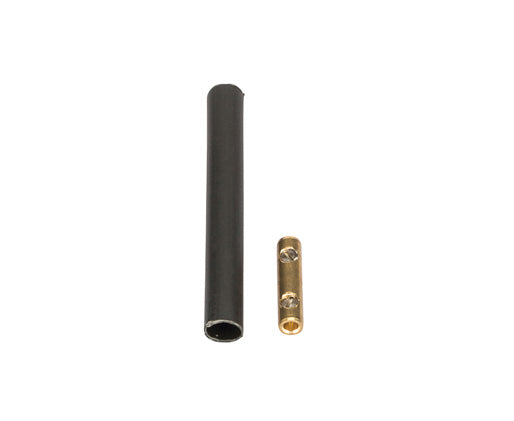

| NPNB-SKCB-8 | 14 TO 8 AWG |

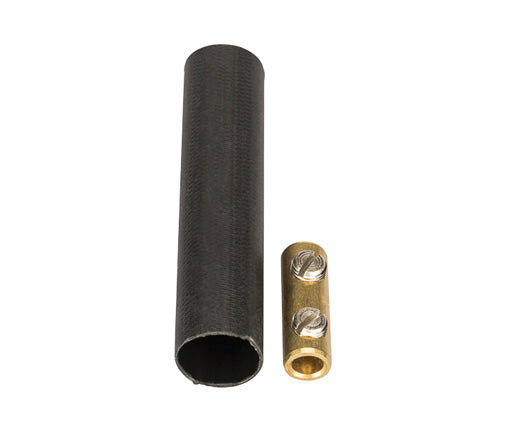

| NPNB-SKCB-2 | 8 TO 2 AWG |

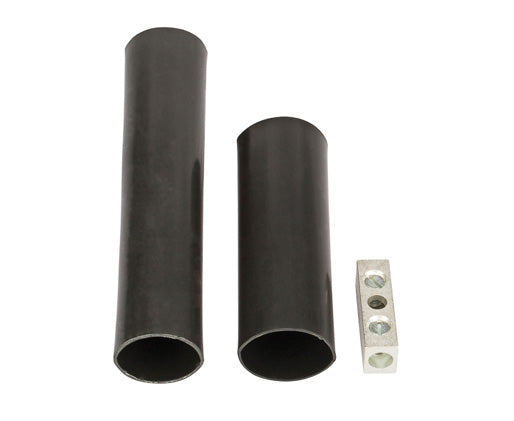

| NPNB-SKAB-2 | 8 TO 2 AWG |

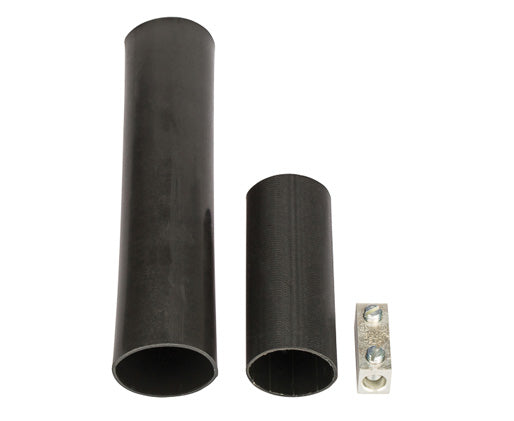

| NPNB-SKAB-0 | 6 TO 1/0 AWG |

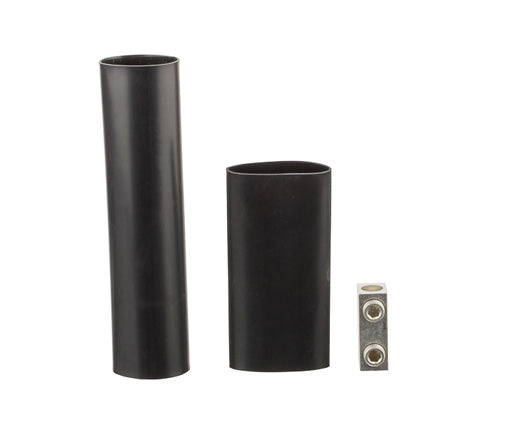

| NPNB-SKAB-250 | 1/0 AWG TO 250 MCM |
| NPNB-SKDB | 14/3 TO 8/3 |
| NPNB-SKUF | 14/3 TO 8/3 |
| NPNB-SKSS-3 | 14/3 TO 10/3 |
What's In The Box
What's In The Box
- Qty 1 - Easy Splice™ ALCU, CU & UF Splice Kit
