EMT Pipe Straps Snap-on Type, 1-Hole Plated Steel

$10.58
SKU: 370
Trade Size
Various lead times may apply to this product. Please contact us for more details.

Description

Description

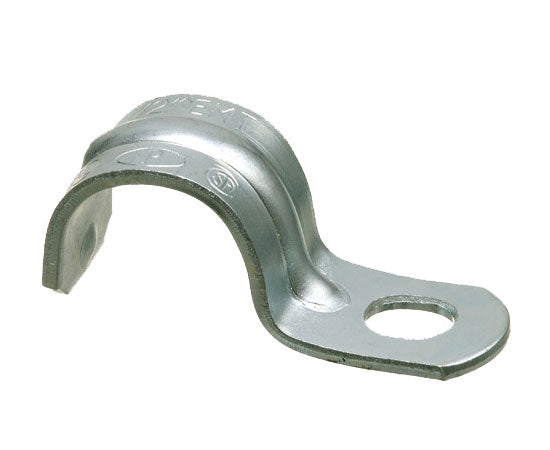

These Snap-on EMT Pipe Straps Type has one screw hole for easy quick mounting. This Pipe Strap can be used to secure piping to walls & ceilings. It is made from plated steel for strength and durability.

Specifications

Specifications

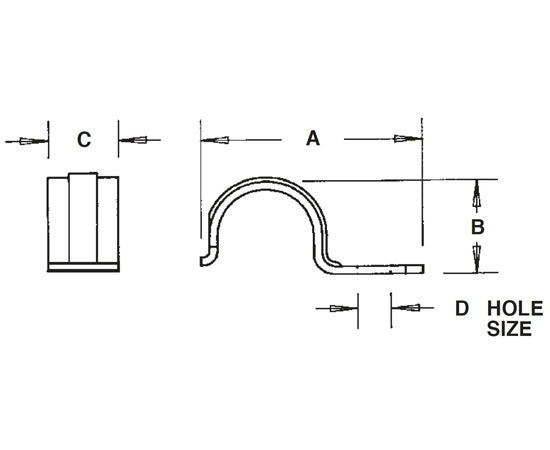

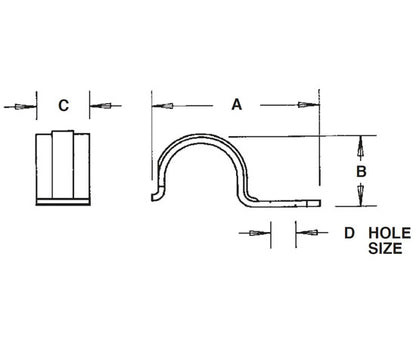

1-Hole Plated Steel EMT Straps Snap-on Type Diagram
Part Number Hole Size Dim A Dim B Dim C Dim D
NPNB-370 1/2" 1.700 .700 .562 .250
NPNB-371 3/4" 1.935 .975 6.25 .250
NPNB-372 1" 2.210 1.090 .750 .312
NPNB-373 1-1/4" 2.800 1.540 .875 .375
NPNB-374 1-1/2" 3.140 1.790 1.00 .375
NPNB-375 2" 3.890 2.150 1.125 .437

What's in the box?

What's in the box?

  • Qty 1 - 1-Hole Plated Steel EMT Straps Snap-on Type
