Description
RJ45 Style Tool Kit for your Network project
This kit features the EXO Crimp Frame with the EXO-EX and the EZ-RJ45 interchangeable die sets, which also have everything you need to terminate Cat5e, Cat6, and Cat6A cables. The EZ-RJ45 Die works with standard EZ-RJ45 connectors to terminate Cat5e cables, whereas the EXO-EX Die works with the ezEX 44 and ezEX 48 connectors to terminate larger Cat6 and Cat6A cables.

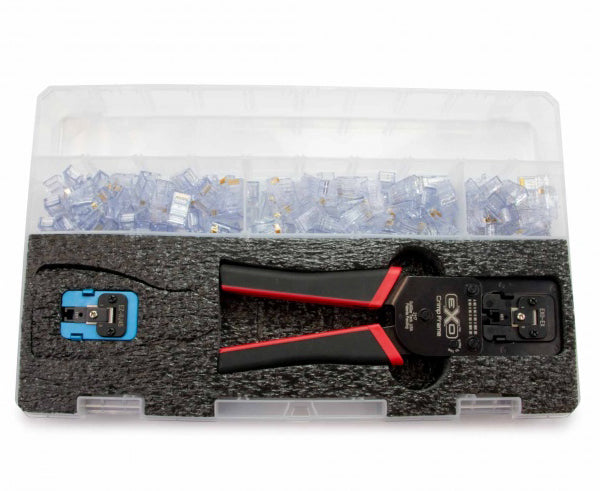

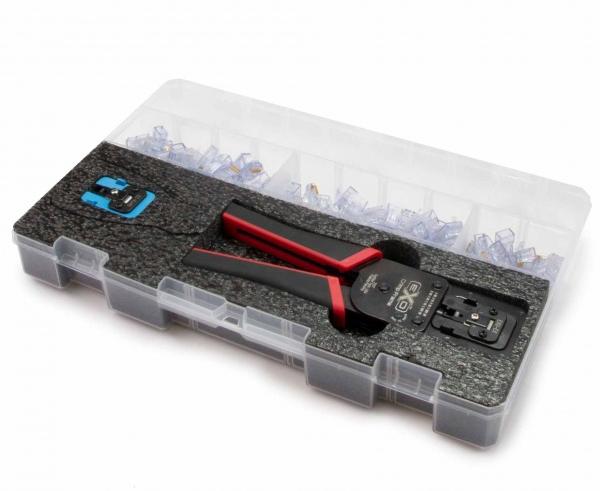

EXO Termination Kit includes RJ45 connectors for Ethernet cables as well as the EXO Crimp Tool with Die and the EZ RJ45 Die. It is supplied in an acrylic plastic case with a die-cut foam to keep the tools in place.
Standard RJ45 Issues
The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.
What Makes ezEX Different?

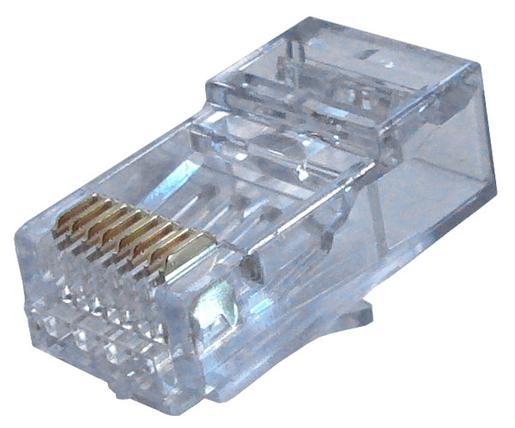

ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.
Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path, reducing near-end crosstalk and allowing for larger diameter conductors.
ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24- 22AWG conductor sizes.
The EXO Crimp Frame with EXO-EX Die is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.
