5MP Motorized Varifocal Outdoor Eyeball Camera with AI

Various lead times may apply to this product. Please contact us for more details.

IP66 Rated     UL Listed logo

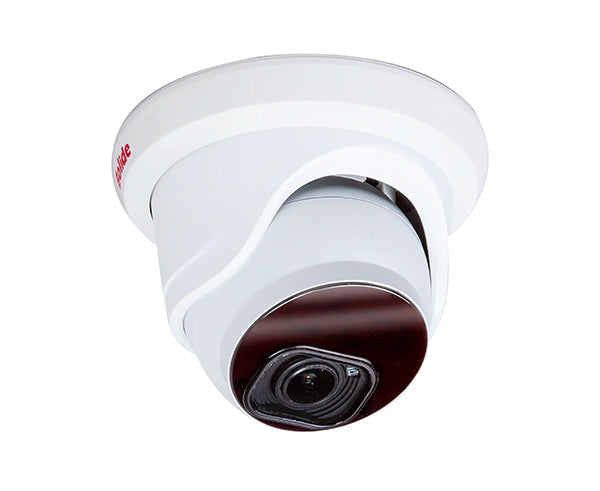

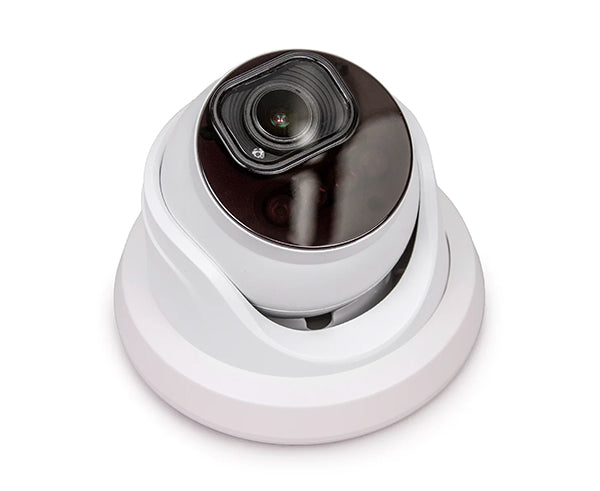

5MP Motorized Varifocal Outdoor Eyeball Camera with AI

The new Motorized Varifocal Outdoor Eyeball Camera with AI features up to 5mp of Ultra HD Resolution, combined with the Next Generation of compression standards High Efficiency Video Coding (HEVC/H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. This camera also is equipped with a 2.8-12mm Motorized Varifocal Lens and a IP66 IR Eyeball Camera. iPac AI Enabled with Facial Recognition System.



  • 5MP Ultra HD Resolution
  • NDAA Compliant
  • H.265 Compression
  • 2.7 – 13.5mm Motorized Varifocal Lens
  • IR Up to 135 Feet
  • IP67 Rated Weatherproof Housing
  • ONVIF Compliant
  • P2P Support



    Mechanical Specifications

    Image Sensor 1/3” Progressive Scan CMOS
    Minimum Illumination 0.002Lux @(F1.2,AGC ON)
    0 Lux with IR
    Shutter Speed 1/5 s – 1/20,000 s
    Lens Type 2.7 – 13.5mm
    Lens Mount M12 / M14
    Day and Night IR Cut Filter with Auto Switch
    Dynamic Range Digital WDR
    Digital Noise Reduction 3D DNR


    Video Compression H.265 / H.264
    Image Resolution 5MP (2592 X 1944)
    Video Bit Rate 8Kbps ~ 8Mbps


    Max Resolution / FPS



    Main Stream

    5MP (2560 X 1944), 4MP (2592 X 1520),
    3MP (2304 x 1296), 1080P (1920 x 1080),
    720P (1280 x 720), 960H (1280 x 960)


    D1 (704 x 480),VGA (640 x 480),QVGA (320 x 240)

    Mobile Stream

    VGA (640 x 480), QVGA (320 x 240)

    50Hz: 25FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA

    60Hz: 30FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA

    Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser
    Day and Night Switch Auto / Schedule / Triggered by Alarm In


    System Compatibility ONVIF ( Profile S/G/T )
    Interface 1 RJ45 10M / 100M Ethernet Interface
    IR Distance Up to 135 ft
    POE Built-In POE
    Security Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering
    Video Analytics / AI Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection


    Power Supply 12 VDC ± 10%, POE (IEEE802.3af)
    Power Consumption

    3.5W / 4.5W ( IR OFF )

    7.5W / 9.5W ( IR ON )

    Operating Temp. -40 °F - 140 °F Humidity 95% or less (non-condensing)


    Dimensions 9.43" x 3.4"
    Net Weight 1.94 lb
    Weather-Rating IP67 Rated

    Additional Information

    Additional Information

    AI Features:
    • Cross Counting
    • Crowd Density Detection
    • Face Detection
    • Heat Map
    • Human Detection
    • Stationary Object Detection(SOD)
    • Line Crossing Detection
    • Perimeter Intrusion Detection
    • Queue Length Detection
    • Rare Sound Detection (Baby Crying Sound)
    • Rare Sound Detection (Dog Barking Sound)
    • Rare Sound Detection (Gunshot Sound)

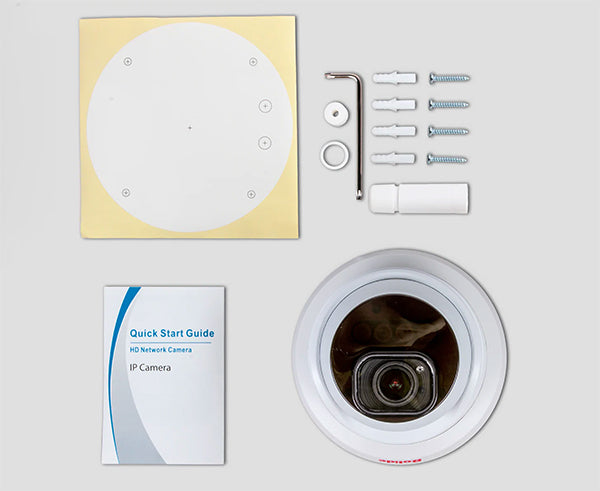

    What’s In The Box

    What’s In The Box

    • Qty 1 - 5MP Motorized Varifocal Outdoor Eyeball Camera with AI
