Fault Trapper Arc Fault Cable Tester, TDR

$673.86
SKU: TL12-1088
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

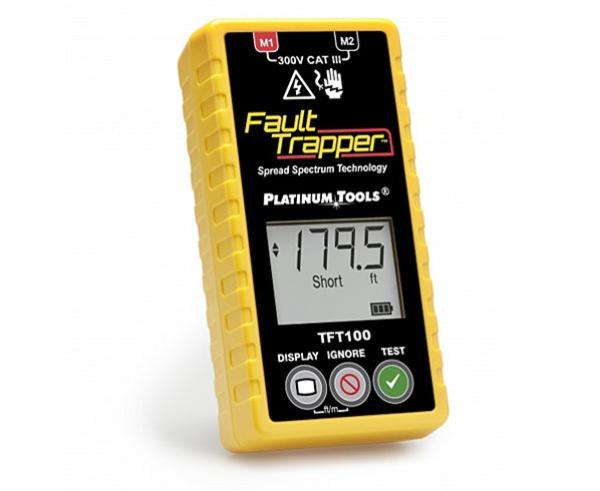

The Fault Trapper Arc Fault Cable Tester

The Fault Trapper Cable Tester uses Spread Spectrum Time Domain Reflectometry to monitor live circuits and allows unattended monitoring of circuit breaker trips and No Fault Found (NFF) conditions. It features an in-line 40 Amp module which supplies power to the main unit and isolates the circuit (up to 300 VAC) being monitored from the breaker.

With its three-button operation, the Fault Trapper meter identifies opens, shorts and arc faults, locates them and reports time of electrical events, plus distance in feet/meters. All results are saved in the memory. This cable tester has a backlit LCD display and back-up battery which allows viewing of the last faults off-line. Identify opens, shorts and arc faults up to 500 feet. UL/CSA approved, 120-240 volts, and up to 40 AMP circuits. It is 300V CAT III rated, TUV & CE compliant. The tester supports NEC 1699 and UL1699/1699B requirements.

Features

Features

  • Detect and locate electrical events with ease
  • Identify opens, shorts, and arc faults up to 500 feet
  • UL/CSA approved 120-240 volts, up to 40 AMP circuits
  • Quickly plugs in without cutting or stripping
  • The compact unit fits inside small spaces for extended monitoring
  • Allows unattended monitoring
  • Runs on in-line power in monitor mode
  • Faults identified and reported as the distance from the device in feet/meters
  • Backlit LCD for working in dark areas
  • The back-up battery allows capture of breaker trips/un-powered display of results

Specifications

Specifications

What’s In The Box

What’s In The Box

  • Qty 1 - Fault Trapper Cable Tester
  • Qty 1 - Banana Plug Assembly
  • Qty 1 - Plug-in Terminal Blocks
