Fiber Adapter Panel, Single Mode, MTP, 6 Port
Fiber Adapter Panel, Single Mode, MTP, 6 Port
BY Primus Cable
SKU: SKU: FB24-4503MTPS6
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Comparable to Corning's CCH-CP72-89 & CCH-CP96-89
These fiber adapter panel inserts are only compatible with our FB23 and FB36 fiber patch panels and our FB23 and FB36 wall mount enclosures.
Description

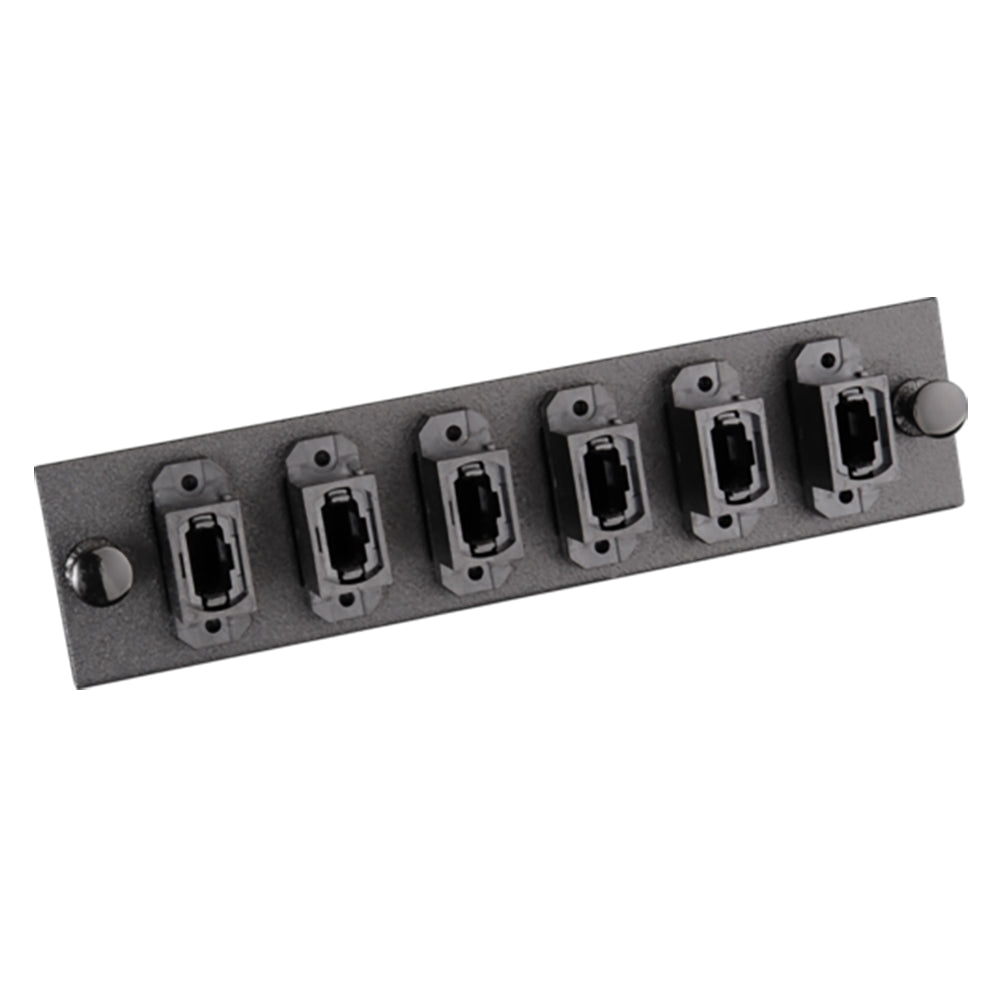

Loaded MTP® Single Mode Panels, 6 Port
Compatible with our FB23 Fiber Patch Panels and Wall Mount Enclosures
These fiber adapter panels are loaded with either 6 or 8 single mode MTP connectors. These panels snap easily into most of our FB23 and Wall Mounts.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- Compatible with FB23 and FB36 fiber patch panels and wall mount enclosures
- Snap-in design for easy installation
- High reliability with factory pre-loaded MTP® connectors
- Suitable for high-density optical network environments
- Supports efficient and flexible fiber management
- Durable construction for indoor and outdoor use
- Ensures minimal insertion loss and excellent optical performance
Specifications
| CONNECTION SPECIFICATIONS | |
|---|---|
| Connection Type | MTP® |
| Number of Connections | 6 or 8 |
| Mode | Single Mode |
| Fiber Polish | APC |
| Connection Color | Black |
| Plate Color | Black |
| Plate Code | N/A |
| Plate Height | 1.20" |
| Plate Width | 5.12" |
What’s in the Box
- Qty 1 - Fiber Adapter Panel with 6 Single Mode MTP® ports
- Qty 6 - Single Mode MTP® Adapters (pre-installed)
- Qty 6 - Dust Caps for each adapter
- Qty 1 - Mounting Hardware (screws, fasteners)
- Qty 1 - Protective Packaging (box or bag)
- Qty 1 - Installation Guide or Manual
