Comparable to Corning's CCH-CP12-59
These fiber adapter panel inserts are only compatible with our FB23 and FB36 fiber patch panels and our FB23 and FB36 wall mount enclosures.
Description

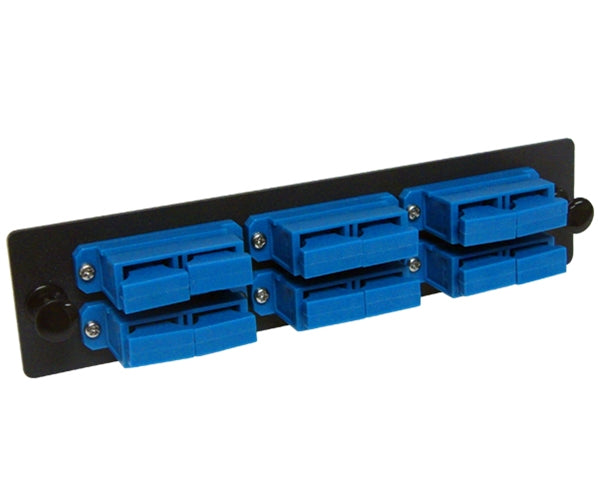

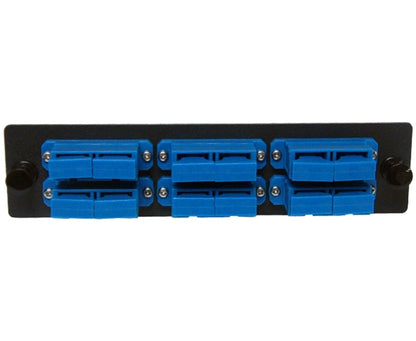

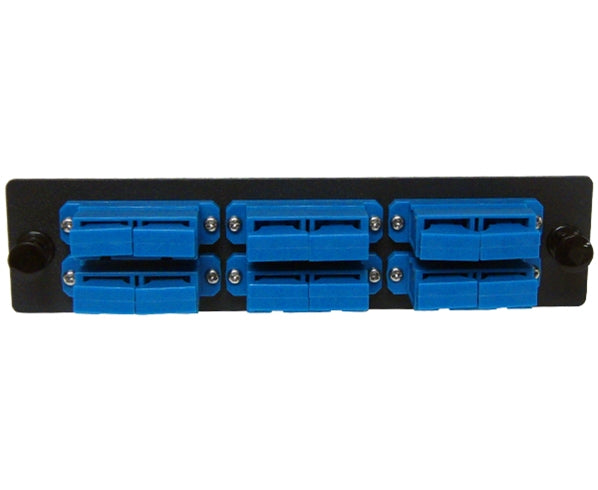

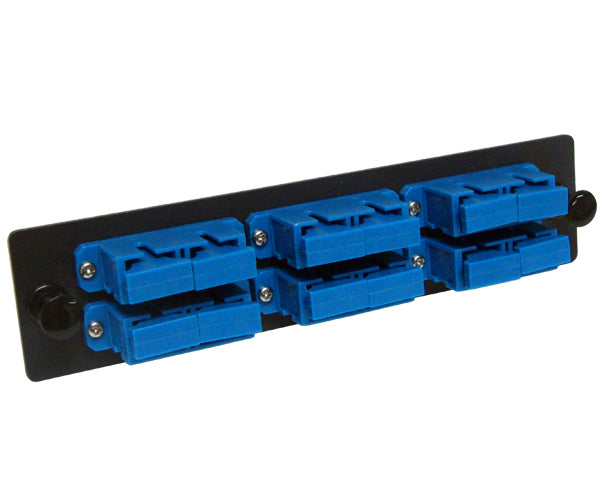

Fiber Adapter Panel - Loaded with 6 Duplex SC Blue Adapters (Stacked), Single Mode, Black, 12 Ports Total
This fiber adapter panel is loaded with 6 duplex single mode SC connectors, giving a total of 12 ports. The panel snaps easily into most of our FB23 Fiber Patch Panels and Wall Mounts.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- Cold Rolled Steel
- 6x Duplex SC Connections
- Durable Powder Coated Black
- For Single Mode Fiber
- LGX Adapter Plate Foot Print
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PHYSICAL CHARACTERISTICS | |
| Plate | Cold Rolled Steel, 1.6mm Thick |
| Panel Foot Print | LGX |
| Coupler Type | Duplex SC |
| Dimensions | 130mm x 30mm |
| Finish | Black Powder Coated Paint |
What's in the Box
What’s in the Box
- Qty 1 - Fiber Adapter Panel, Single Mode, 6 SC Duplex Couplers
