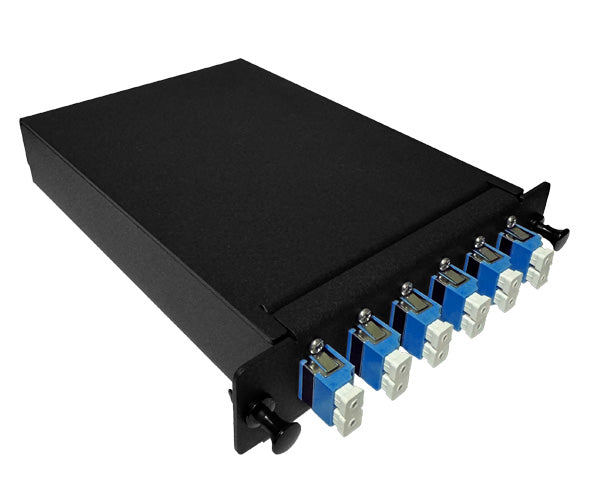

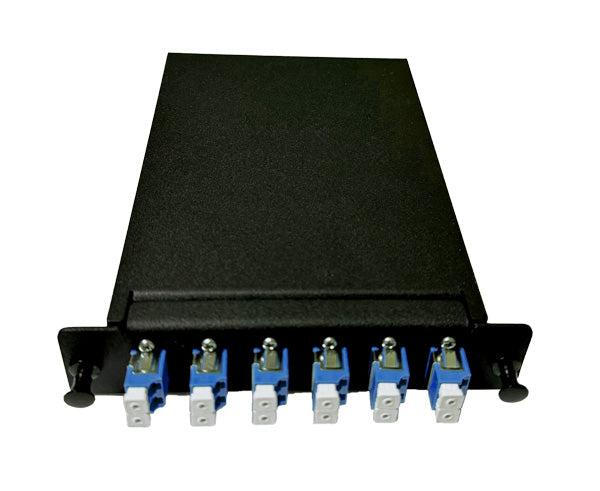

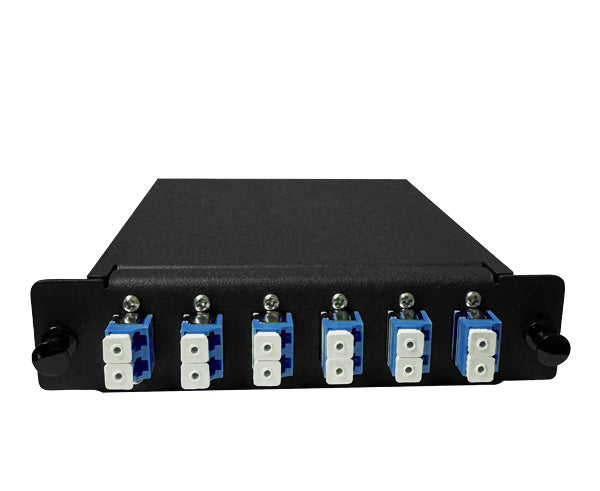

Fiber Splice Cassette - Adapter Plate & Pigtails, Fully Loaded w/12F, LC/UPC, SM, LGX Compatible

Features

• Easy installation
• Small size
• LGX Compatible
• Push pin locking

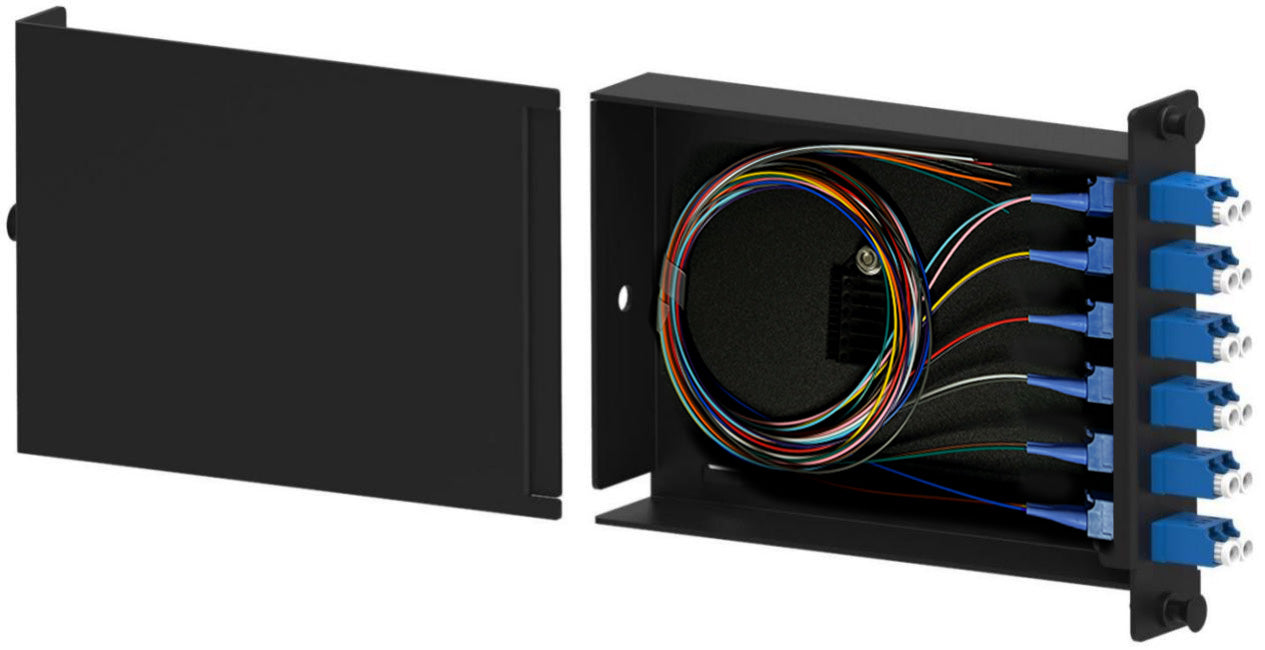

• Easy to remove the cover and splice the fiber

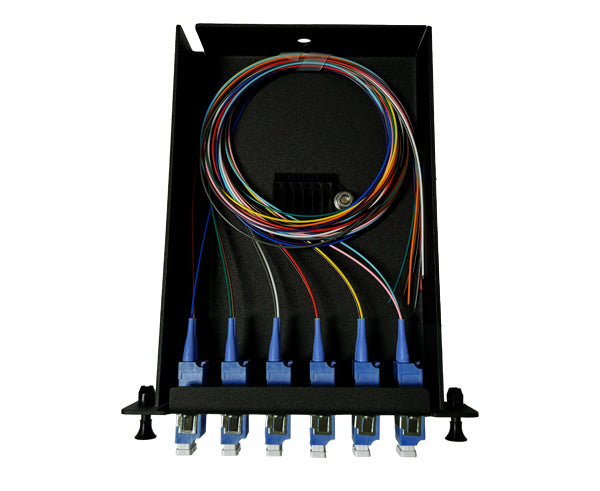

• Pre-terminated Pigtails

Specifications

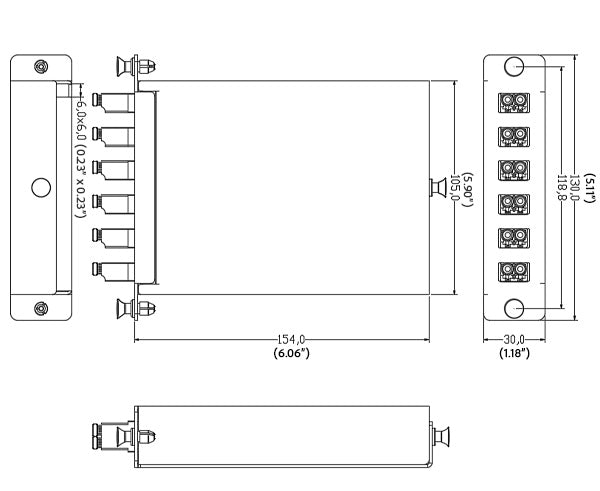

Spec Sheet

Width: 5.12" (130mm)
Height: 1.18" (30mm)
Depth: 6.06" (154mm)

Fiber Splice Cassette
SKU	FB36-6153R3	FB36-6260R6	FB36-6386R12
Unit Size	1U	2U	4U
Dimension	1.75” x 17” x 14”	3.50” x 17” x 14”	6.93” x 17” x 14”
Panel Material	16 Gauge Steel	16 Gauge Steel	16 Gauge SPCC Steel
Panel Capacity	3 LGX Adaptor Panels	6 LGX Adaptor Panels	12 LGX Adaptor Panels
Max. Fiber Count	72 Fibers	144 Fibers	288 Fibers
Accessibility	Slide out tray	Slide out tray	Slide out tray
Integrated Cable Management	✓	✓	✓
Slack Management Spool	—	✓	✓
Pre-Termination Option	✓	✓	✓
Compatible With	FB43-1541-12FLS FB43-1540-12FLM4	FB43-1541-12FLS FB43-1540-12FLM4	FB43-1541-12FLS FB43-1540-12FLM4

What's in the box

• Fiber Cassette Patch & Splice, Adapter Plate & Pigtails, Fully Loaded

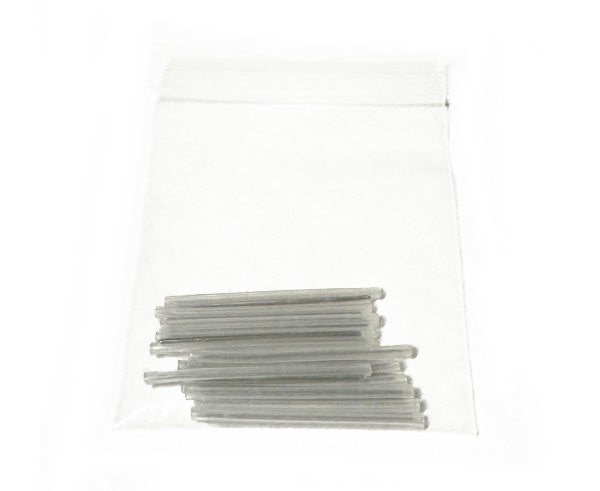

• Fiber Optic Protective Sleeves
