Description

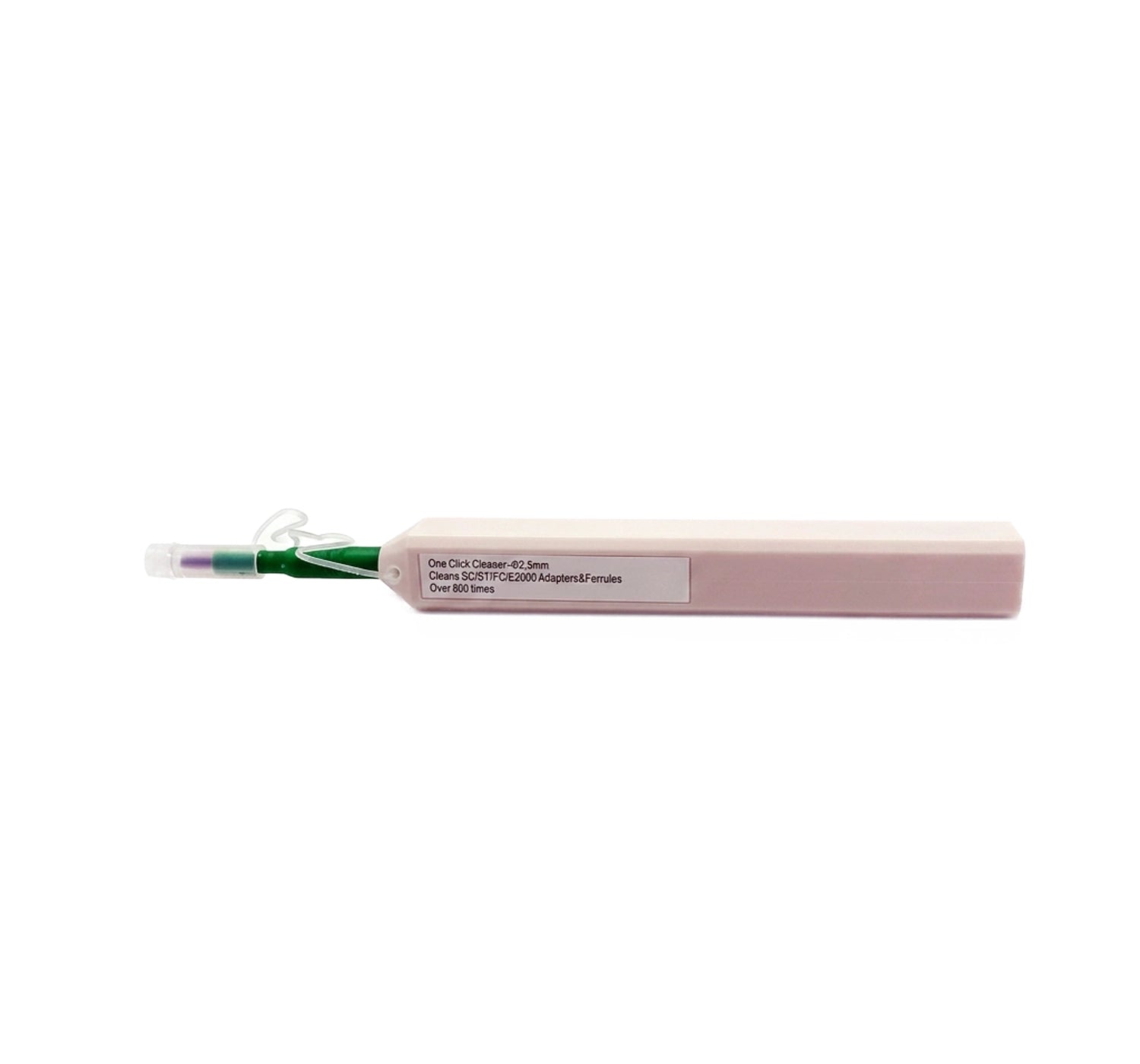

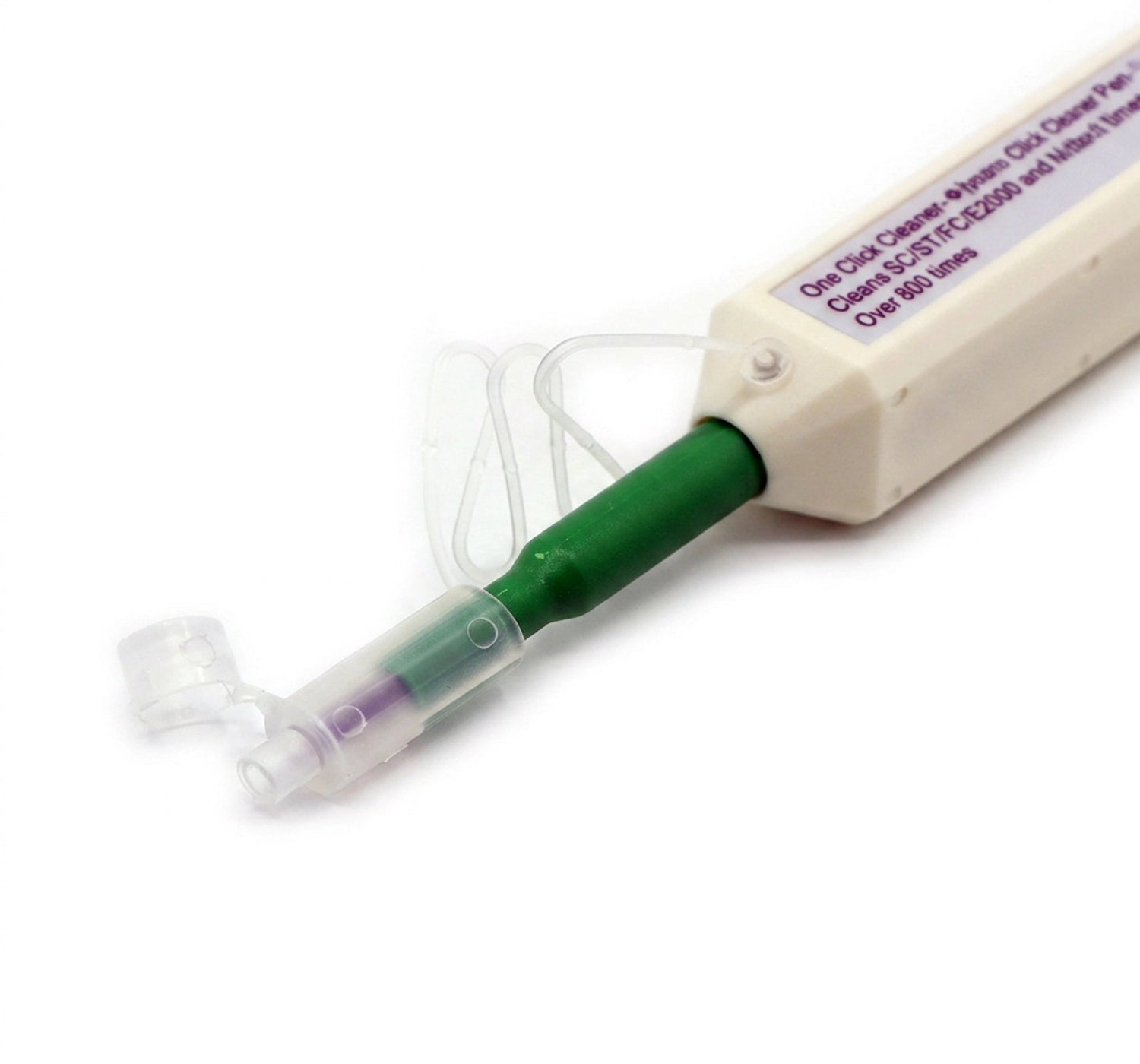

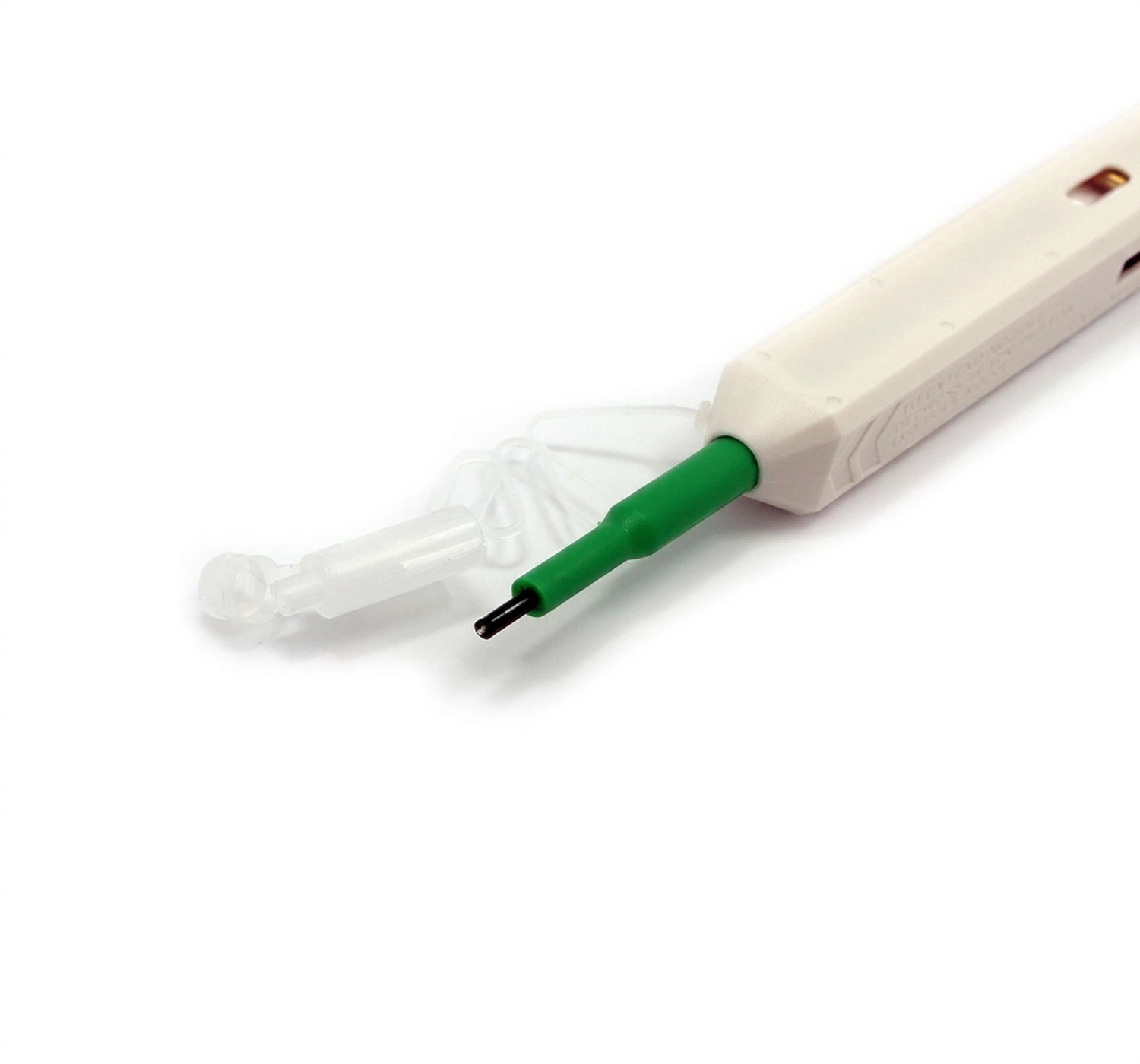

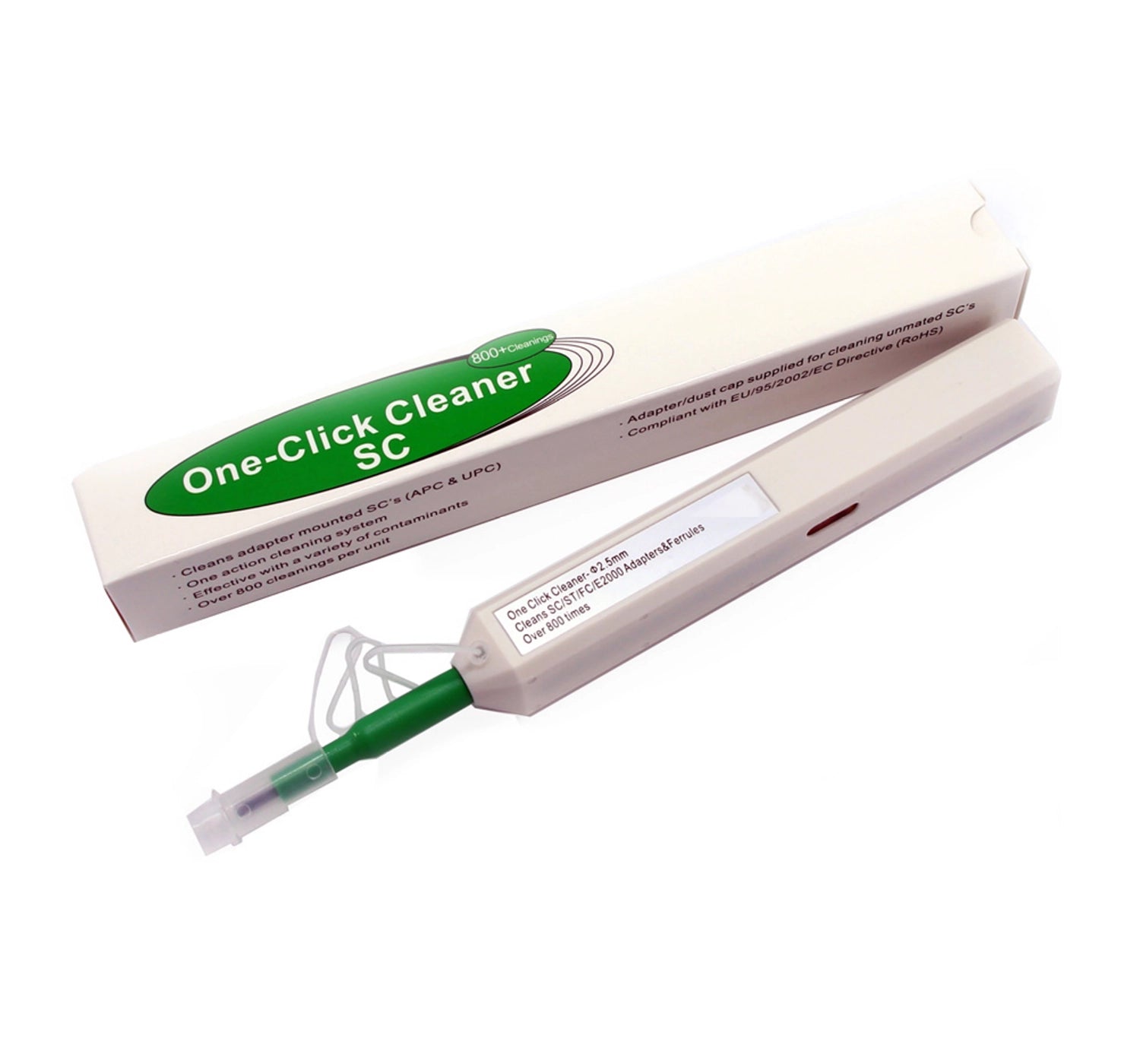

Fiber Cleaning Pen, Clean Adapters and Connectors, 2.5mm SC&FC&ST&E2000 one click cleaner, 800 Cleaning Cycles
Fiber Optic one click Cleaner-Mini Designed to specially work well with the SC, FC, ST and MPO connectors, this instrument cleans the ferrule end faces removing dust, oil, and other debris without nicking or scratching the end face.
The SC/FC/ST 2.5mm one click Cleaner is a high-performance device designed for cleaning the ferrule end-faces of SC/FC/ST connectors. Cost effective tool for cleaning fiber end-faces without the use of alcohol. The SC/FC/ST connector cleaner is designed to clean both exposed jumper ends and connectors in Adapters.

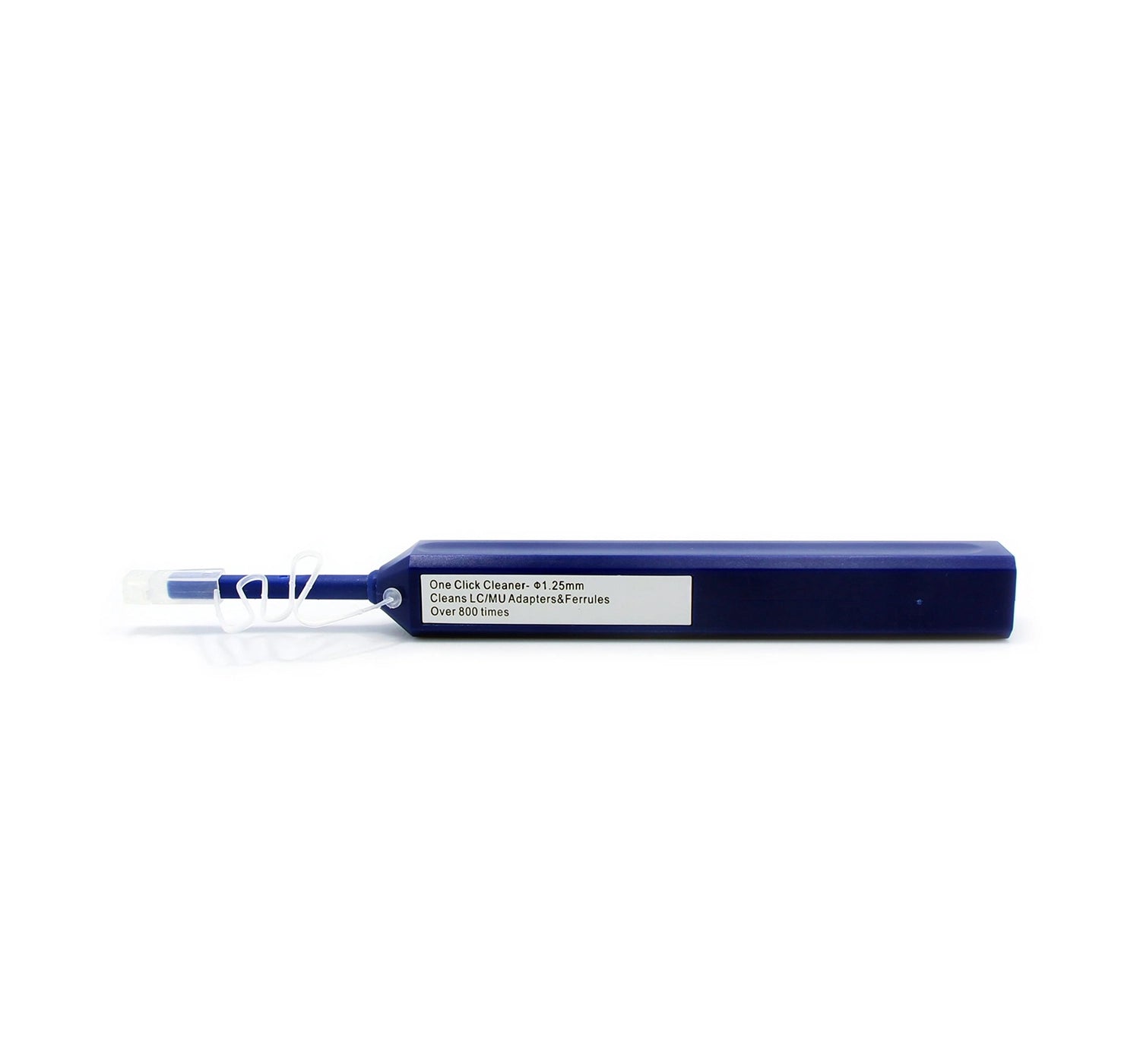

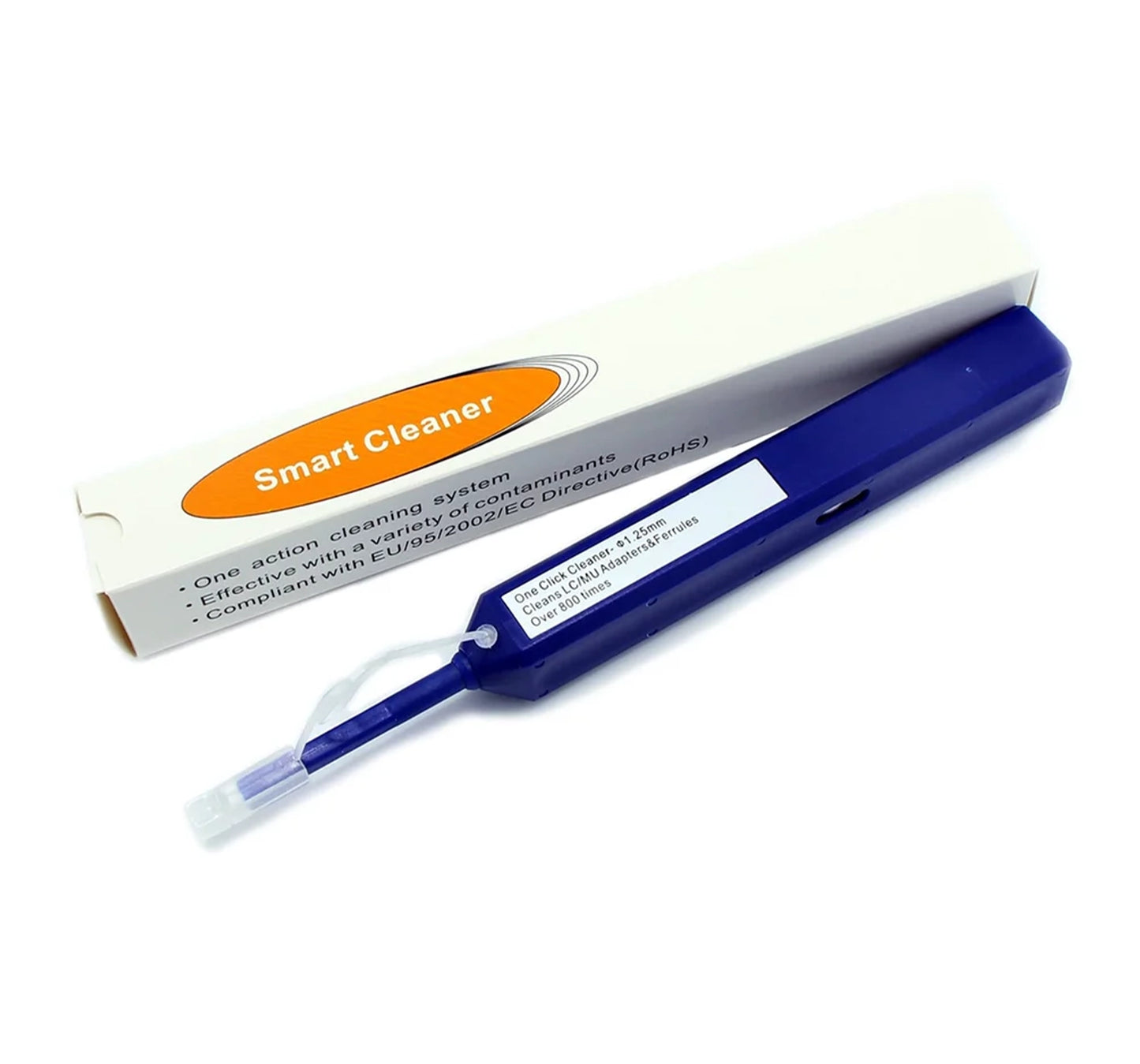

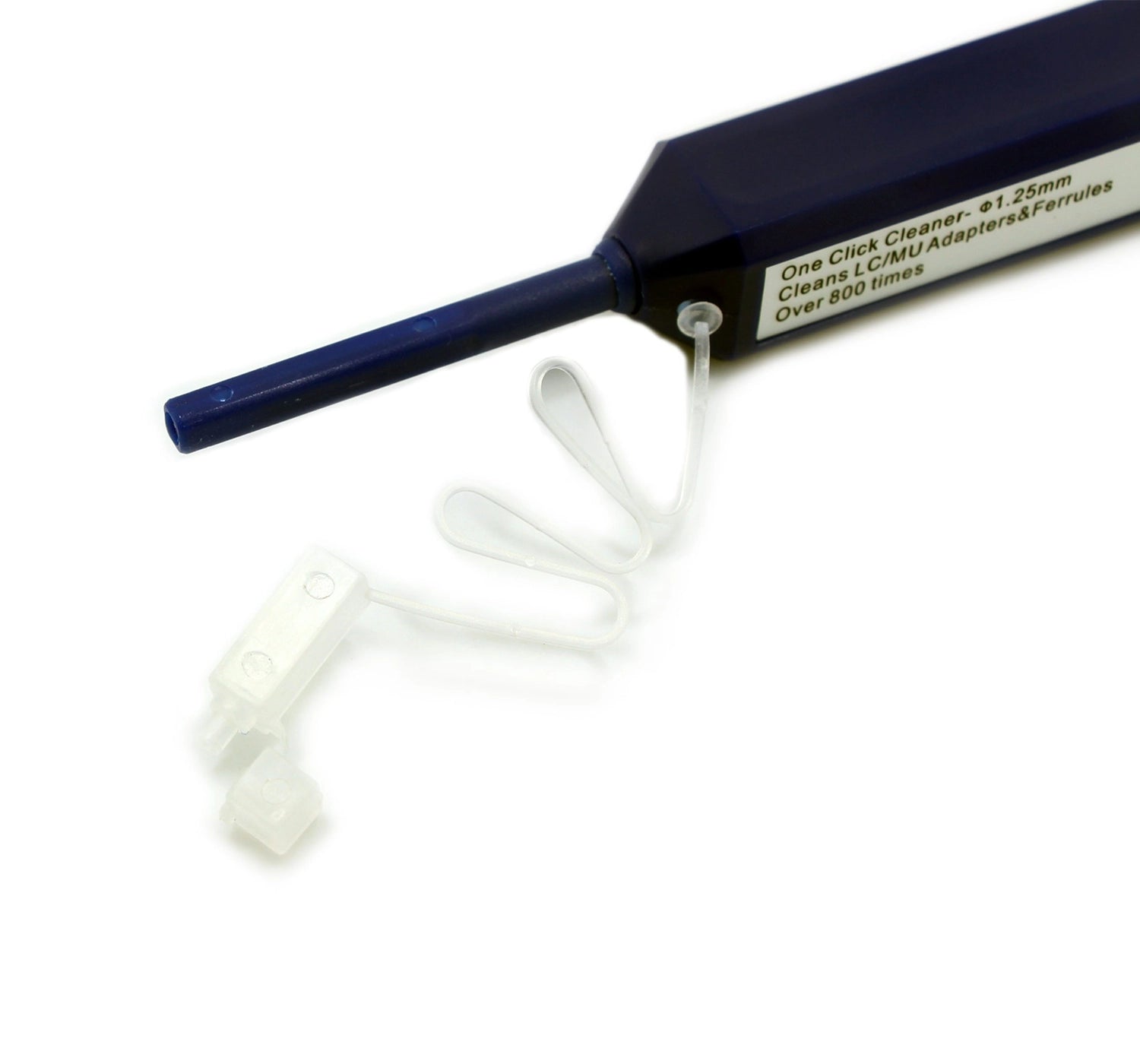

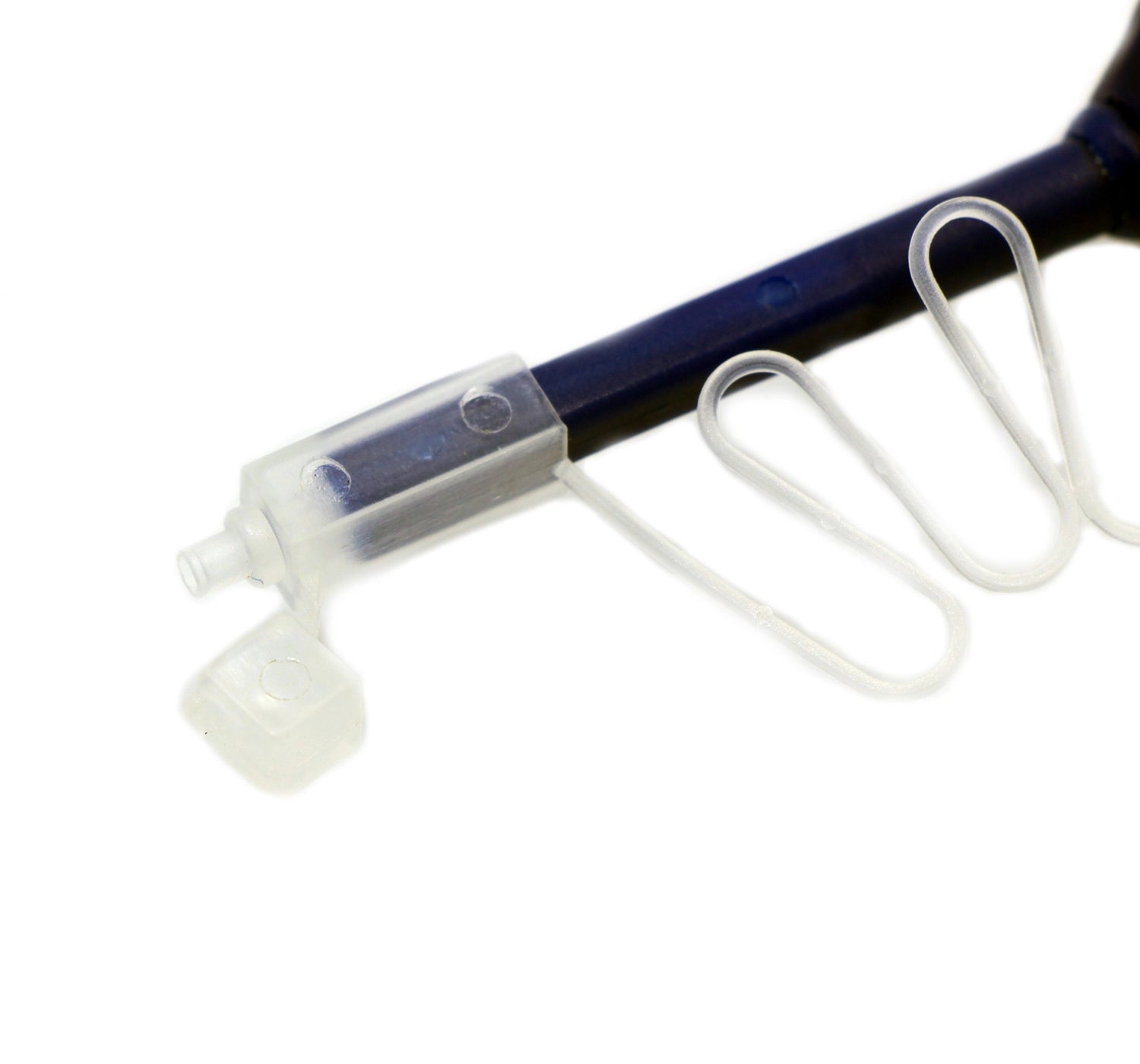

Fiber Cleaning Pen, Clean LC/MU Adapters and Connectors, LC&MU 1.25mm one click cleaner, 800 Cleaning Cycles
Fiber Optic One Click Cleaner-Mini Designed to specially work well with the LC,MU connectors, this instrument cleans the ferrule end faces removing dust, oil, and other debris without nicking or scratching the end face.
The LC/MU One Click Cleaner is a high-performance device designed for cleaning the ferrule end-faces of LC&MU connectors. Cost effective tool for cleaning fiber end-faces without the use of alcohol. The LC/MU connector cleaner is designed to clean both exposed jumper ends and connectors in Adapters.
Fiber Optic Cleaning
Mitigate the risk of fiber optic contamination with fiber optic cleaners, fiber cleaning pens, and cleaning wipes. These handy fiber cleaners can remove contaminants like: dust, dirt, oils, film residue, and solvent coating.
Airborne dirt particles are about the size of the core of SM fiber and are usually silica-based - they may scratch PC connectors if not removed! Patch panels have mating adapters that can become contaminated if left open to the air or scrape off foreign particles under repeated usage. We recommend you always keep dust caps on connectors, bulkhead splices, patch panels, or anything else that is going to have a connection made with it.
Features
Features
- Easy pushing motion engages connector and initiates cleaner
- Cleans connectors on jumpers and in adapters
- Ergonomic, comfortable design with single action cleaning
- Effective on a variety of contaminators including dust and oils
- Disposable with 800+ cleanings per unit
- Made from anti-static resin
- Cleaning micro fibers are densely stranded and debris free
- Extendable tip reaches recessed connectors
- Cleaning system rotates 180 for a full sweep
-
Audible click when engaged
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| FB26-1720-FCP | FB26-1719-FCP | ||
| Dimension | |||
| 164.5cm X 17.5mm X 17.5mm | 172.5cm X 17.5mm X 17.5mm | ||
| Head | |||
| 2.5mm | 1.25mm | ||
 |
 |
||
| NO | PART NAME | FUNCTION | |
| A | TIP | LEAD THE CLEANING CLOTH TO THE OPTICAL CONNECTOR AND FACE | |
| B | NOZZLE | LEAD THE TIP TO THE OPTICAL CONNECTOR AND FACE | |
| C | LOCK BUTTON | PUSH THE BUTTON TO EXTEND AND CONTRACT THE NOZZLE | |
| D | OUTER SHELL | PUSH THE OUTER SHELL TO CLEAN THE CONNECTOR | |
| E | GUIDE CAP | ACTS AS DUST CAP OR CLEANING ADAPTER FOR CONNECTOR PLUG | |
What's in the Box
What's in the Box
- Qty 1 – Fiber Cleaning Pen, SC/FC/ST/E2000 (2.5 mm)
- Qty 1 – Fiber Cleaning Pen, LC/MU (1.25 mm)
