Fiber Cleaver, Ceramic Blade, Cleave Lengths 2mm-20mm

Fiber Cleaver, Ceramic Blade, Cleave Lengths 2mm-20mm

BY Primus Cable

Regular price $229.99 USD
Regular price Sale price $229.99 USD
Sale Sold out

SKU: SKU: TL9-4431

 Various lead times may apply to this product. Please contact us for more details.

View full details

Description

Fiber Cleaver

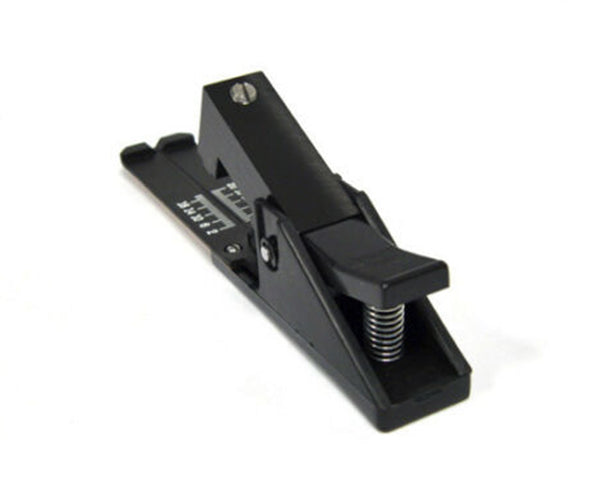

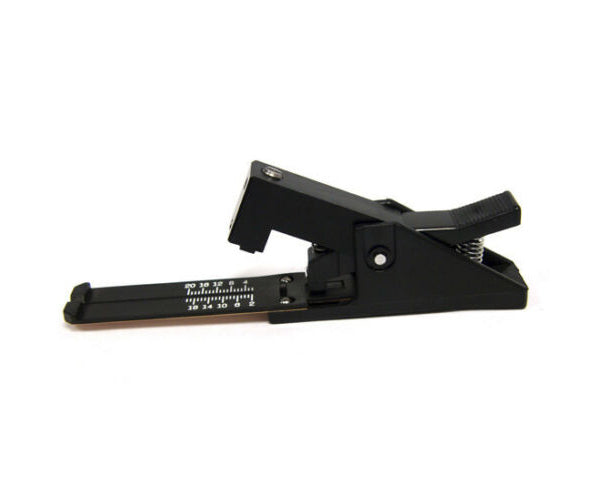

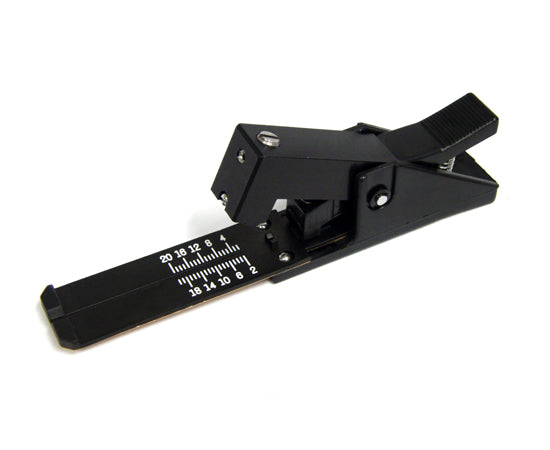

The Fiber Cleaver is a single fiber cleaver designed to accommodate either 900µm buffered or 250µm coated fiber. The cleaver's quick and easy three-step operation is well suited for mechanical splice and quick termination field connector applications. The leaf spring base is ruled to allow for cleave lengths of 2 to 20mm. The standard carbide blade will perform up to 6,000 cleaves before replacement.

Features

Features

  • Fast Splicing for Emergency Restorations
  • Self Gripping Clamshell Design
  • Adhesive Option for Added Pull Strength
  • For 125µm Clad Fiber
  • Singlemode and Multimode
  • Affordable

Specifications


Specifications
Fiber Type Silica glass fiber (core and clad)
Compatible Fiber Size 900µm Buffer or 250µm Coated
Cladding Diameter 80µm to 200µm
Dimensions 125mm x 20mm x 42mm
Weight 70g
Cleave Length 2mm-20mm

What’s In The Box

What’s In The Box

  • Qty 1 - Fiber Cleaver, Ceramic Blade, Cleave Lengths 2mm-20mm
