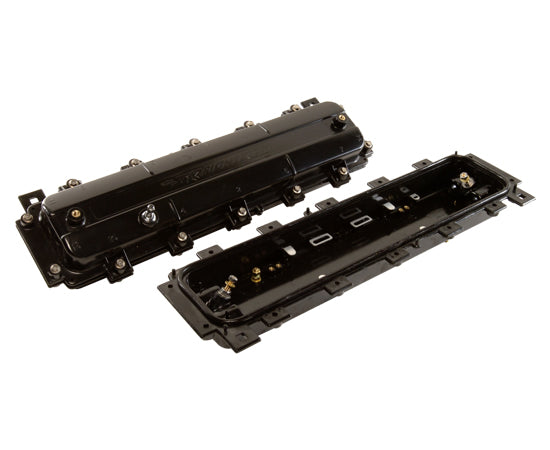

Fiber Inline Closure, 72 Single Fusion Splice Capacity

$248.99
SKU: FB23-4384-72IE
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Includes one (1) splice tray. Additional FB25-3996STA24 splice trays sold separately.

Description

Fiber Inline Closure, 72 Splice Capacity

Compatible with Splice Tray FB25-3996STA24

The FB23-4384-72IE is a medium capacity fiber optic splice closure designed for a majority of splicing applications in above and below grade installations. The closure supports both aluminum and plastic splice trays and is fully gasketed to prevent the ingress of water while allowing for ease in entry.

The unit is compact and manufactured with highly impact and corrosion resistant materials. With this enclosure there is one 24 single fusion splice tray and a capacity for up to three splice trays.

Features

  • Supports both Inline or Butt Configurations.
  • Lightweight and compact.
  • Up to four cable entries with cable OD range of .3" to .63"
  • Suitable for above or below grade installations.
  • Constructed with impact and corrosion resistant materials.
  • Integrated "F" pressure testing valve and grounding lugs.
  • Up to 72 single fusion or 144 mass fused fibers.
  • RUS Listed

Included

  • Single Aluminum Splice Tray with 24 Single Fusion Splice capacity

Specifications

Capacity

Splice Trays (3) 24 Fiber Splice Trays, (1) Included

Dimensions

Height 5"
Length 24.5"
Width 8"

Physical Properties

Weight 10 lbs
Material 5720U Xenoye
