Description:

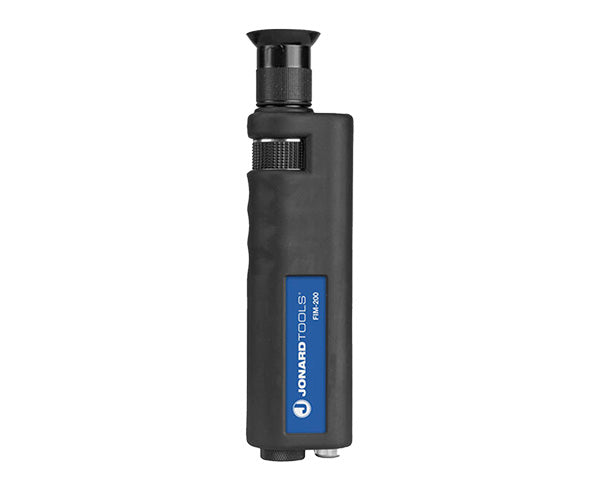

Fiber Inspection Microscope, 200x and 400x

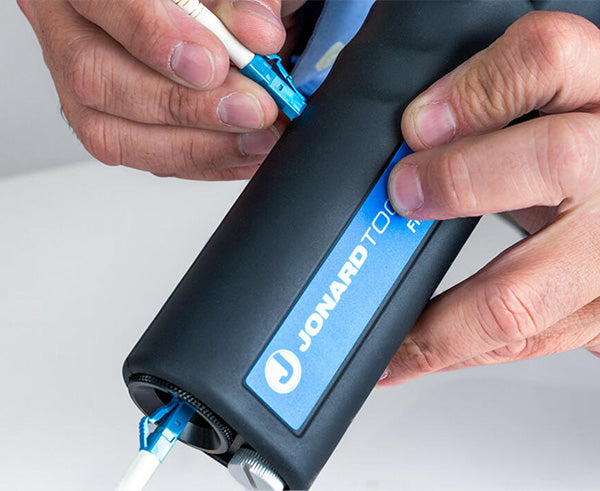

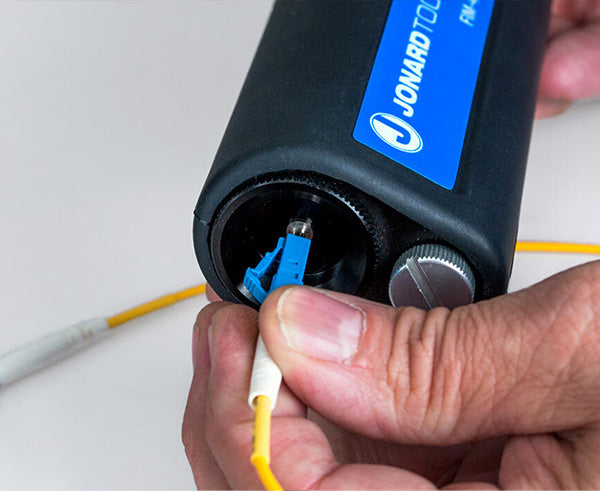

Jonard’s fiber inspection microscope has from 200x to 400x magnification, a focus wheel, and features 2.5 mm (FC/SC/ST) and 1.25mm (LC) adapters for use on most fiber connectors.
Features:
- Achromatic lens offers excellent imaging and integrated laser filters provide a safe experience (not intended for use with illuminated fibers)
- Coaxial illumination provides clear view of connector face and fiber
- LED light for longer battery life

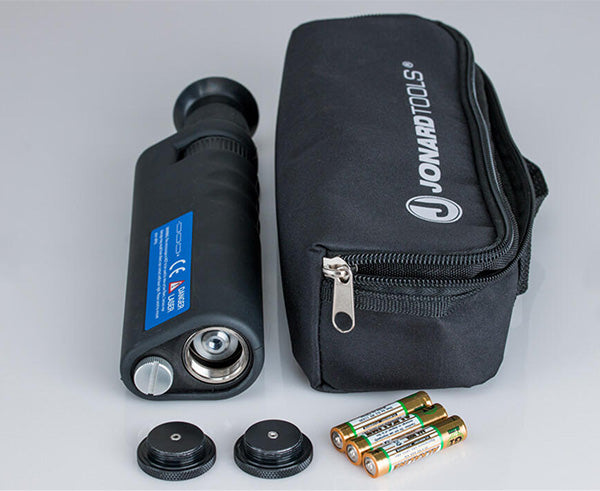

- Includes cushioned nylon case and three AAA batteries, microscope also has rubber cover for protection
- CE certified to EU standards
Specifications:
| Specifications | FIM - 200 | FIM - 400 |
| Length | 8.76” (222.50 mm) | 8.76” (222.50 mm) |
| Height | 2.25” (57.15 mm) | 2.25” (57.15 mm) |
| Width | 1.25” (31 mm) | 1.25” (31 mm) |
| WEight | 1.570 lbs (0.712 kg) | 1.570 lbs (0.712 kg) |
| UPC# | 811490019065 | 811490019072 |
Additional Information:
What’s In The Box:
- Qty 1 - Fiber Inspection Microscope, 200x or 400x
