Description

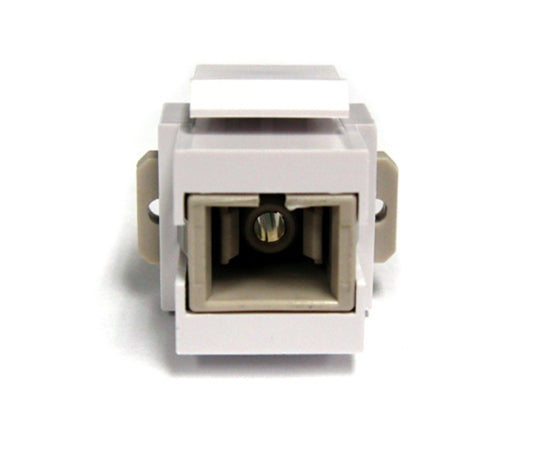

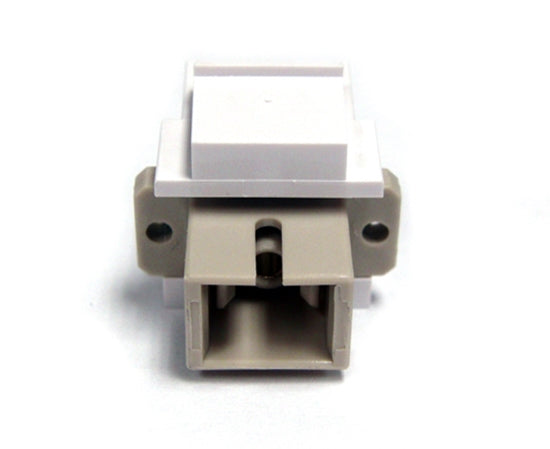

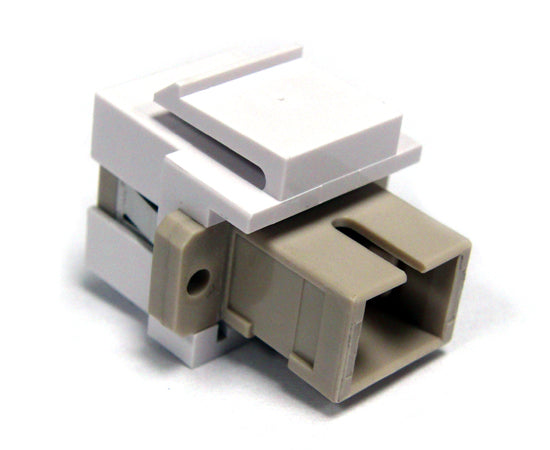

Fiber Modular Keystone Jack, SC Simplex MM, White
The optical fiber keystone jacks are a great solution for bringing fiber to the home. Used for voice, data, home networking, audio, and video, these SC snap-in keystone inserts provide customizable and flexible options for our wall plate/faceplates, surface-mount boxes, and blank patch panels.
Features
Features
- Multi-purpose keystone design.
- Snaps easily into our wall plates, blank patch panels, or mounting box.
- Interchangeable and replaceable.
Specifications
Specifications
Material |
|
|---|---|
| Insert | ABS, UL 94V-0 |
| Clip | Stainless |
| Housing | PBT, UL 94V-0 |
| Dust Cover | PP, Black Color |
| Sleeve | Phos Bronze |
Performance |
|
|---|---|
| Durability | 500 Cycles |
| Tensile Strength | 10kgf |
| Insertion Loss | ≤ 0.3dB |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
