Fiber Optic Cable Test Kit, Fiber OWL 7X Quad Certification

SKU: FB32-7222SC
Various lead times may apply to this product. Please contact us for more details.

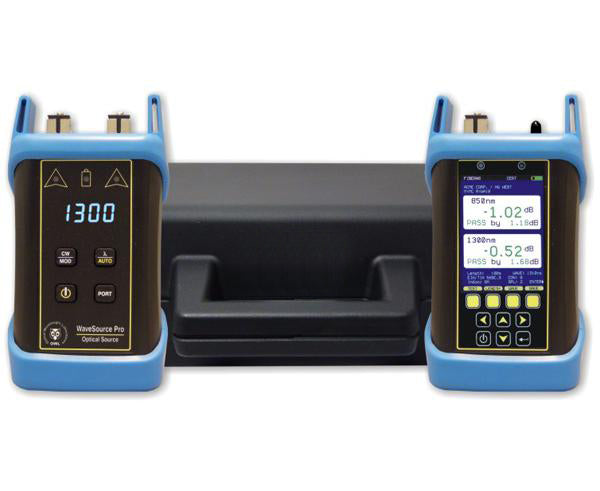

Fiber OWL 7X Quad Test Kit

Fiber OWL 7X Quad Certification Test Kit, Single Mode & Multimode, Tests 850nm/1300nm/1310nm/1550nm, SC Connectors, Color LCD Display.

The Fiber OWL 7X Quad Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification.

The Fiber OWL 7X (p/n: F7X) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference.  Up to 10,000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software.



  • Standards-based link certification for multimode and singlemode fiber links Color LCD indicates PASS / FAIL status based on color
  • Unlimited job configurations
  • User-friendly Link Wizard with helpful color on-screen diagrams to help guide the setup process
  • Auto-wavelength recognition and data storage reduces testing time and human error
  • Up to 10,000 test readings can be stored in memory
  • Integrated length tester for accurate end-to-end link length measurements, a critical factor for link budget calculation
  • Prints official certification reports via OWLView certification software
  • Re-chargeable Lithium Polymer battery
  • NIST Traceable



    Model: Fiber OWL 7X
    Detector Type: InGaAs
    Calibrated Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625
    Measurement Range:
    +5 to -70 dBm
    ±0.15 dB
    Display Resolution:
    0.01 dB
    Battery Life:
    Up to 50 hours (Lithium Polymer)
    Detector Connector Type:
    Up to 50 hours (Lithium Polymer)
    Data Storage:
    Up to 10000 data points
    Displayed Measurement Units:
    dBm, dB, mW, µW, nW
    Modes of Operation:
    Length Test Range/Accuracy:
    up to 25 km /  ±2.5 m
    Length Tester Connector Type:
    Display Type:
    Hi-resolution Color LCD
    Operating Temperature:
    -10 to 55° C
    Storage Temperature:
    -30 to 70° C
    2.9 x 4.49 x 1.3 in. (72.9 x 112.3 x 31.8 mm)
    12 oz. (373g)
