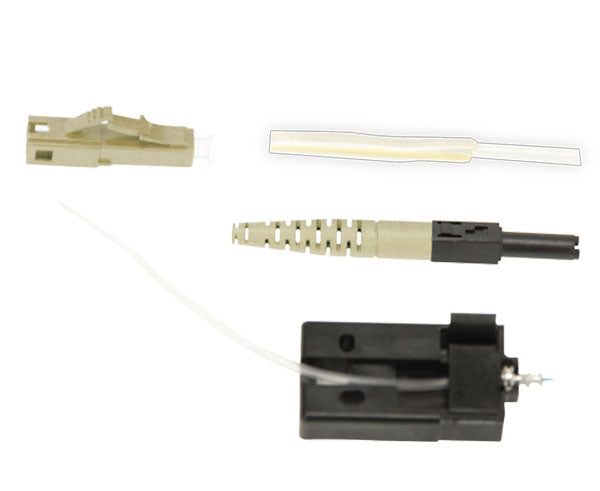

Fiber Optic FUSE Connector, Splice-on, Multimode, 62.5/125 OM1, LC, 6 Pack
Comes in a pack of 6 connectors.
AFL FUSEConnect® Splice-On Connectors, LC Multimode 62.5/125 OM1, 6 Pack
The FUSEConnect® fusion-spliced, field-installable connectors are uniquely designed and feature only four to five components. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.
FUSEConnect® connectors utilize a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks. This advanced process yields true APC performance for SC/APC and LC/APC configurations, and is compliant to GR-326-CORE. FUSEConnect® is compatible with Fujikura fusion splicers and most other fiber holder-based fusion splicing platforms.
900um boots are included and we also offer 2mm fiber boots and 3mm fiber boots that are sold separately.
Don't forget your FUSEConnect® Tool Kit which includes standard fiber preparation tools and cleaning supplies as well as a FUSEConnect® accessory kit and cord splitter tool. The cord splitter tool is uniquely designed to open the cordage of 2 mm and 3 mm cable allowing the termination of the ST and FC type connectors on simplex cordage.
- Field installable
- No adhesives, crimping or polishing
- True APC performance
- MM compliant to TIA/EIA568C.3
- Compatible with most fusion splicers
- Connectorization in:
- RF-overlay FTTP networks
- Cable TV backbone networks
- Outside plant
- MDU FTTP Cabling
- Central office connector replacement
- Data center installation
Insertion Loss (Average): 0.10 dB
Insertion Loss (Maximum): 0.3 dB
Return Loss: ≤-35 dB
Operating Temperature: -40°C to +75°C
Whats in the Box
- 6 - Boots
- 6 - Connector Housings
- 6 - Protective Sleeves
- 6 - Ferrule unit Holders
- 6 - Connector Bodies
- 6 - Dust Cap
