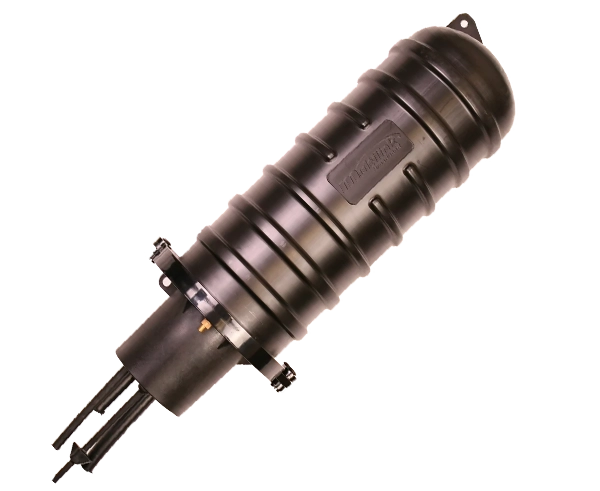

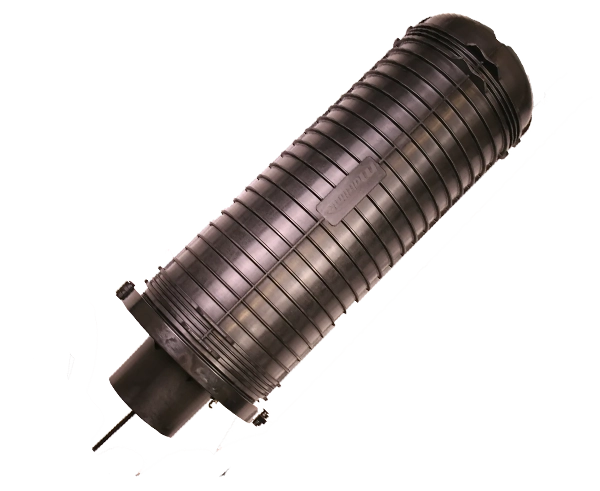

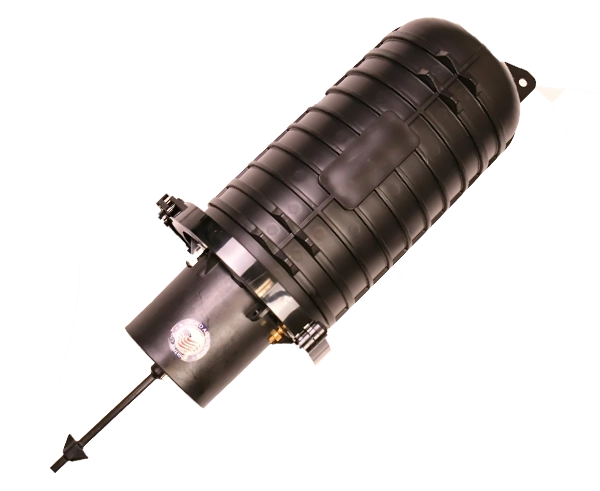

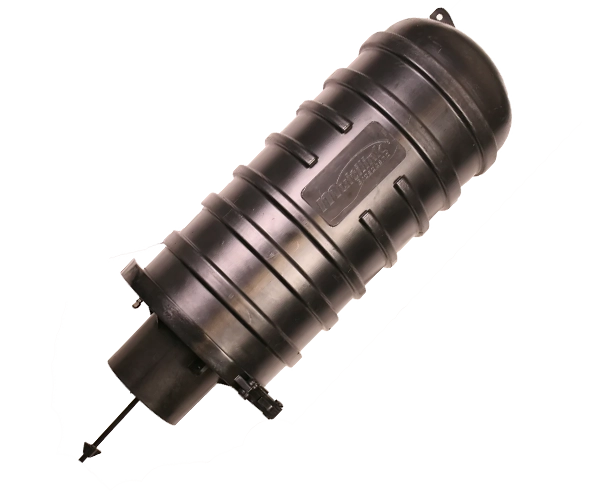

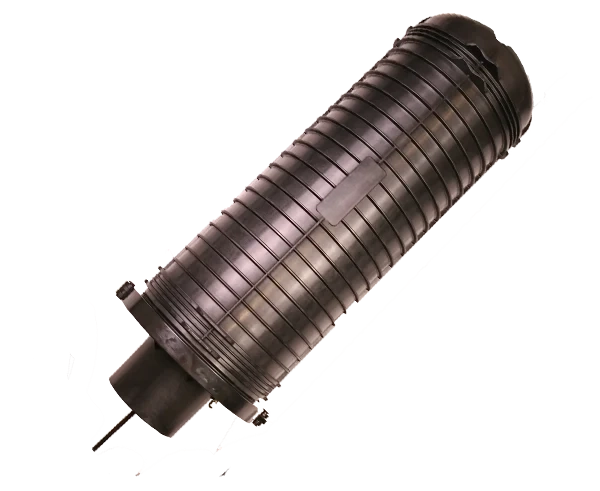

Fiber Optic Gel Dome Enclosure
FIBER SPLICE TRAY NOT INCLUDED
The Fiber Optic Gel Dome Enclosure is an all parts inclusive, hermetically sealed splice closure incorporating our innovative Gel Block Technology. These closures are designed with 6 noncaptive entries, excellent fiber management using an intuitive slack basket and needs no special tools to assemble. Gel Block Technology completely seals around different diameters of cable eliminating the need to “build up” the outside jacket resulting in time savings. The Fiber Optic Gel Dome Enclosure features a gasketed end plate, includes a flash valve, 1 ground lug and 3 cable entry kits.
Features
Features
- 6 non-captive entries allowing for up to 3 mid-sheath access entries (ring cuts)
- Designed for above and below grade use
- Gel Block Sealing Technology
- Fast and easy assembly with no special tools needed
- Can accommodate strand, wall, ADSS and pedestal mounting brackets
Specifications
| FIBER OPTIC SPLICE CLOSURES TECHNICAL SPECIFICATIONS | |||||||
|---|---|---|---|---|---|---|---|
| SKU / IMAGE | CABLE ENTRY | SPLICE TRAY CAPACITY | SPLICE CAPACITY | CABLE DIAMETER | WEIGHT | MATERIAL | SAFETY STANDARDS |
NPNB-020-541-00
|
6 non-captive | (4) 1120-SSTP (4) 1124-SSTP |
(48) Single Splices OR (96) Double Stacked (384) Mass Fusion Splice |
Min 0.27" Max 0.75" |
8 lbs. | Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene |
UL 1863 Certified IEC60950 IP68 GR-771 |
NPNB-020-542-00
|
6 non-captive | (4) 4048-SSTP Splice Trays | (96) Single Splices OR (192) Double Stacked (384) Mass Fusion Splice |
Min 0.27" Max 0.75" |
5.5 lbs. | Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene |
UL 1863 Certified IEC60950 IP68 GR-771 |
NPNB-020-543-00
|
6 non-captive | (8) 4048-SSTP (8) 4072-SSTP |
(288) Single Splices OR (576) Double Stacked (1152) Mass Fusion Splice |
Min 0.3" (7.62 mm) Max 1.0" (25.4mm) |
10 lbs. | Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene |
UL 1863 Certified IEC60950 IP68 GR-771 |
NPNB-020-544-00
|
6 non-captive | (8) 4144-SSTP | (576) Single Splices OR (1152) Double Stacked (2304) Mass Fusion Splice |
Min 0.3" (7.62 mm) Max 1.0" (25.4mm) |
17 lbs. | Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene |
UL 1863 Certified IEC60950 IP68 GR-771 |
