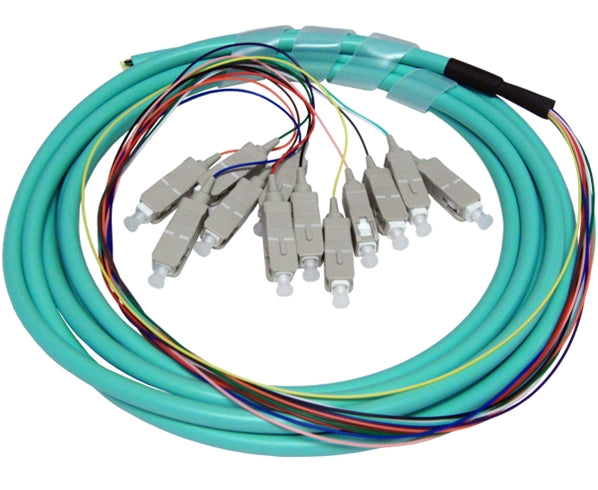

SC UPC 12 Fiber OM3 Multimode Pigtail, Jacketed, 3M
SC Fiber Pigtail, 12 Strand Jacketed, 3 Meter (9.84 feet), OM3 Multimode
Available in Single Mode with APC/UPC Polish Types or in Multimode OM1/OM3
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. Each strand is terminated on one end and the other end is left blunt so that it can be spliced to your drop cable. Our fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space. These SC pigtails are available in Single Mode, OM1 Multimode, and OM3 Multimode pigtail designs.
Be sure to take a look at our splice trays to ensure that your fusion splices are well protected. We also offer all of the fiber optic termination tools that you would need.
- Protective outer jacket, which can easily be removed for tighter spaces.
- Pre-terminated fiber to reduce installation time and ensure accuracy.
- Available in Single Mode APC, Single Mode UPC, Multimode OM1, and 10G Multimode OM3.
- 12 SC connectors ready to plug directly into an adapter panel.
Fiber Type: Multimode OM3
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Fiber pigtails are great for splicing inside of wall mount fiber enclosures and fiber patch panels. Also, ensure the protection of your fusion splices by using a splice tray and fusion splice sleeves.
Other helpful tools when working with fiber optic pigtails:
- Fiber stripper
- Fiber cleaver
- Fusion splicer
