Description:

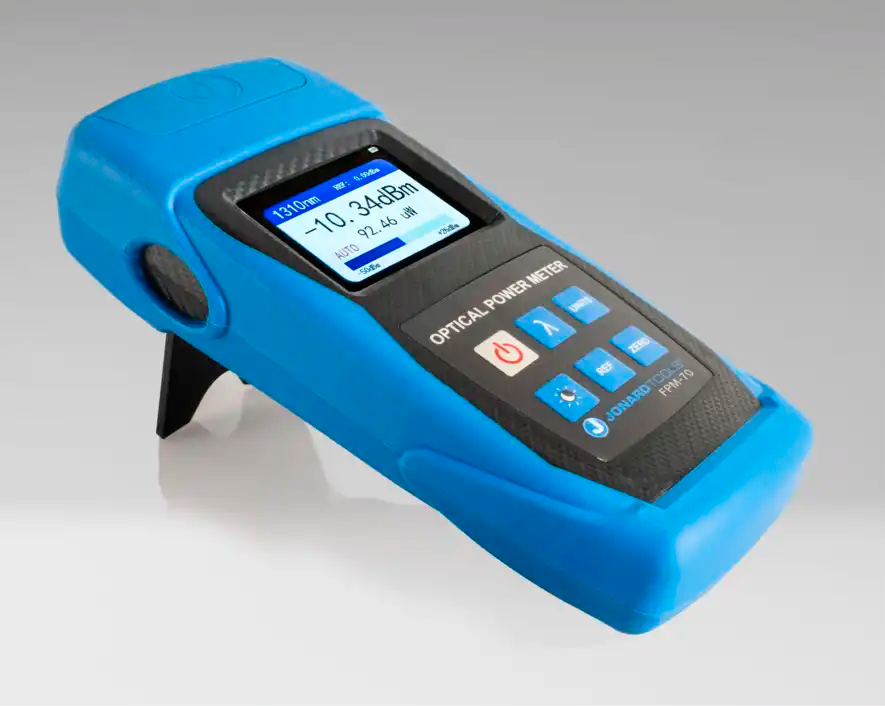

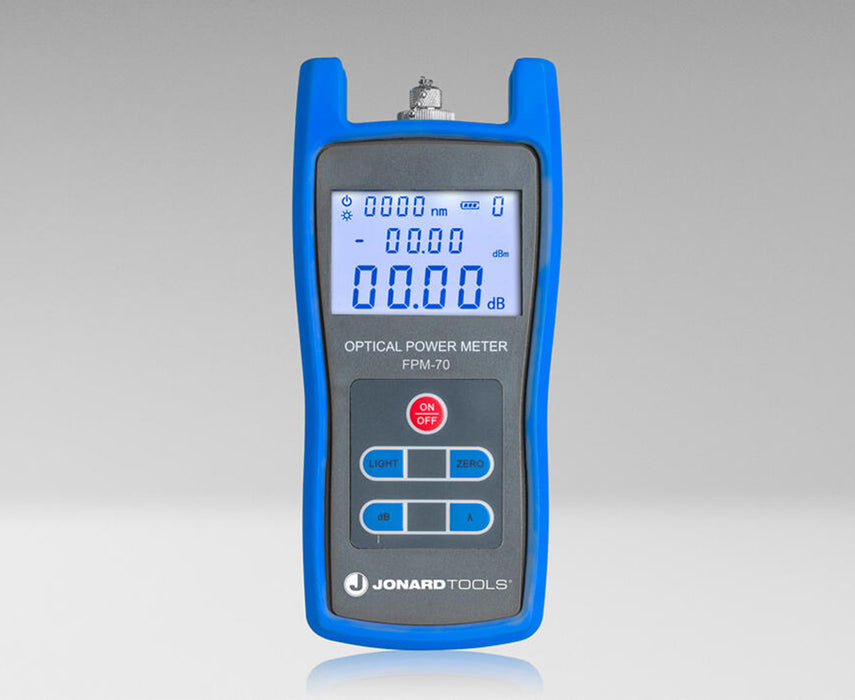

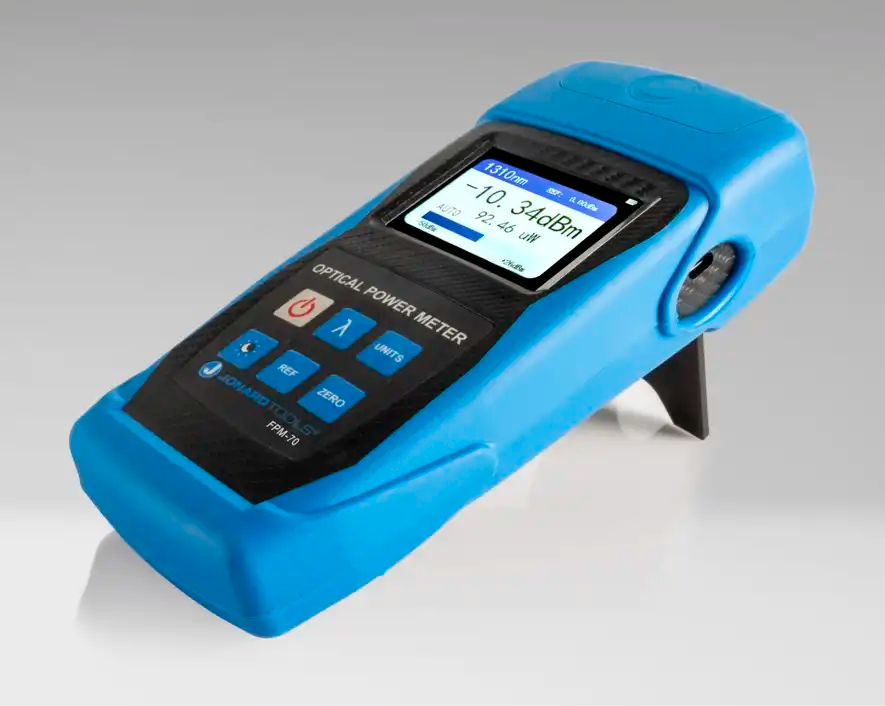

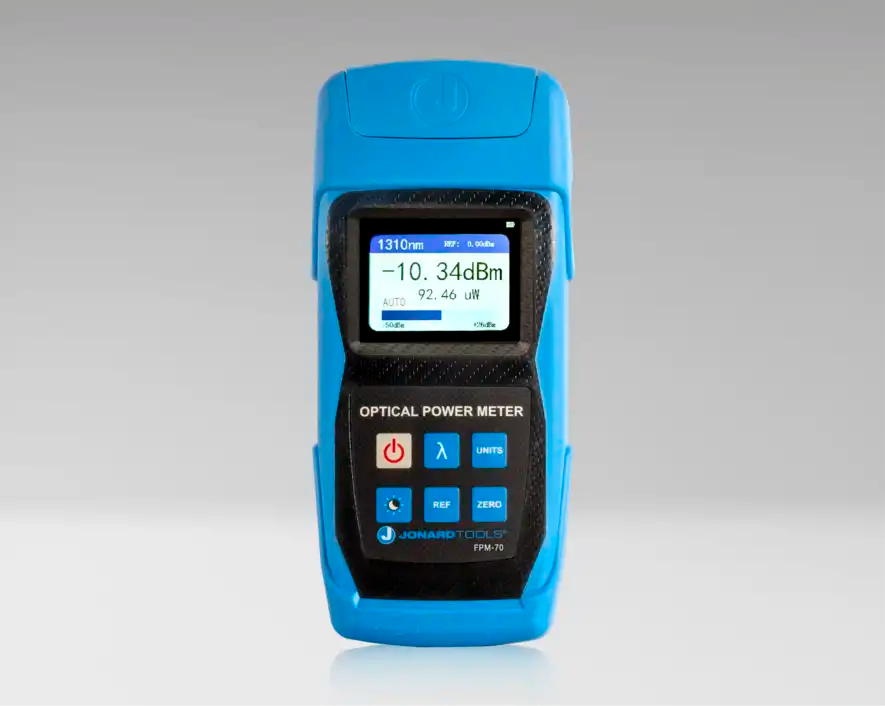

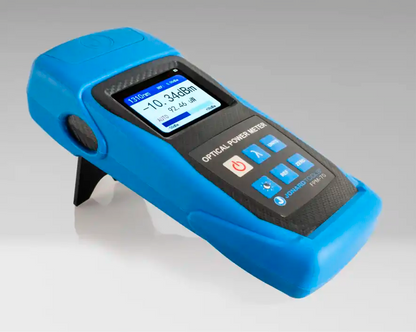

Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters
Primarily used in long haul applications, this fiber optic power meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables.
Features:
- Power measurement range of -70 dBm to +6 dBm, perfect for long distance or long haul telecom, coax, and fiber optic cables
- Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
- Special function of the unit allows the device to be manually calibrated as needed
- Includes FC and SC adapters to connect to PC/UPC/APC FC and SC connectors
- Also includes an LC adapter to connect to PC/UPC LC connectors
- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
Specifications:
| Connector Types |
FC, SC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
| Calibrated Wavelengths (nm) |
850, 980, 1300, 1310, 1490, 1550, 1625, 1650 |
| Detector Type |
InGaAs |
| Measurement Range |
-70 dBm to +6 dBm |
| Single Mode Range |
980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB |
| Multi Mode Range |
850, 1300 nm, ≤ ± 0.8 dB |
| Resolution |
0.01 dB |
| Operating Time |
≥ 130 hours |
| Battery Type |
(3) AA batteries |
| Dimensions |
7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm) |
| Weight | 1.5 lb (681 g) |
| UPC # | 810053350478 |

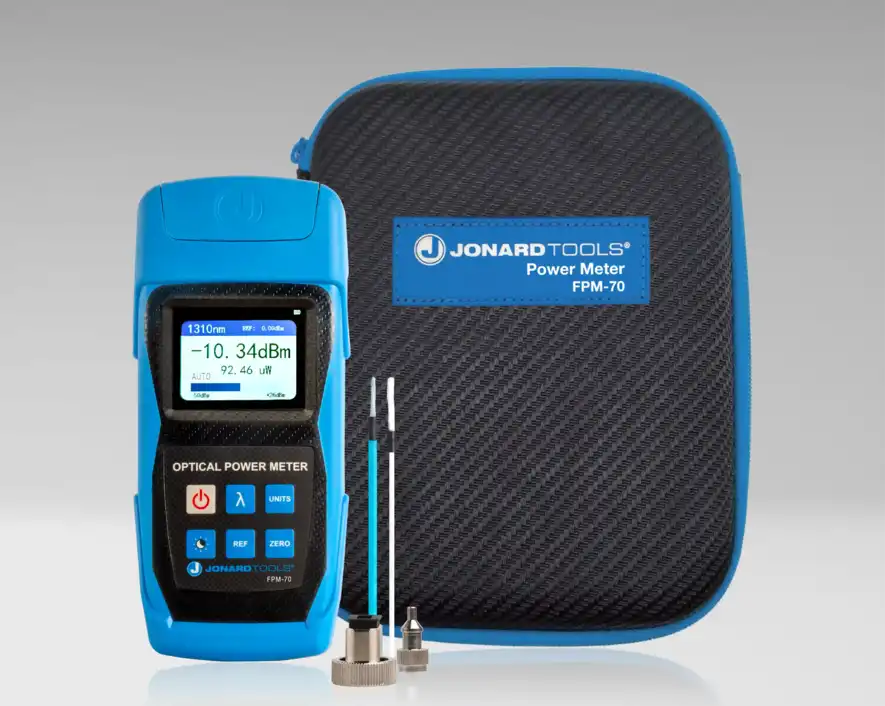

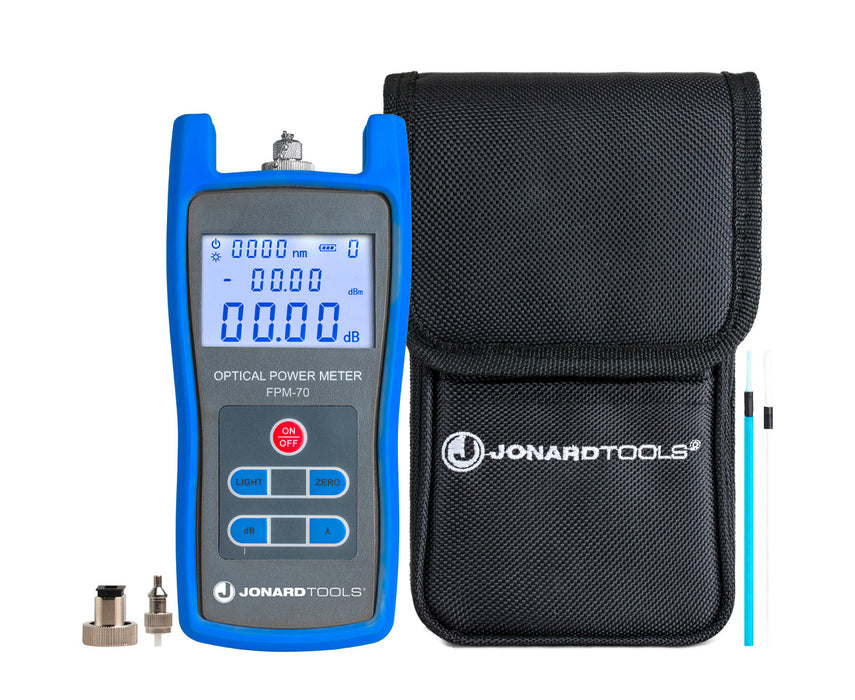

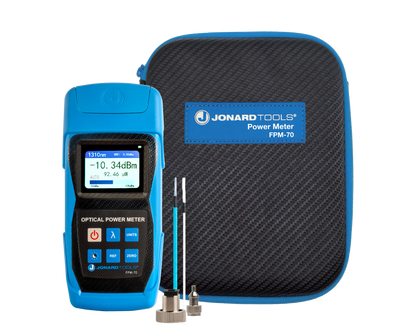

What’s In The Box:

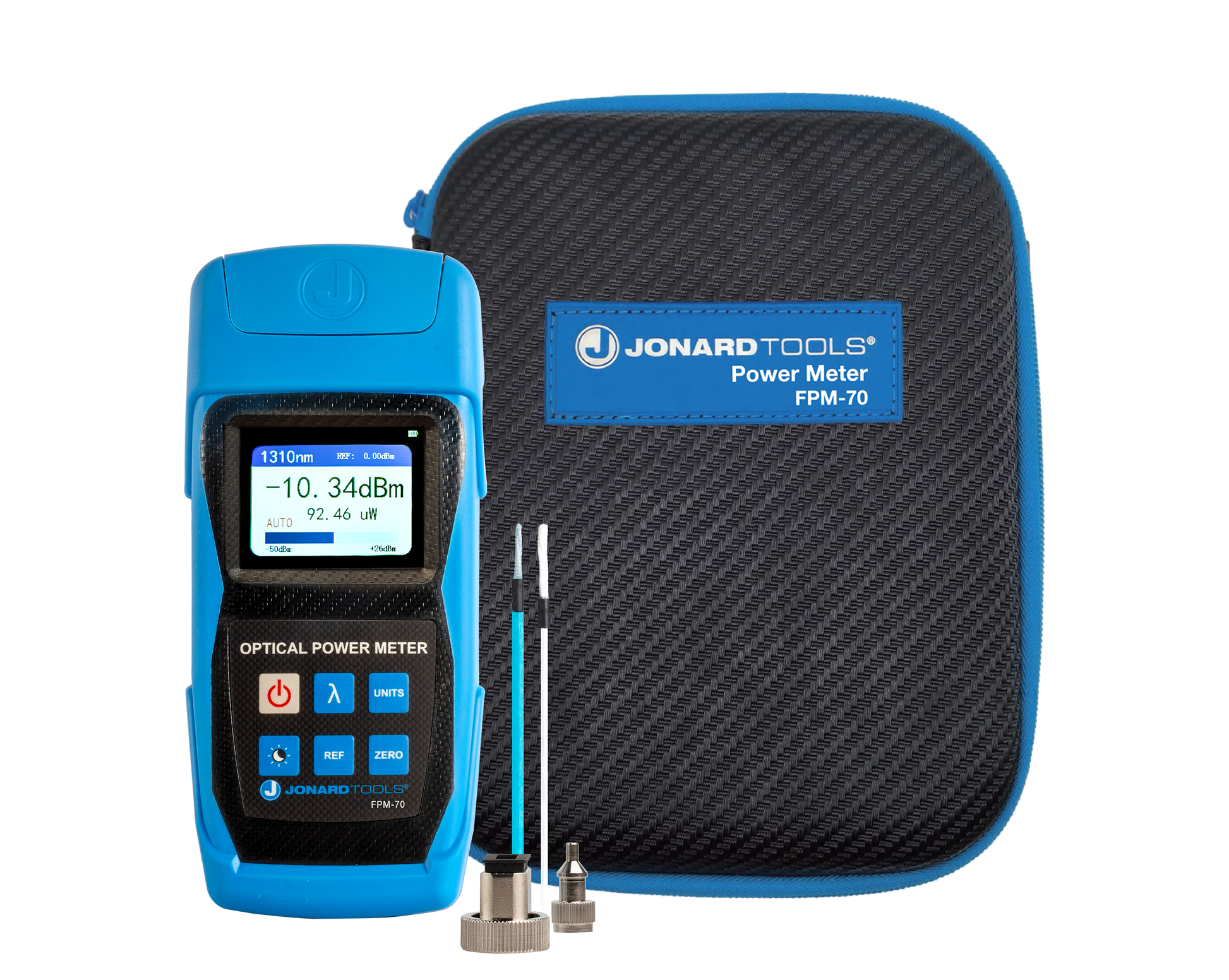

- Fiber Optic Power Meter (-70 dBm to +6 dBm)
- FC Adapter (PC/UPC/APC)
- SC Adapter (PC/UPC/APC)
- LC Adapter (PC/UPC)

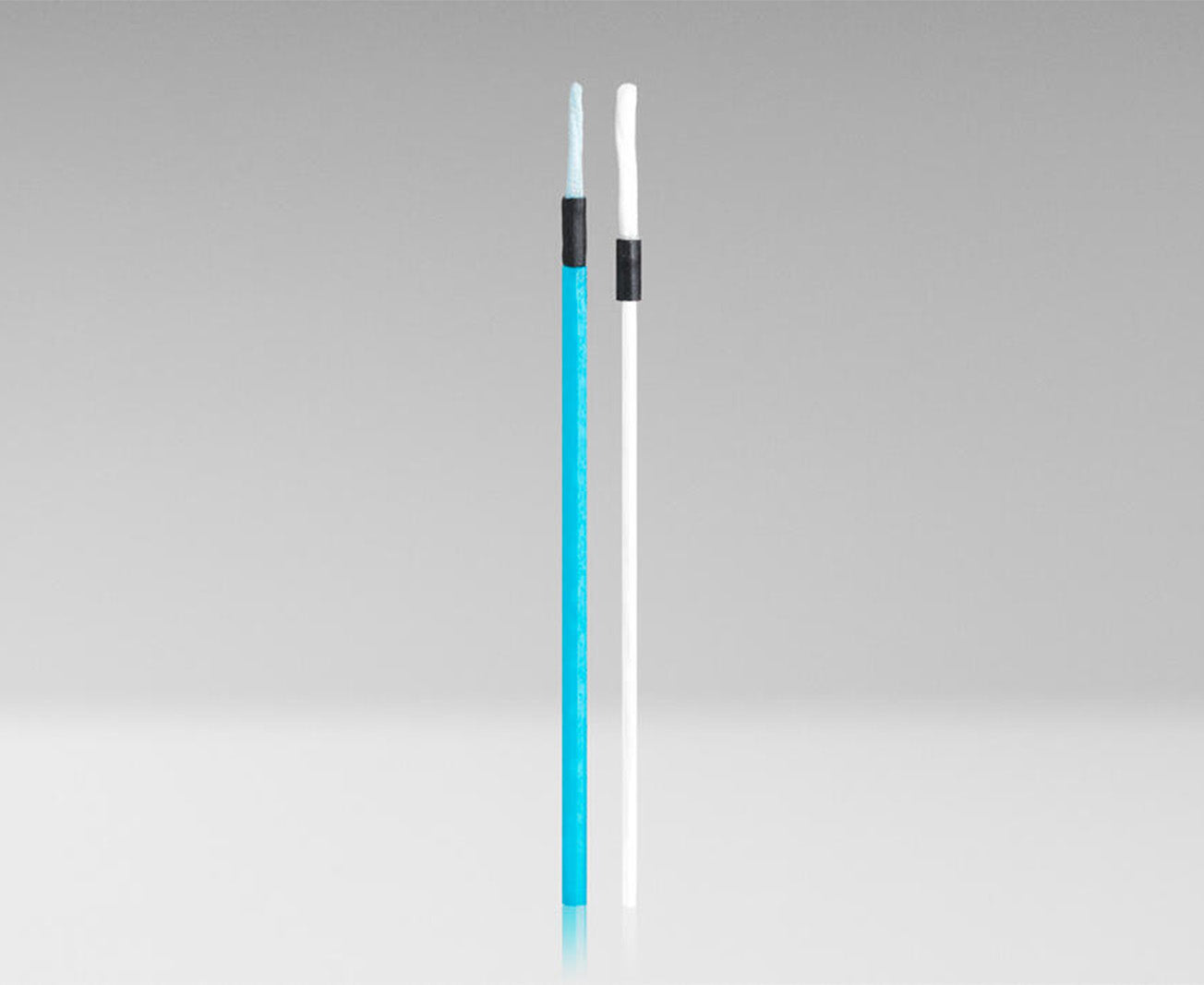

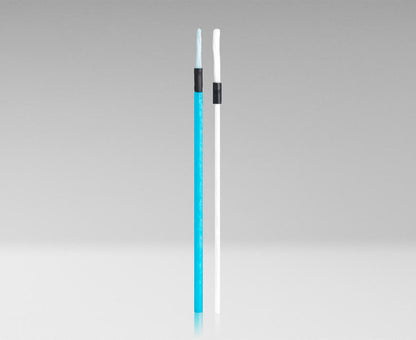

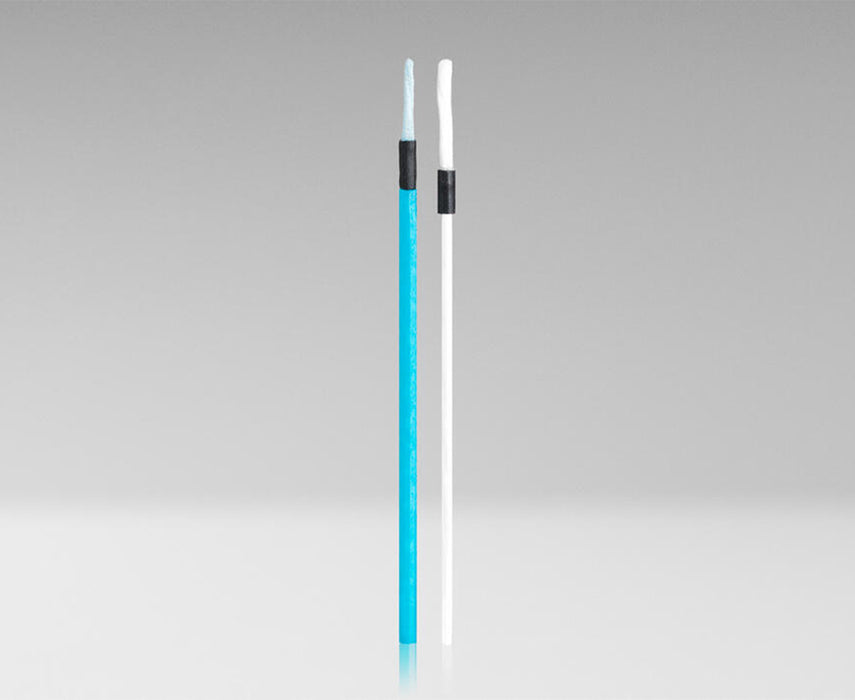

- (2) Cleaning Swabs
- Protective Cover

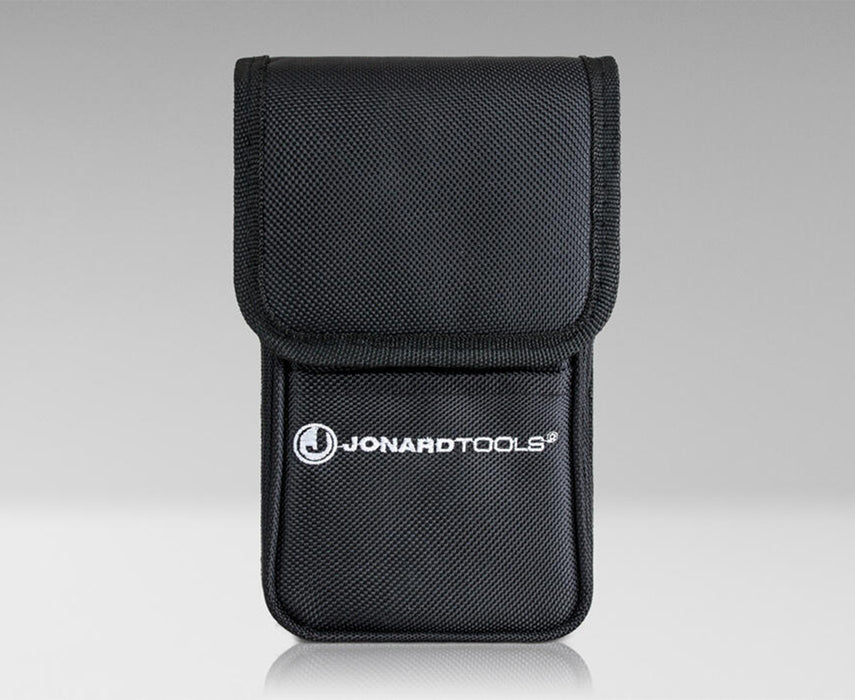

- Nylon Carry Case
- (3) AA Batteries (required for operation)
- Instruction Manual
