Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
BY Jonard Tools
Regular price
$393.95 USD
Regular price
Sale price
$393.95 USD
Unit price
/
per
SKU: SKU: FPM-55
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsDescription
Features
Specifications
What’s In The Box

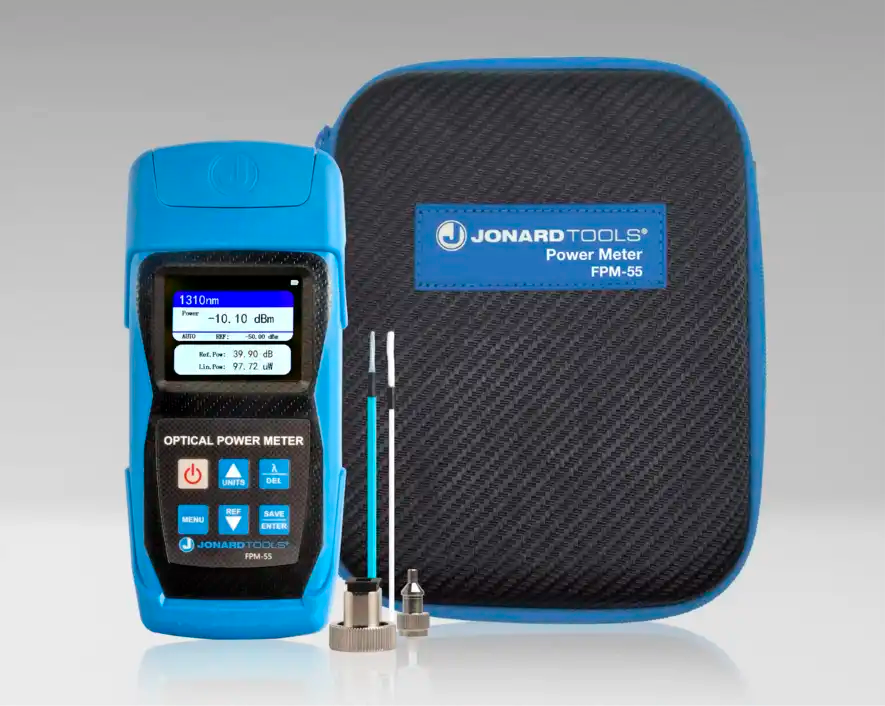

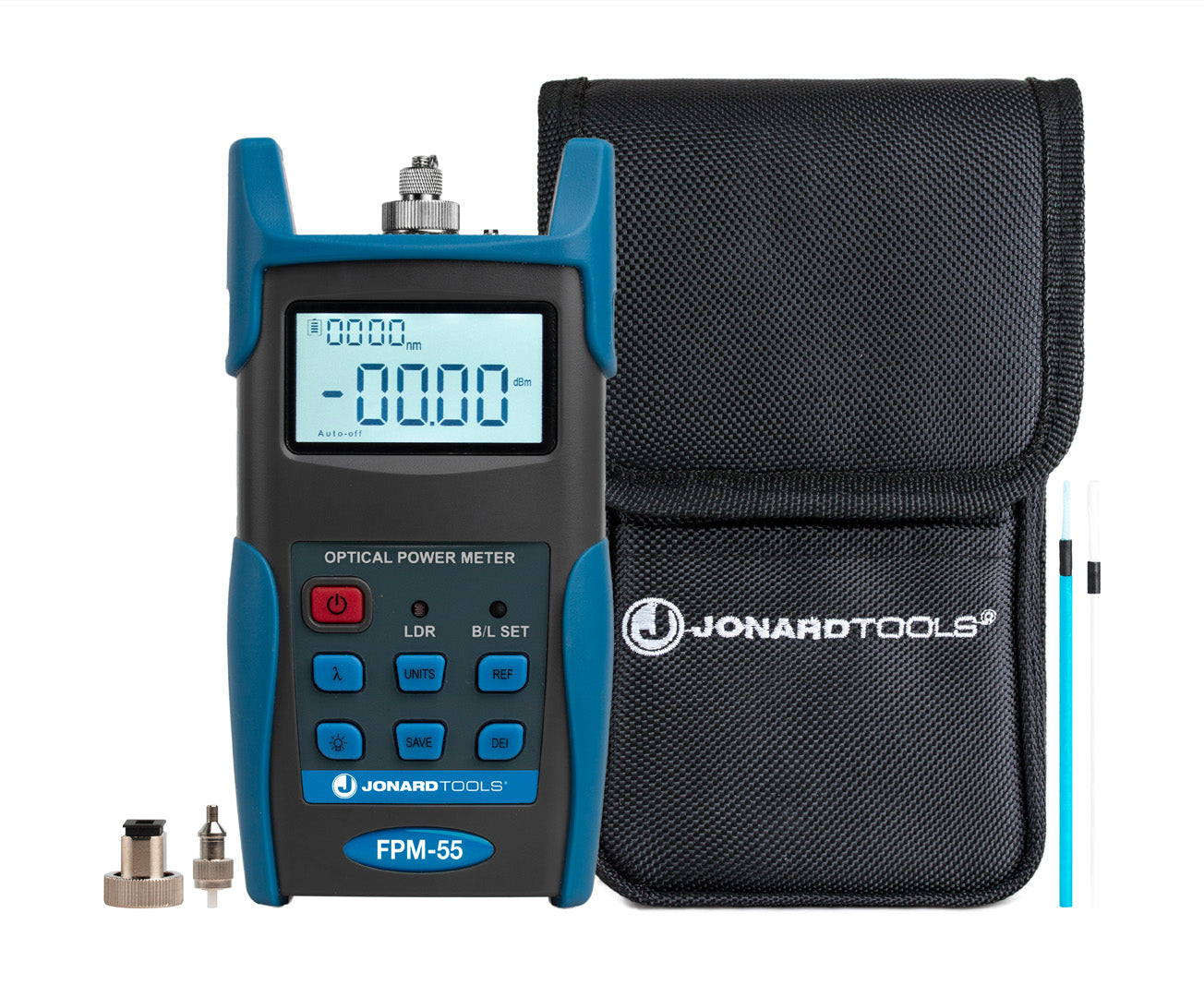

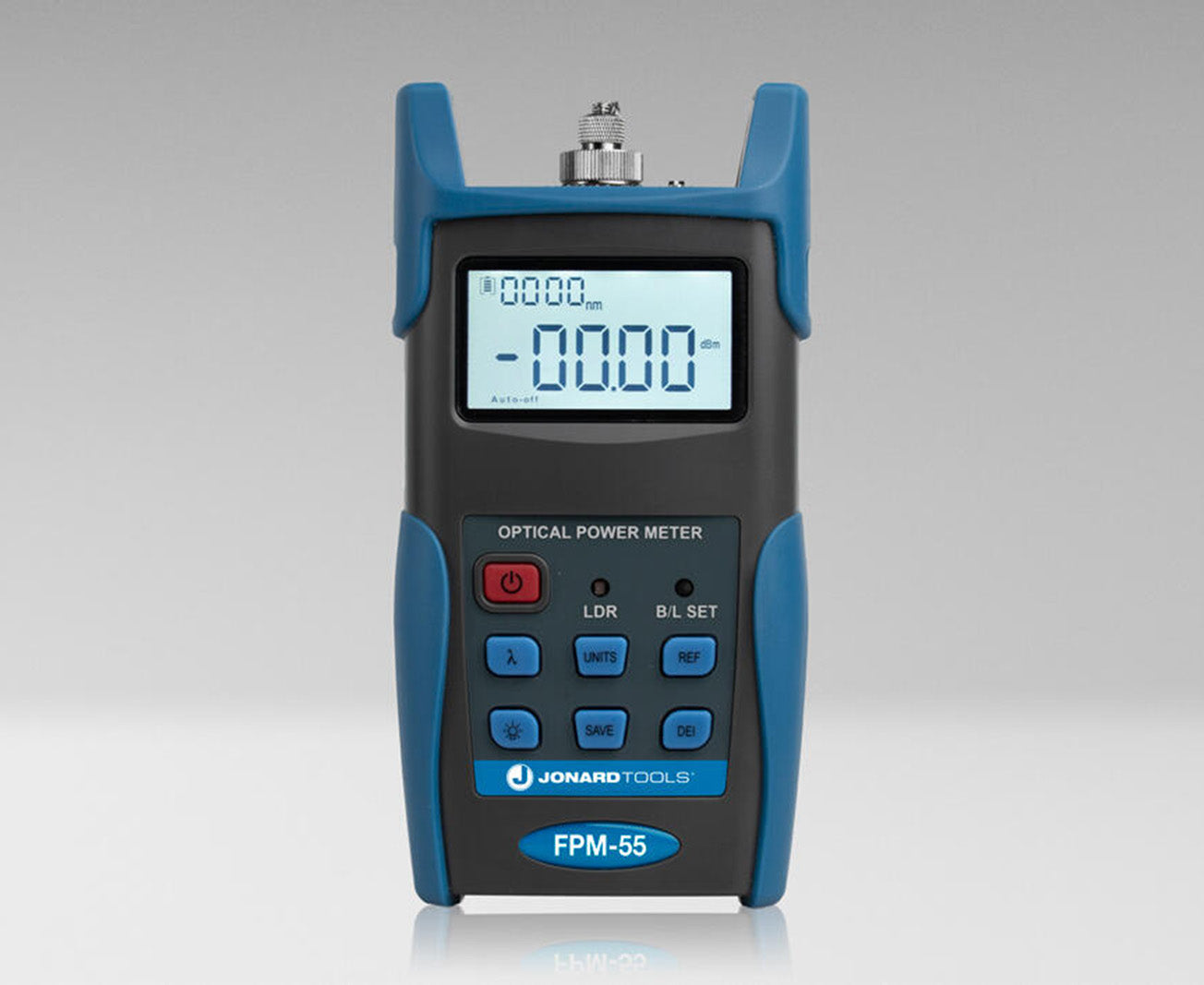

Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables.
Features
- Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
- Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
- Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
- Stores up to 1,000 data entries, which can be downloaded via USB
- Reference power level can be set up and stored via the included software
- Auto-off function can be turned on or off

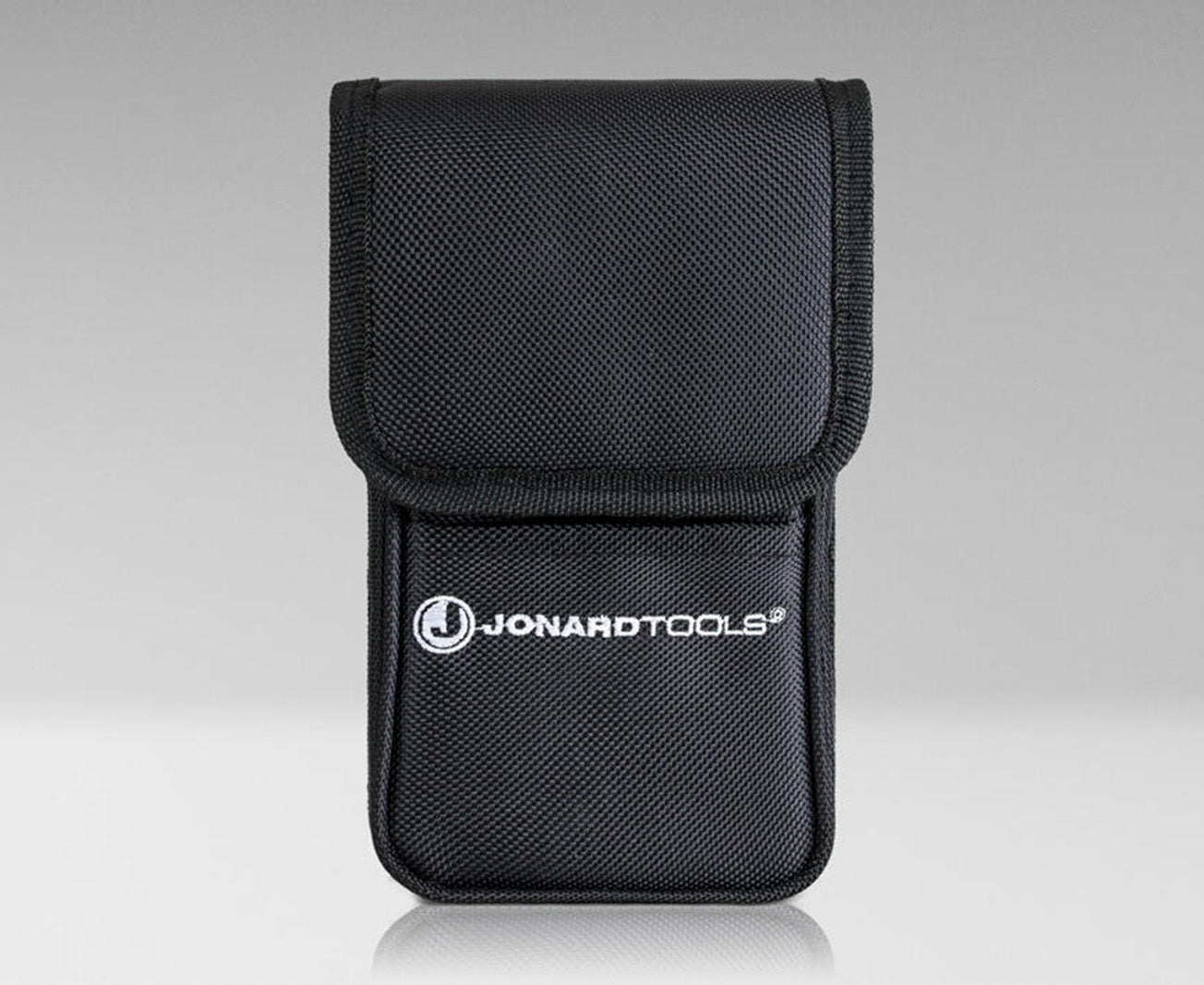

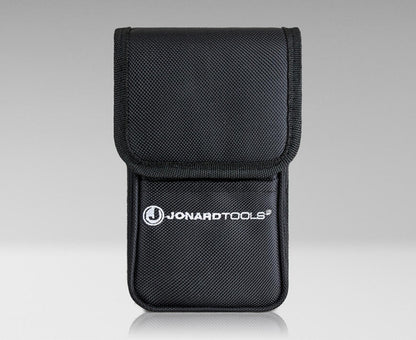

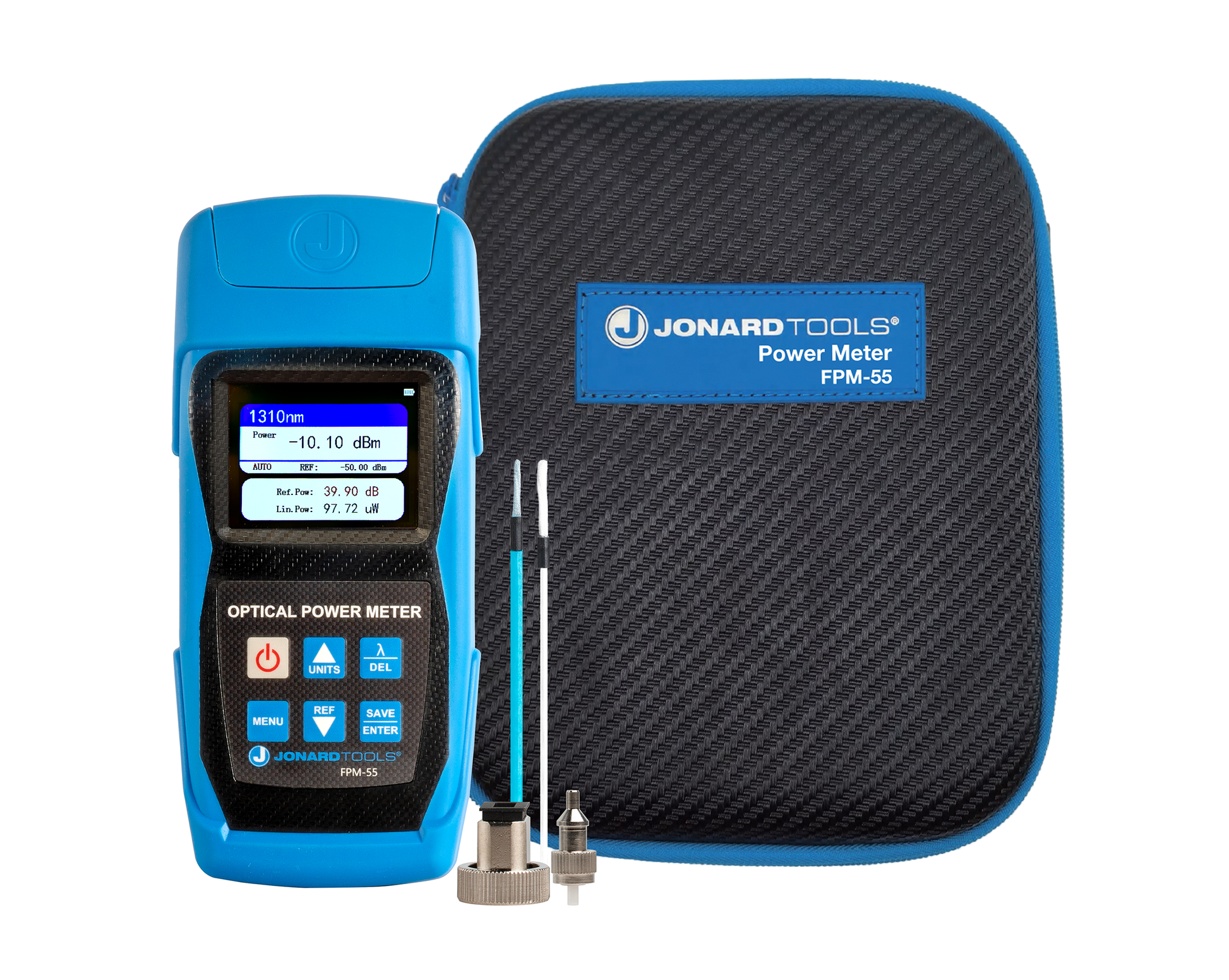

- Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only
Specifications
| Connector Types | FC, SC (APC/PC/UPC) & LC (PC/UPC) |
| Calibrated Wavelengths (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 |
| Detector Type | InGaAs |
| Measurement Range | -50 dBm to +26 dBm |
| Single Mode Range | 980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB |
| Multi-Mode Range | 850, 1300 nm, ≤ ± 0.8 dB |
| Data Storage Capacity | 1000 entries |
| Resolution | 0.01 dB |
| Operating Time | 200 hours (without backlight) |
| Battery Type | (3) AA batteries |
| Dimensions | 6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm) |
| Weight | 0.66 lb (299.64 g) |
| UPC # | 810053350416 |
What’s In The Box
- Qty 1 - Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
