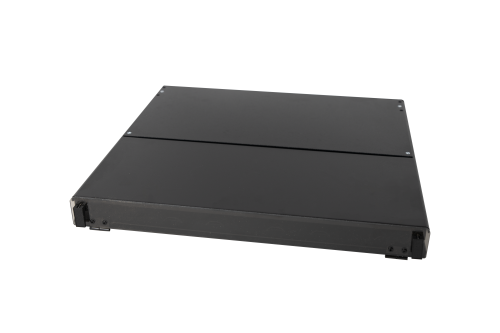

Fiber Patch and Splice Panel, High Density, Slide-Out, 1U, 3 Adapter Panel Capacity

Sold out
$344.38
SKU: FB23-4493RHD3

Made in USA

Adapter panels and splice trays NOT included

This fiber patch panel is only compatible with our FB24 adapter panel inserts and our FB25-3401STP36 Splice Trays. To find out more, give us a call or email us.

Description

Fiber Patch and Splice Panel, High Density, Slide-Out, 1RU, Holds 3 Adapter Panels and 2 Splice Trays, Up to 72 Splices, Black

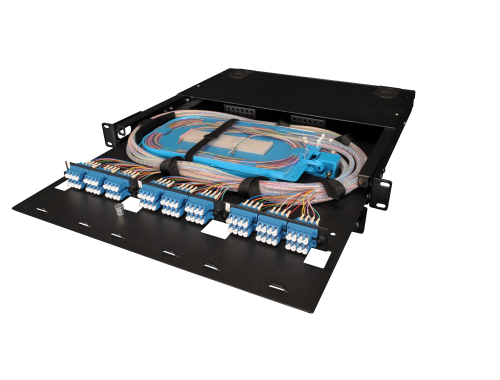

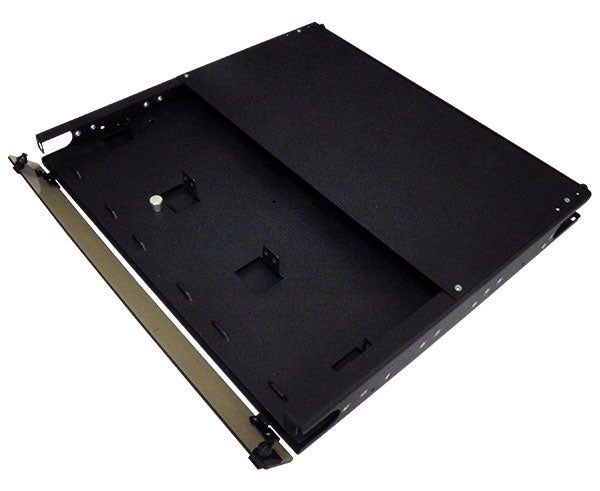

This rack mount fiber patch panel is a 1 Rack Unit (1RU) high-density distribution unit that provides high-density fiber capacity of up to 72 fibers when utilizing three of the LC Quad adapter panels shown and two of our 36 fiber splice trays (not included). The slide-out master panel tray locks into the retracted and fully extended positions. The fiber housing has a split top design, allowing for easy termination access while bridge lances that run along the front of the unit provide easy tie-down ability for fiber management entering or exiting the fiber enclosure.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

Features

  • 2 Splice Tray Capacity (FB25-3401STP36 - Sold Separately)

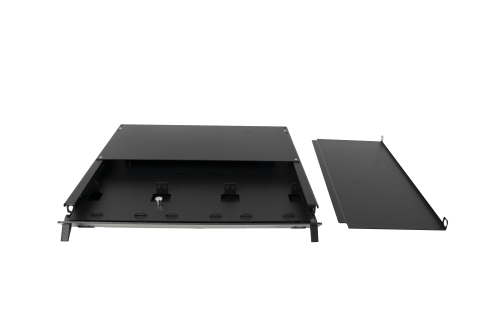

  • Convenient split-top design
  • Durable powder coat finish
  • Increased fiber management
  • Locking master panel

Specifications

Specifications

Capacity
Splice Trays: (2) 36 Fiber Splice Trays (FB25-3401STP36 - Sold Separately)
Panels: (3) LC Quad Panels (Sold Separately)
• APC Single Mode Panel (FB24-4025LCA24)
• UPC Single Mode Panel (FB24-4022LCC24)
• PC Multimode OM1 Panel (FB24-4021LCB24)
• PC Multimode 10G OM3/OM4 Panel (FB24-4024LCG24)
Dimensions
Depth: 16"
Height: 1.75"
Width: 17"
Weight: 22 lbs
Physical Properties
Color: Black
Material: 0.060" Powder Coated Steel
