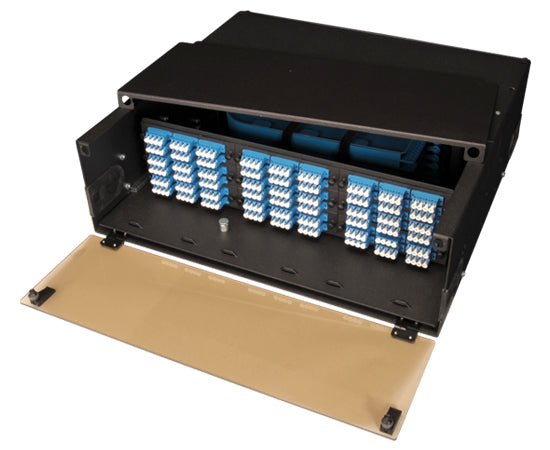

Fiber Patch and Splice Panel, High Density, Slide-Out, 3U, 9 Adapter Panel Capacity

$466.02
SKU: FB23-4495RHD9
Various lead times may apply to this product. Please contact us for more details.

Made in USA

Adapter panels and splice trays NOT included

This fiber patch panel is only compatible with our FB24 adapter panel inserts and our FB25-3401STP36 Splice Trays. To find out more, give us a call or email us.

Description

Fiber Patch and Splice Panel, High Density, Slide-Out, 3RU, Holds 9 Adapter Panels and 6 Splice Trays, Up to 216 Splices, Black

This rack mount fiber patch panel is a 3 Rack Unit (3RU) high density distribution unit that provides high density fiber capacity of up to 216 fibers when utilizing 9 of the LC Quad adapter panels shown and 6 of our FB25-3401STP36 - 36 fiber splice trays (not included). The slide out master panel tray locks into the retracted and fully extended positions. The fiber housing has a split top design, allowing for easy termination access while bridge lances that run along the front of the unit provide easy tie down ability for fiber management entering or exiting the fiber enclosure.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

Features

  • 216 splice capacity
  • Convenient split-top design
  • Durable powder coat finish
  • Increased fiber management
  • Locking master panel

Specifications

Specifications

Capacity

Splice Trays: (6) 36 Fiber Splice Trays (FB25-3401STP36 - Sold Separately)
Panels: (9) LC Quad Panels (Sold Separately)
               APC Single Mode Panel (FB24-4025LCA24)
               UPC Single Mode Panel (FB24-4022LCC24)
               PC Multimode OM1 Panel (FB24-4021LCB24)
               PC Multimode 10G OM3/OM4 Panel (FB24-4024LCG24)

    Dimensions

    Depth: 15.94"
    Height: 5.25"
    Width: 17"

      Physical Properties

      Color: Black
      Material: 0.060" Powder Coated Steel
