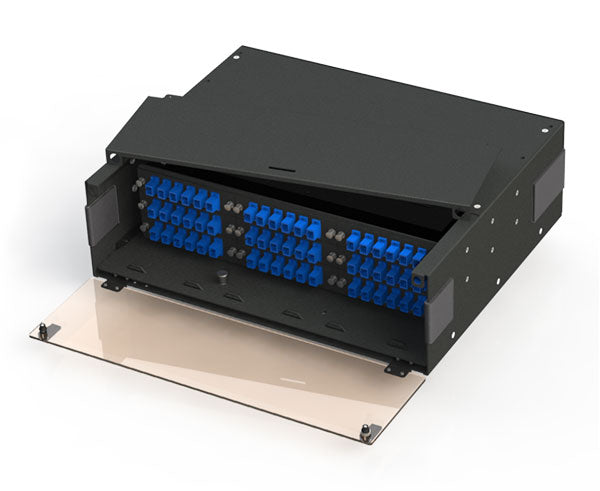

Fiber Patch and Splice Panel, Slide-Out, 3U, 9 Adapter Panel Capacity

$227.99
SKU: FB23-4107RS9
Various lead times may apply to this product. Please contact us for more details.
Adapter panels and splice trays NOT included.
This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3996STA24 splice tray. To find out more, give us a call  or email us at.

Description

Fiber Patch and Splice Panel, Slide-Out, 3RU, Holds 9 Adapter Panels and 5 Splice Trays, 120 Splice Capacity, Steel, Black

Compatible with Splice Tray FB25-3996STA24

This rack mount fiber patch panel is a 3 Rack Unit (3RU), 9 termination panel, 19" and 23" rack mount fiber distribution unit designed to support patching and splicing in one unit. The fiber housing has a slide out master panel with an integrated tray stop to prevent over extension of fiber cables. The drawer slides are nylon which makes the drawer slide in and out easier. The fiber enclosure also has a two-piece top and swell latch door to allow for easy access to the adapter panels. The FB23-4107RS9 is one of a family of units that support fiber terminations in rack mount applications.

Features

  • Can be ordered fully terminated with cabling or pigtails.
  • Removable top for ease of access.
  • Slide out panel design supports storage of splice trays.
  • Supplied with mounting hardware for 19" or 23" mounting.

Specifications

Capacity

Splice Trays: (5) 24 Fiber Aluminum Splice Trays Sold Separately
Panels: (9) Panels Sold Separately

Dimensions

Depth: 14"
Height: 5.25"
Width: 17"
Weight: 24 lbs

Physical Properties

Color: Black or Off White (special order)
Material: .060" Powder Coated Steel
