Fiber Patch Panel, 24 Port, Multimode SC Simplex, 1U

$139.99
SKU: FB11-2845-24C/RL

Looking for a single mode or 10 gig option for this fiber patch panel? Take a look at our SC/UPC single mode adapters or SC/PC 10 gig adapters, which are directly swappable for the ones that are loaded in this multimode panel.

Description

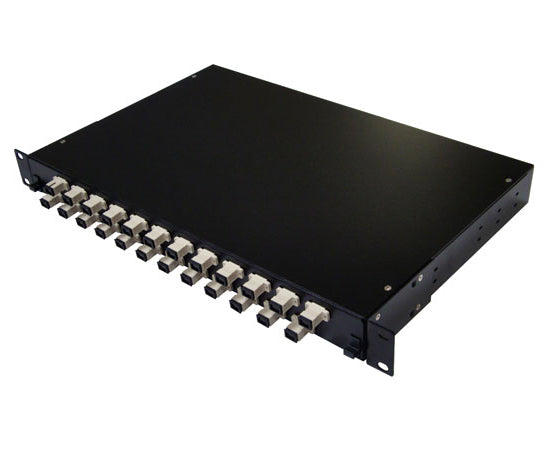

24 Port 1U Fiber Patch Panel Preloaded with Simplex Multimode SC Connectors

This rack mount fiber patch panel is designed to fit on a standard 19" rack and provide optimal protection for your fiber optic applications. There are two cable entry points on the back of the fiber housing fitted with rubber grommets to protect the fiber optic cable from damage. Along with being loaded with 24 SC connections, each fiber enclosure includes one cable routing spool and two 12 fiber splice trays. Also included are zip ties, cable routing clamps, mounting screws, fiber splice sleeves and installation instructions.

To make this a complete unit ready for fusion splicing and patching out your existing or newly purchased fiber optic cable, don't forget to add two 12 strand SC fiber pigtails to your order.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Specifications

Capacity

Splice Trays: (2) 12 Fiber Splice Trays (Included)
Connections: 24 SC Simplex Connections

    Physical Properties

    Depth: 11"
    Height: 1.75"
    Width: 19"
    Color: Black
    Material: Steel
    Tray Material: Aluminum


    Spec Sheet
