Fiber Patch Panel, Slide-Out Termination and Splice Combo Shelves, 4U

$271.99
SKU: FB23-3925RPS4
Various lead times may apply to this product. Please contact us for more details.
Made in USA
One (1) splice tray FB25-4000STP24 included. Additional splice trays and adapter panels sold separately.
This fiber patch panel is only compatible with our FB24 series of adapter panel inserts and either FB25-4000STP24 splice tray or FB25-3401STP36, which are sold separately. To find out more, give us a call or email us.

Description

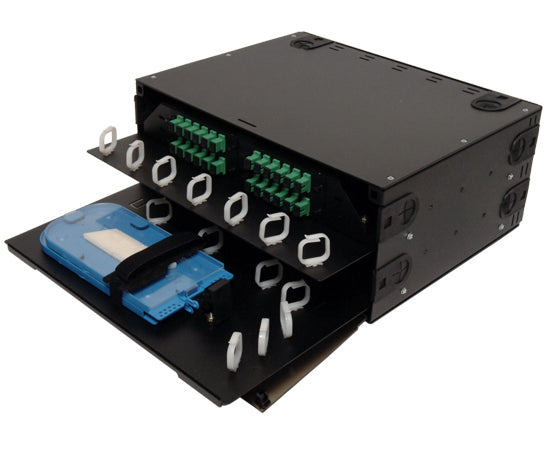

Fiber Patch Panel, Slide-Out Patch and Splice Combo, 4RU, Holds 4 Adapter Panels and Up To 4 Splice Trays, Black

This rack mount fiber patch panel is a 4 Rack Unit (4RU) combination 19" or 23" rack mounted termination and splice shelf. The fiber housing has a 4 position termination panel in an upper slide out shelf with a lower compartment with a 4 splice tray slide out shelf, which allows for a fully front access application. Blank panels are available to fill unused panel positions. The FB23-3925RPS4 is one of a family of units that support fiber termination in rack mount applications.

Note: One FB25-4000STP24 splice tray is included with this panel (Additional splice trays are sold separately).

Features

  • Can be ordered fully terminated with cabling or pigtails.
  • Includes one splice tray FB25-4000STP24 with 24 single fusion splice capacity.
  • Individual splice tray compartment for organization.
  • Supplied with mounting hardware for 19" or 23" mounting.

Spec Sheet

Capacity
  • Splice Trays (Sold Separately)
    • Fits four 24 Fiber Splice Trays (FB25-4000STP24)
    • Fits four 36 Fiber Splice Trays (FB25-3401STP36)
Dimensions
  • Depth: 14"
  • Height: 7"
  • Width: 17"
  • Weight: 17 lbs
Physical Properties
  • Color: Black
  • Material: 0.060" Powder Coated Aluminum
