Fiber Patch Panel, Slide-Out Termination and Splice Combo Shelves, 8.5U

$641.99
SKU: FB23-3926RPS12
Various lead times may apply to this product. Please contact us for more details.

Made in USA
One (1) splice tray FB25-4000STP24 included. Additional splice trays and adapter panels sold separately.

This fiber patch panel is only compatible with our FB24 series of adapter panel inserts and either FB25-4000STP24 splice tray or FB25-3401STP36, which are sold separately. To find out more, give us a call or email us.

Description

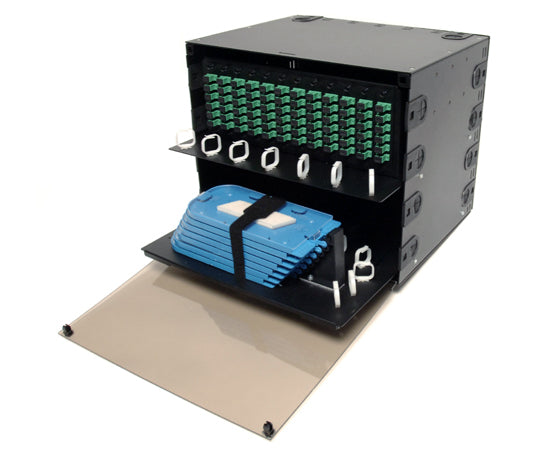

Fiber Patch Panel, Slide-Out Patch and Splice Combo, 8.5RU, Holds 12 Adapter Panels and Up To 8 Splice Trays, Black

This rack mount fiber patch panel is a 8.5 Rack Unit (8.5RU) combination 19" or 23" rack mounted termination and splice shelf. The fiber housing has a 12 position termination panel in an upper slide out shelf with a lower compartment with a 8 splice tray slide out shelf, which allows for a fully front access application. Blank panels are available to fill unused panel positions. The FB23-3925RPS4 is one of a family of units that support fiber termination in rack mount applications.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Note: One FB25-4000STP24 splice tray is included with this panel (Additional splice trays are sold separately).

Features

Features

  • Can be ordered fully terminated with cabling or pigtails.
  • Includes one splice tray FB25-4000STP24 with 24 single fusion splice capacity.
  • Individual splice tray compartment for organization.
  • Supplied with mounting hardware for 19" or 23" mounting.

Specifications

Specifications

Capacity

Adapter Panels: 12 Adapter Panels (Sold Separately)

Splice Trays:  8 Splice Trays (Sold Separately)
                         - (8) 24 Fiber Splice Trays (FB25-4000STP24)
                         - (8) 36 Fiber Splice Trays (FB25-3401STP36)

    Dimensions

    Depth: 14"
    Height: 14.88"
    Width: 17"
    Weight: 21 lbs

      Physical Properties

      Color: Black
      Material: 0.060" Powder Coated Aluminum


      Spec Sheets
