Fiber Splice Tray, 24 Single Fusion Splices, Aluminum, 0.5"x12.25"x4"

$31.99
SKU: FB25-3996STA24
This splice tray is only compatible with our FB23 fiber patch panels and FB23 wall mount enclosures. To find out more, give us a call or email us.

Description

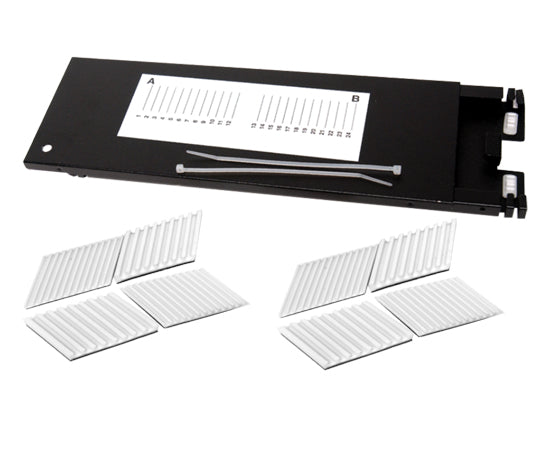

24 Single Fusion Fiber Splice Tray

Compatible with  FB23 Fiber Patch Panels and Wall Mount Enclosures

The FB25-3996STA24 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is fully compliant to industry specification Telcordia GR-769, Splice Organizer Assemblies for Optical Fibers.

The FB25-3996STA24 splice tray is designed to be installed into the FDUs or in the Optical Fiber Splice Closure. The tray is one of a family of units that support fiber splicing. Black, Aluminum. 0.5"x12.25"x4"

This tray is ideal for small to medium sized fiber splicing projects. This tray cradles up to 24 spliced fiber optic wires.

Features

  • 16 Mechanical splice capacity.
  • 24 Single fusion splice capacity.
  • Adhesive backed fiber insert holders and assorted cable ties included.
  • Provides protection and organization of fiber splices.

Specifications

Capacity

Single Fusion: 24 splices
Mechanical: 16 splices
Mass Fusion: 96 splices

Dimensions

Depth: 0.5"
Length: 12.25"
Width: 4"

Physical Properties

Material: Aluminum
Color: Black
