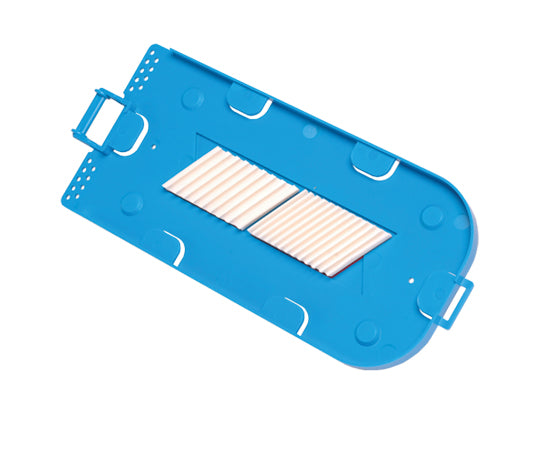

Fiber Splice Tray, 24 Single Fusion Splices, Plastic, 0.5in x 9.75in x 4.5in

SKU: FB25-4000STP24
Various lead times may apply to this product. Please contact us for more details.
Made in USA
This splice tray is only compatible with our FB23 fiber patch panels and FB23 wall mount enclosures. To find out more, give us a call or email us.


24 Single Fusion Fiber Splice Tray

Compatible with our FB23 Fiber Patch Panels and Wall Mount Enclosures

The FB25-4000STP24 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is equipped with a full set of organizers to support single and mass fusion splicing and is fully compliant to industry specification Telcordia GR-769, Splice Organizer Assemblies for Optical Fibers.

The FB25-4000STP24 clear covered splice tray is designed to be installed into the Optical Fiber Splice Closures as well as selected Fiber Rack Mounted FDUs. The tray is one of a family of units that support fiber splicing.

This tray is ideal for small to medium sized fiber splicing projects. This tray cradles up to 24 spliced fiber optic wires.


  • 16 Mechanical splice capacity.
  • 24 Single fusion splice capacity.
  • 48 Dual stacked single fusion splice capacity.
  • 96 Mass fusion splice capacity.
  • Adhesive backed fiber insert holders and assorted cable ties included.
  • Provides protection and organization of fiber splices.



Single Fusion: 24 splices
Dual Stacked Single Fusion: 48 splices
Mechanical: 16 splices
Mass Fusion: 96 splices


Depth: 0.5"
Length: 9.75"
Width: 4.5"

Physical Properties

Material: Plastic
Color: Blue base with clear cover
