This splice tray is compatible with our fiber patch 2 adapter panel, 4 adapter panel, 6 adapter panel, and 12 adapter panel. To find out more, give us a call or email us.
Description

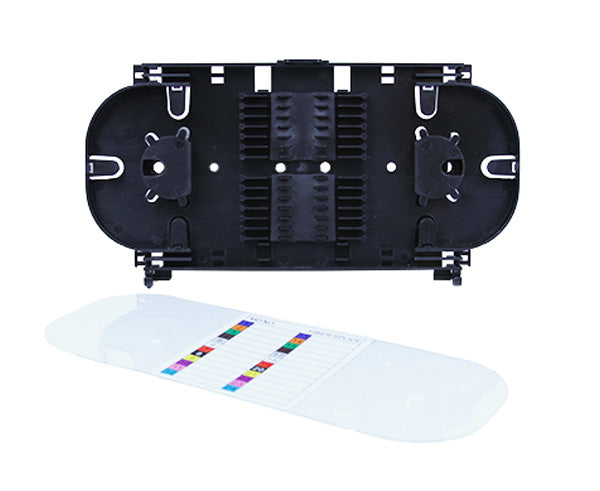

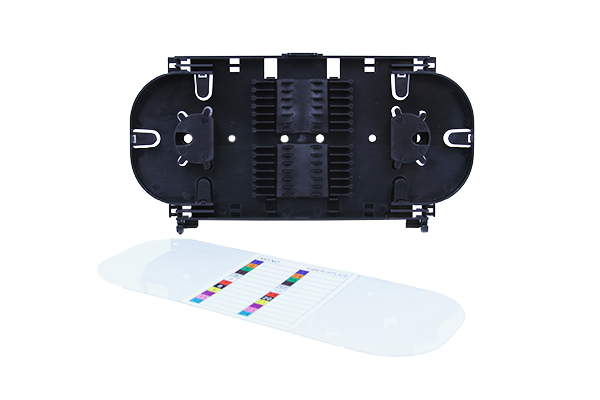

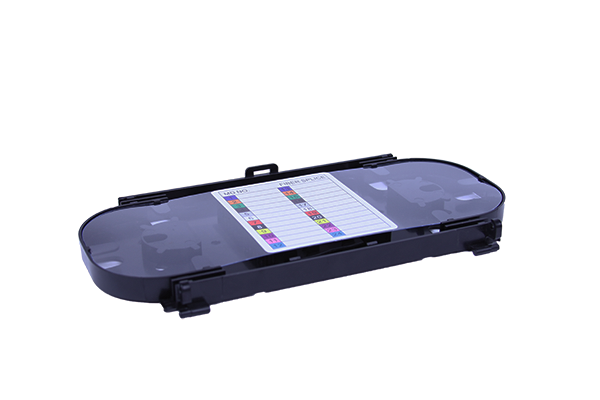

Splice Tray - Plastic 2x12 (24F) Single Fiber Splice Tray, Fits all FB36-27## WM series
The FB25-6217STP24 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is fully compliant to industry specification. The FB25-6217STP24 splice tray is designed to be installed into our FB36-27XX series of double door panels.The tray is one of a family of units that support fiber splicing. This tray measures 8.82" x 4.5" x 0.50".
This tray is ideal for medium sized fiber splicing projects. This tray cradles up to 24 spliced fiber optic wires.
Features
Features
- Made from light weight plastic coated with durable black paint
- 24 single fusion splice capacity
- Provides protection and organization of fiber splices.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CAPACITY | |
| Single Fusion | 24 Splices |
| DIMENSIONS | |
| Depth | 0.5" |
| Length | 8.82" |
| Width | 4.5" |
| PHYSICAL PROPERTIES | |
| Material | Plastic |
| Color | Black |
What's in the Box
What’s in the Box
- Qty 1 - Fiber Splice Tray, 24 Single Fusion Splices, Plastic, 8.82" x 4.5" x 0.50"
