Fiber Splice Tray, 24 Single Fusion Splices, Plastic Base, Aluminum Cover, 0.5"x12.25"x4"

SKU: FB25-3998STP24
Made in USA
This splice tray is only compatible with our FB23 fiber patch panels and FB23 wall mount enclosures. To find out more, give us a call or email us.

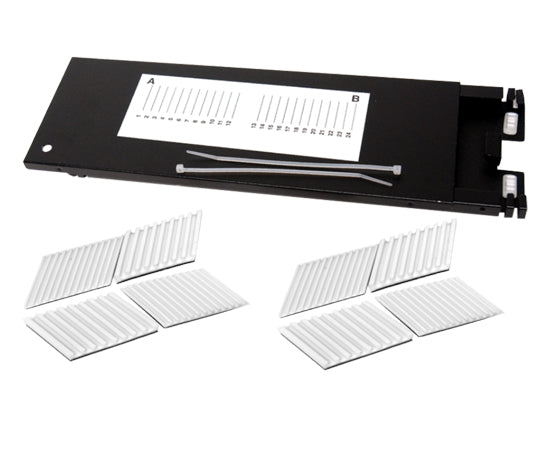

24 Single Fusion Fiber Splice Tray

Compatible with FB23 Fiber Patch Panels and Wall Mount Enclosures

The  FB25-3998STP24 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is fully compliant to industry specification Telcordia GR-769, Splice Organizer Assemblies for Optical Fibers.

The FB25-3998STP24 splice tray is designed to be installed into the FDUs or in the Optical Fiber Splice Closure. The tray is one of a family of units that support fiber splicing. Black, Plastic base with aluminum cover. 0.5"x12.25"x4"

This tray is ideal for small to medium sized fiber splicing projects. This tray cradles up to 24 spliced fiber optic wires.


  • 16 Mechanical splice capacity.
  • 24 Single fusion splice capacity.
  • 96 Mass fusion splice capacity.
  • Adhesive backed fiber insert holders and assorted cable ties included.
  • Protects and organizes fiber splices.



Single Fusion: 24 splices
Mechanical: 16 splices
Mass Fusion: 96 splices


Depth: 0.5"
Length: 12.25"
Width: 4"

Physical Properties

Material: Aluminum
Color: Black
