This splice tray is compatible with our FB36-6153R3 & FB36-6260R6 fiber patch panel. To find out more, give us a call or email us.
Description
Description
36 Single Fusion Fiber Splice Tray
Compatible with our FB36-6153R3 fiber patch panel

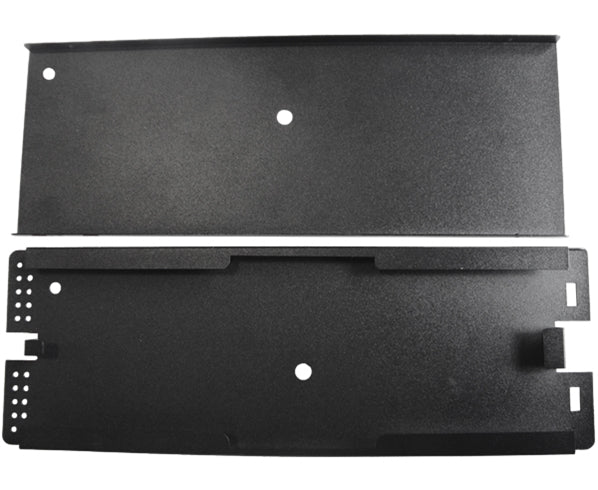

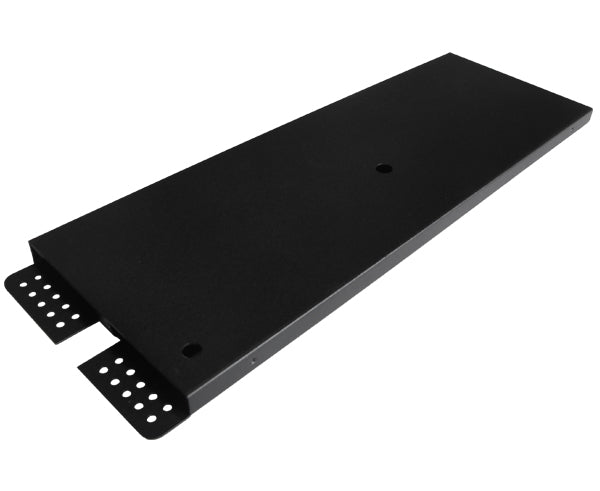

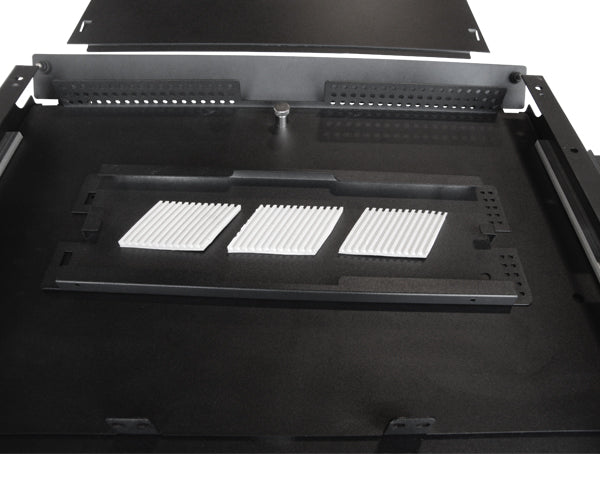

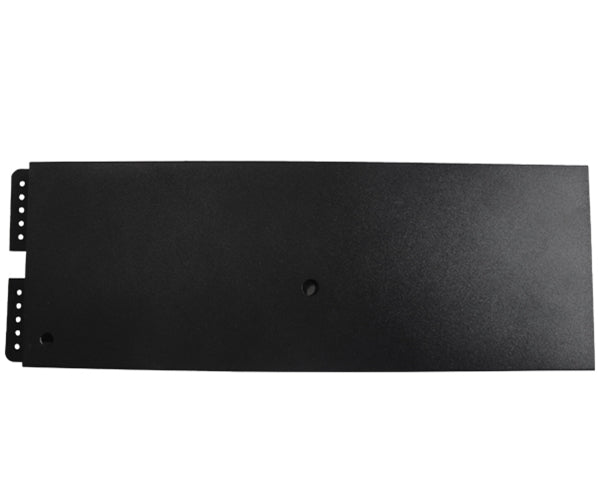

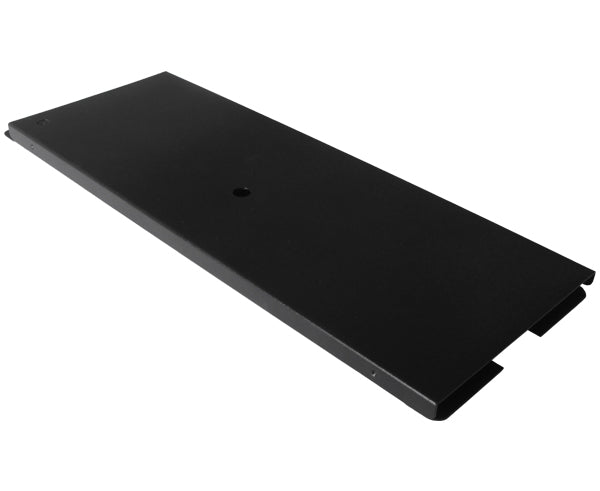

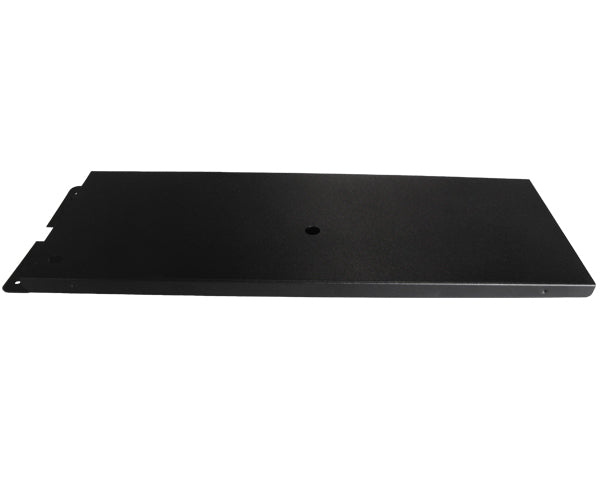

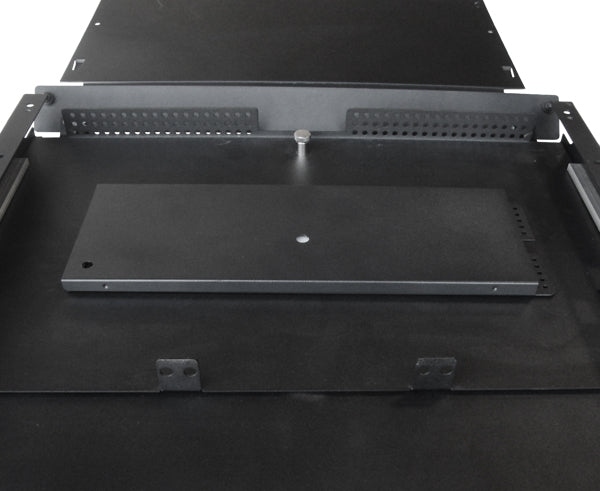

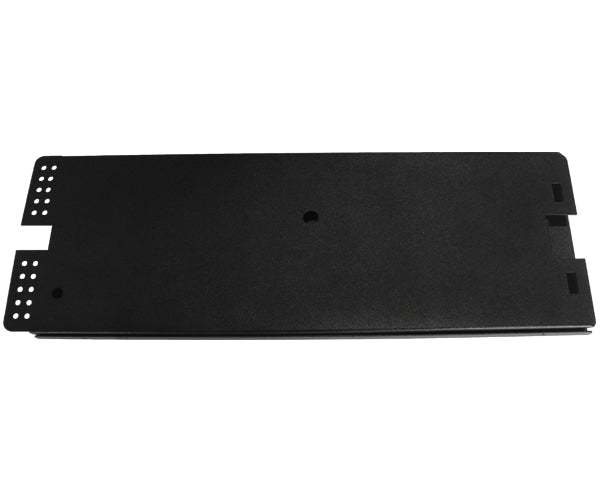

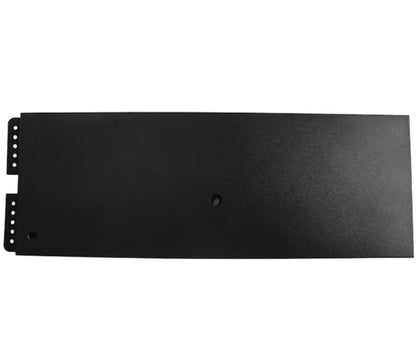

The FB25-6196STP36 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is fully compliant to industry specification. The FB25-6196STP36 splice tray is designed to be installed into the FDUs or in the Optical Fiber Splice Closure. The tray is one of a family of units that support fiber splicing. Measures 11.75" x 4" x 0.48".
This tray is ideal for medium sized fiber splicing projects. This tray cradles up to 36 spliced fiber optic wires.
Features
Features
- Made from light weight aluminum coated with a durable black paint
- 36 single fusion splice capacity
- Adhesive backed fiber insert holders and assorted cable ties included
- Provides protection and organization of fiber splices
Specifications
Specification
| Capacity | |
|---|---|
| Single Fusion | 36 Splices |
| Mass Fusion | 96 Splices |
| Dimensions | |
|---|---|
| Depth | 0.5" |
| Length | 11.75" |
| Width | 4" |
| Physical Properties | |
|---|---|
| Material | Aluminum |
| Color | Black |
What's in the Box
What’s in the Box

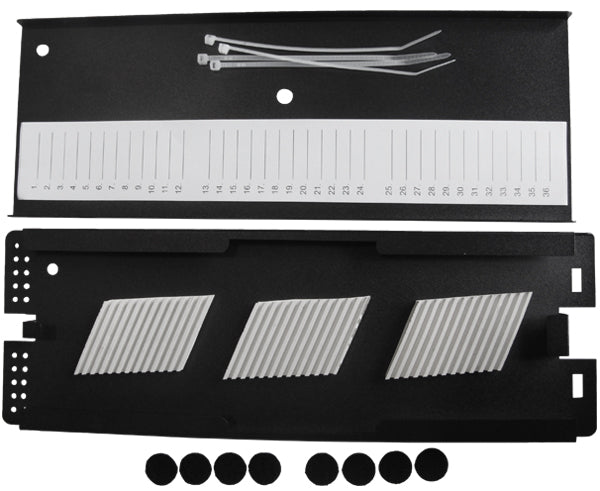

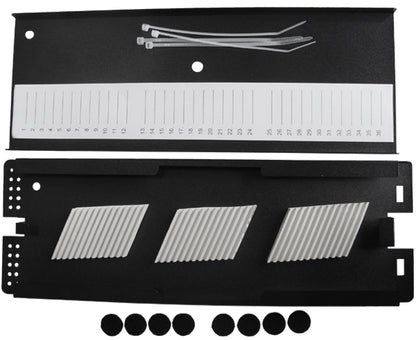

- Qty 1 - Aluminum Fiber Splice Tray, 36 Single Fusion Splice capacity, dimensions 11.75" x 4" x 0.48"
- Qty 1 - Adhesive backed fiber insert holders
- Qty assorted - Cable ties for fiber management
