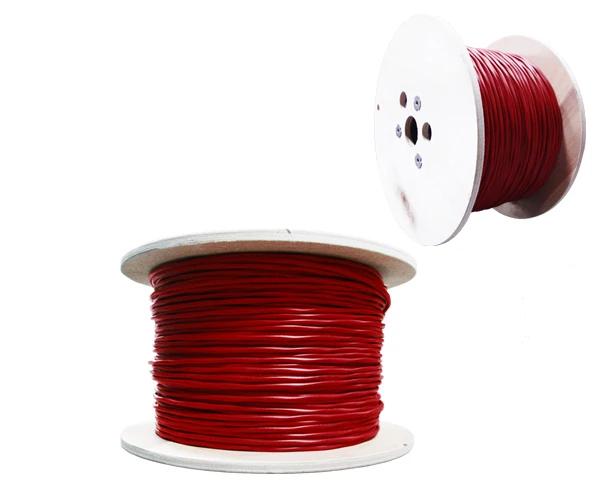

Fire Alarm Cable: FPLP - Shielded Plenum (Data Grade, 16/2 AWG Solid Bare Copper) - 1000 Feet

SKU: FA4-2006/162
Various lead times may apply to this product. Please contact us for more details.
UL Listed    Made in USA    RohHS Compliant    ETL_Listed
Commercial / Data Grade Addressable Systems FPLP Rated Shielded


Fire Safety First Priority!

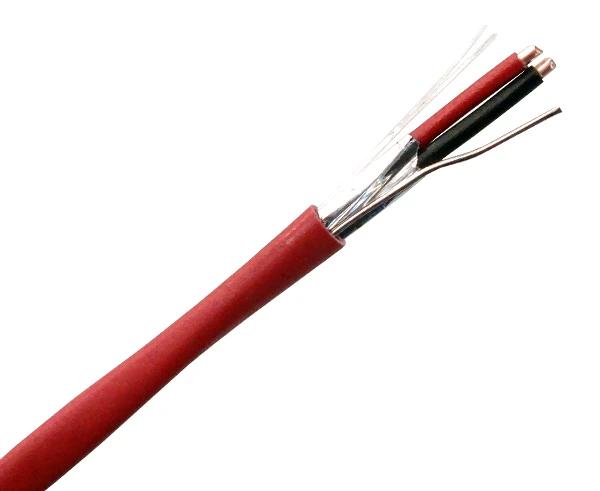

The Plenum Shielded Data Grade (FPLP) Fire Alarm Cable is equipped with two solid bare copper conductors featuring Fluoropolymer insulation, available in 12, 14, 16, and 18 gauge sizes.

ts red, low-smoke PVC jacket ensures safe installation in spaces with environmental airflow. The shielding offers protection against system noise, while sequential footage markings on the jacket facilitate efficient installation and easy monitoring of the remaining cable length.

Prioritizing top-tier fire alarm cables is paramount for safeguarding lives. As a reputable industry leader, we exclusively offer high-quality products. Fire alarm cables play a crucial role during emergencies, enabling the activation of sprinklers and smoke alarms, and aiding in swift evacuation. Choose a trusted source for your fire alarm cables to ensure the utmost reliability when lives are at stake.

Fire Alarm Installation

There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, siren alarms, fire alarm control panels, pull boxes, burglar alarms, and other fire alarm protection systems. Fire alarm circuits control and power various applications, including safety functions, elevator capture and shutdown, door release mechanisms, and damper control.

Fire System Products

We offer a diverse selection of fire alarm cables, including shielded and unshielded varieties in Plenum, Non-Plenum, and Riser configurations, featuring FPLP and FPLR ratings, and solid bare copper conductors ranging from 18 AWG to 12 AWG. These cables are designed to be flexible for effortless installation. With our unwavering dedication to quality and reliability, our cables are UL and ETL Listed, as well as RoHS Compliant. Plenum-rated alarm cables are suitable for installation in the space between floors, typically used as duct areas or other air spaces. The term "Plenum" refers to the jacket material of the cable, which exhibits lower burn characteristics compared to non-plenum cables.

Why Plenum?

A plenum space is an open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.



  • Low Smoke Generating FPLP Plenum Rated PVC Jacket
  • 16/2 AWG
  • Solid Bare Copper Conductors
  • Plenum Shielded Data Grade
  • Sequential Footage Markings on Jacket
  • ETL Listed
  • RoHS Compliant
  • Voltage Rating: 300V
  • Temperature Rating: 75°C
  • Made in USA
  • Fire Alarm Wiring
  • Fire Protection
  • Signals
  • Monitoring and Detection Systems
  • Audio Circuits
  • Notifications Circuits
  • Control Circuits
  • Initiating Circuits
Conductor Insulation Colors
  1. Black
  2. Red



Physical Construction

Inner Conductor Solid Bare Copper
Conductor Size 16 AWG
Insulation Low Smoke PVC
Nominal OD 5.16mm
Outer Jacket Diameter .457mm
Jacket PVC
Jacket Color Red
Shielding Aluminum with Mylar

Electrical Characteristics

Temperature 75℃
Voltage Rating 300V
Color Mode Black

Additional Information

Additional Information

To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.

To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.

What's in the Box

What's in the Box

  • Fire Alarm Cable, Shielded Plenum, Dta Grade, 16/2AWG, Solid BC, Red PVC Jacket
  • 1000 Ft.
