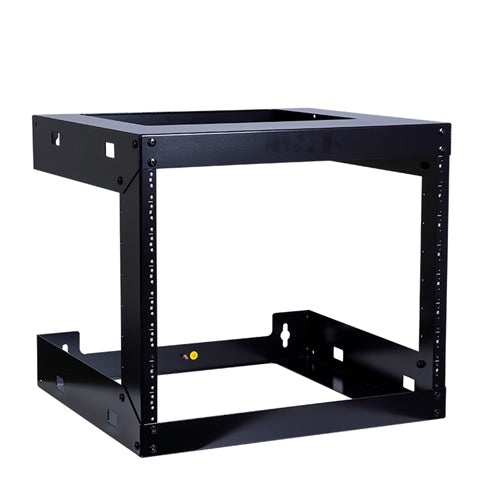

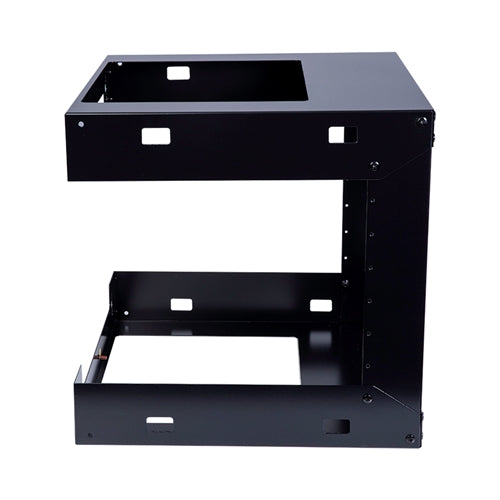

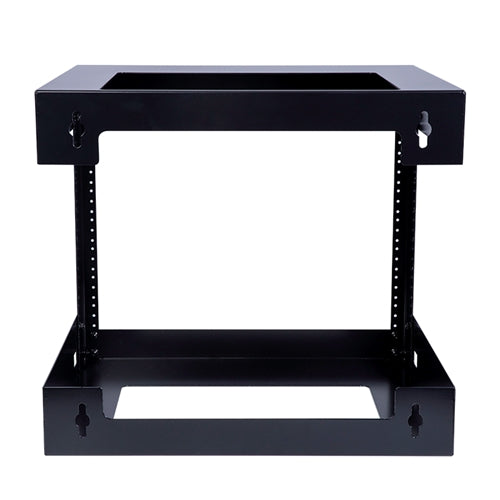

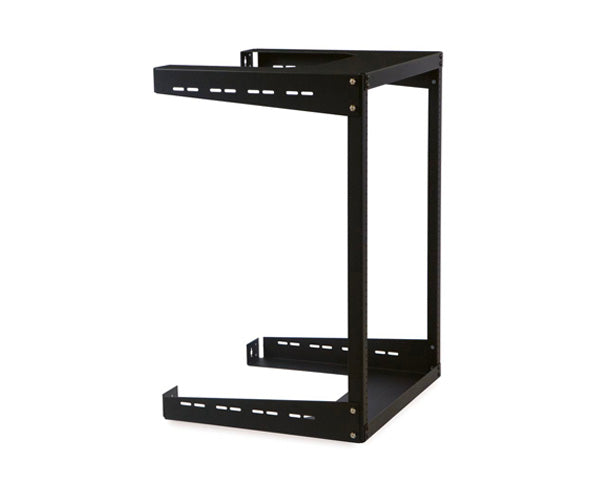

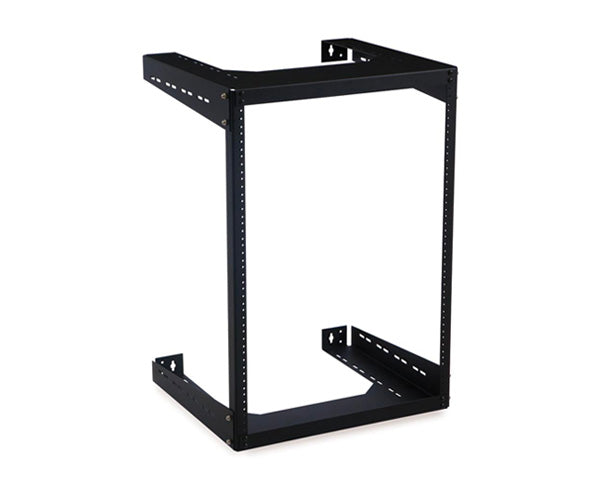

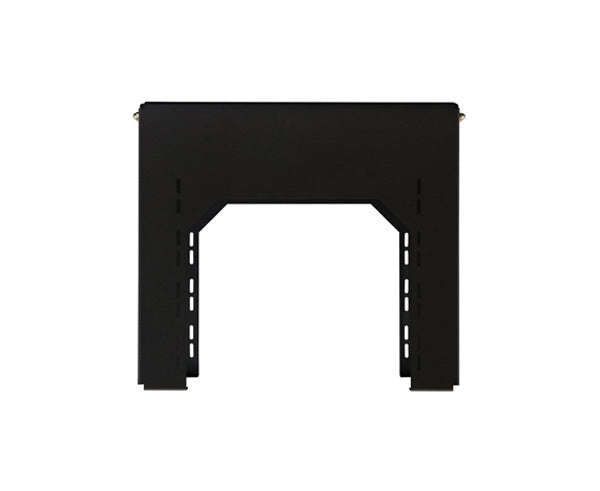

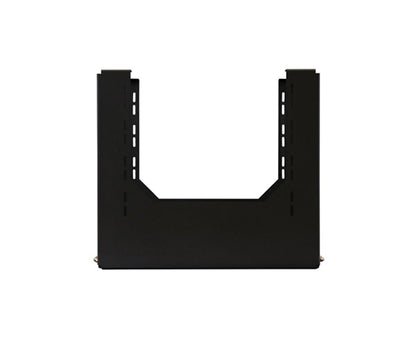

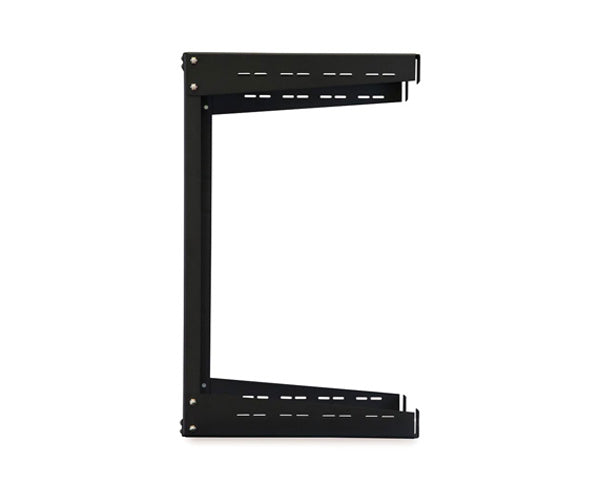

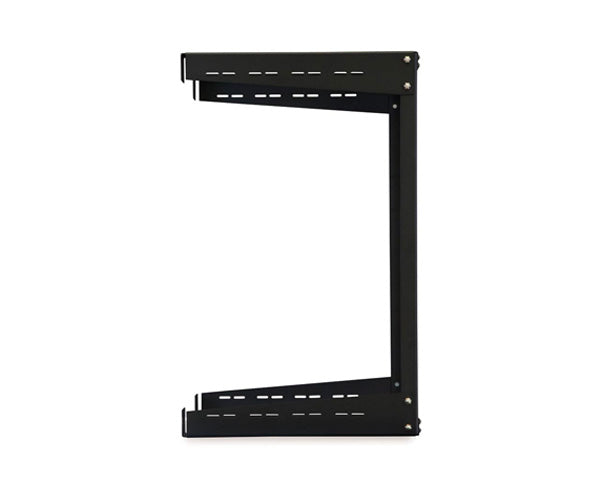

Fixed Wall Mount Racks
Our Wall Mount Racks are a cost-effective solution for storing rackmount IT equipment in environments that don’t require a lockable cabinet. The open frame design provides easy access to equipment and is shipped unassembled and flat packed for easy handling and reduced freight cost.
Features
Features

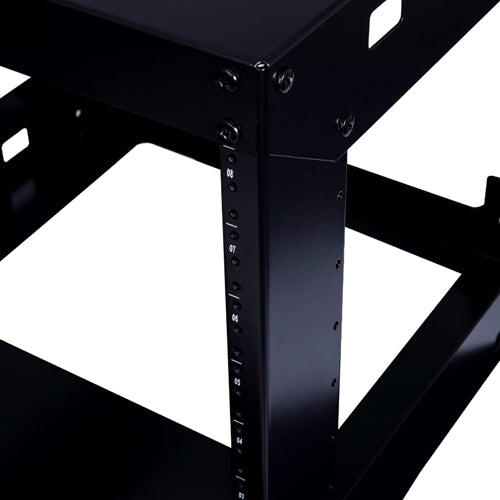

- EIA-compliant 19” mounting rails with 10-32 tapped holes and printed RU markings
- Provides 18” of equipment depth
- Supports up to 150 lbs. of equipment (see Specifications for specific weight capacities)
- Available in 8U, 15U, and 30U
Specifications
Specifications
| Document | Description | Download |
|---|---|---|
| Spec Sheet | Product overview and specifications | Download Spec Sheet |
| Tech Drawing | 8U Fixed Wall Mount Rack | Download 1915-3-500-08_WP Drawing |
| Tech Drawing | 15U Fixed Wall Mount Rack | Download 1915-3-500-15_WP Drawing |
| Tech Drawing | 8U Fixed Wall Mount Rack | Download VW5-5081 Drawing |
| Tech Drawing | 15U Fixed Wall Mount Rack | Download VW5-5151 Drawing |
| Tech Drawing | 30U Fixed Wall Mount Rack | Download VW5-5301 Drawing |
|
Material |
14 Gauge Cold Rolled Steel (Top & Bottom) 16 Gauge Cold Rolled Steel (Mounting Rails) |
|
Compliance & Standards |
ANSI / EIA RS-310D, WIEC60297-2 |
|
|
Description |
Height |
Weight |
Capacity |
|
NPNB-VW5-5081 |
8U Wall Mount Rack |
17.75" |
18.25 lbs |
150 lbs |
|
NPNB-VW5-5151 |
15U Wall Mount Rack |
30.00" |
22.00 lbs |
150 lbs |
|
NPNB-VW5-5301 |
30U Wall Mount Rack |
56.24" |
28.55 lbs |
125 lbs |
What's in the Box?
What's in the Box?
- Qty 1 - Package of Fixed Wall Mount Rack
