(We do not offer credits or returns for this item.)
This fiber cable is priced per foot.
Note: Orders over 1200ft must ship freight and require a shipping quote. To request a shipping quote email us or call us
If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleys please call or email us.
Description

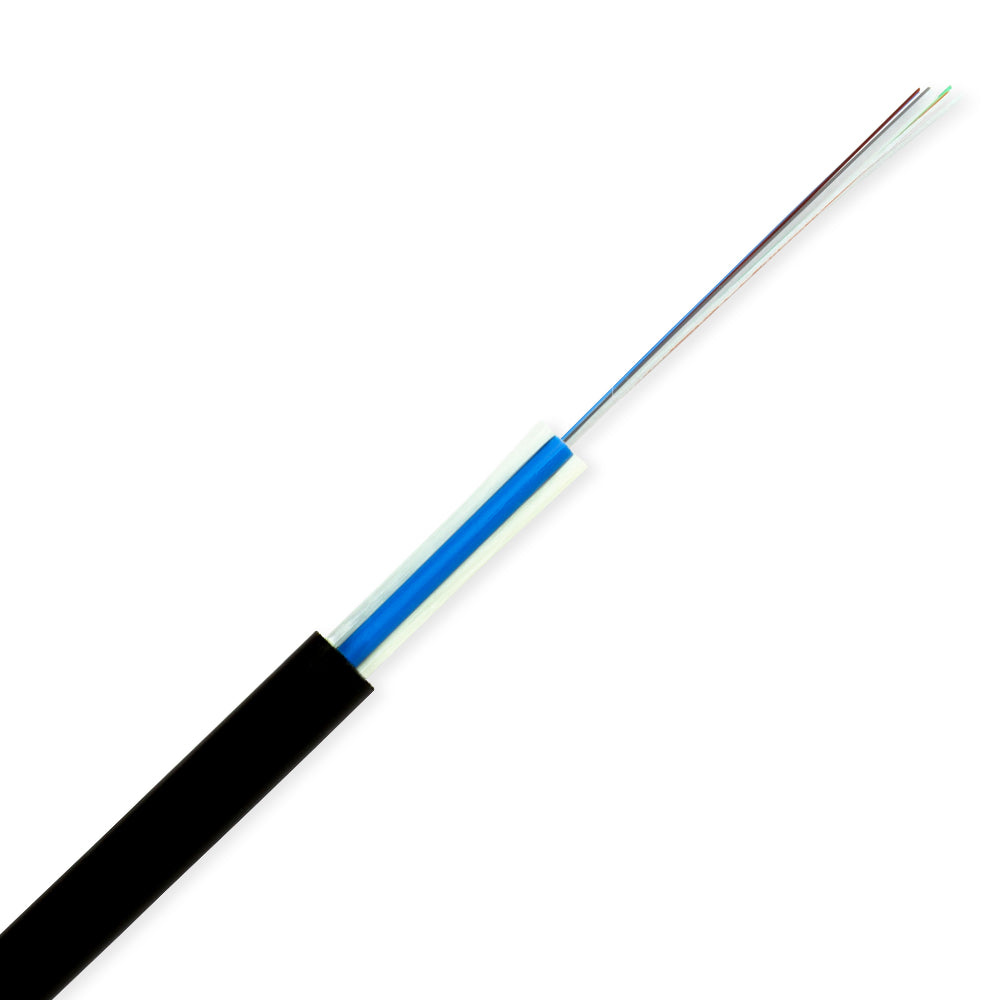

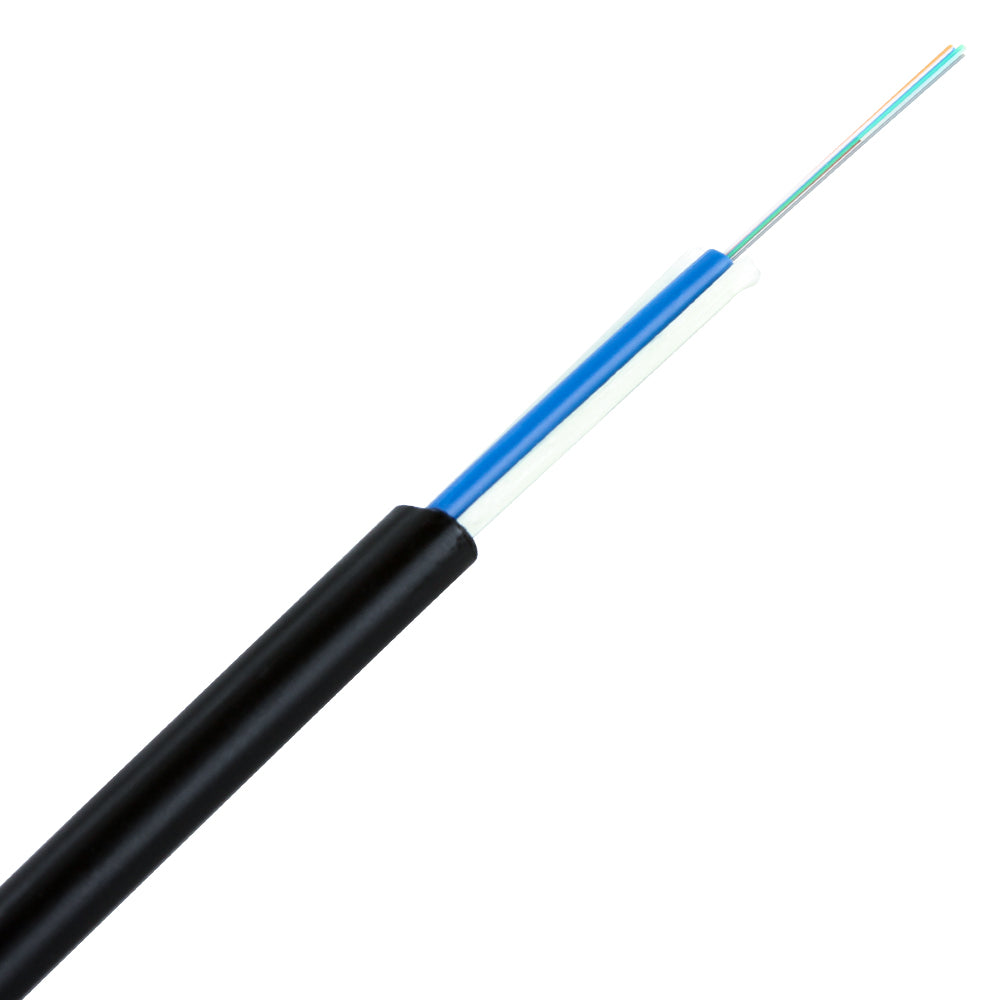

Dielectric Dry Flat Drop Loose Tube Fiber Cable Single Mode 9/125 OS2, Polyethylene Jacket

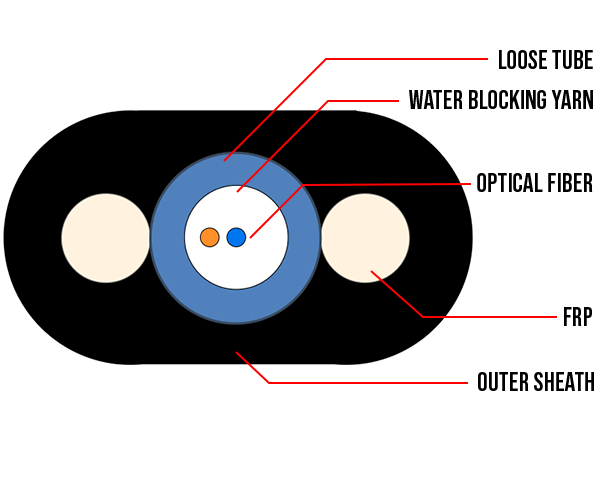

The Dielectric Dry Flat Drop Cable comprises bare-colored optical fibers (available fiber counts are 2, 6, and 12) with water-blocking aramid yarn inside a 3.0mm dry buffer tube. The UV-resistant polyethylene outer jacket encases the buffer tube along with 2 dielectric FRP strength members, one on each side of the buffer tube. All component materials meet the EU RoHS Directive standard.
Dry Flat Drop Cable is available in black jackets only. Standard surface print denotes construction, and fiber type, and includes footage markers.
Features
Features
- All dry (Gel-free)
- Easy preparation Color-coded fibers
- Water block technology
- Easy and quick identification Loose tube design
- Stable performance and compatibility with all common fiber types All-dielectric construction
- Available in 2, 6, and 12 strand
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 4.5±0.3mm x 8.0±0.4mm |
| Cable Weight | 36 kg/km (approx.) |
| Tensile Strength (Short Term) | 1000 |
| Tensile Strength (Long Term) | 500 |
| Minimum Bend Radius (Static) | 10x Cable Diameter |
| Minimum Bend Radius (Dynamic) | 20x Cable Diameter |
| OPTICAL CHARACTERISTICS | |
| Core Size | 9/125 |
| Numerical Aperture | 0.14 |
| Mode-Field Diameter (1310/1550nm) | 9.2/10.4mm |
| Link Length @1550 | 10,000m/5,000m |
| Attenuation (Maximum) @1310nm | ≤ 0.35 dB/km |
| Attenuation (Maximum) @1550nm | ≤ 0.21 dB/km |
| TEMPERATURE RANGE | |
| Storage / Transportation | -4°F~+158°F (-20°C~+70°C) |
| Operation | -4°F~+158°F (-20°C~+70°C) |
| Installation | 14°F~160°F(-10°C~+60°C) |
| CONSTRUCTION | |
| Loose Tube | Gel-free |
| Overall Jacket Material | Polyethylene |
| Strength Member | 1.5 FRP's |
| STANDARDS AND CERTIFICATIONS | |
| ITU-T G.652 | |
What's in the Box
What’s in the Box
- Qty 1 - Flat Drop Loose Tube Fiber, SM,9/125, PE Jacket, Gel-Free Water-block Cable, Black (cut to ordered length, e.g., by foot or reel)
- Qty 1 - Protective Packaging (bag, spool, or box as ordered)
