(We do not offer credits or returns for this item.)
This fiber cable is priced per foot.
Note: Orders over 1200ft must ship freight and requires a shipping quote. To request a shipping quote email us or call us
If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleyes please call or email us.
Description

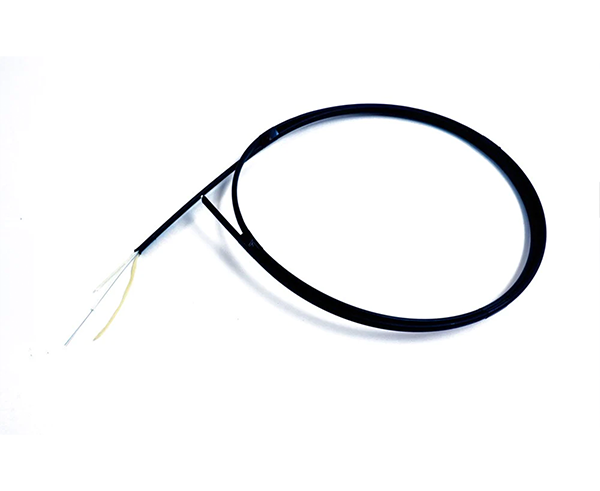

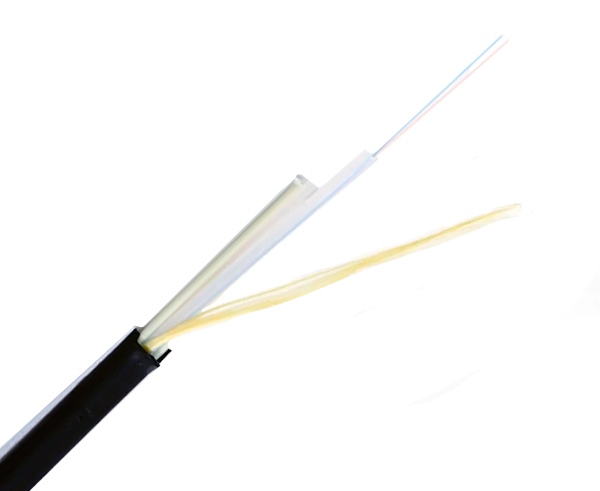

Flat Drop Cable Gel-Free Single Mode SMF28 Ultra Fiber 12 Fiber, Polyethylene Jacket

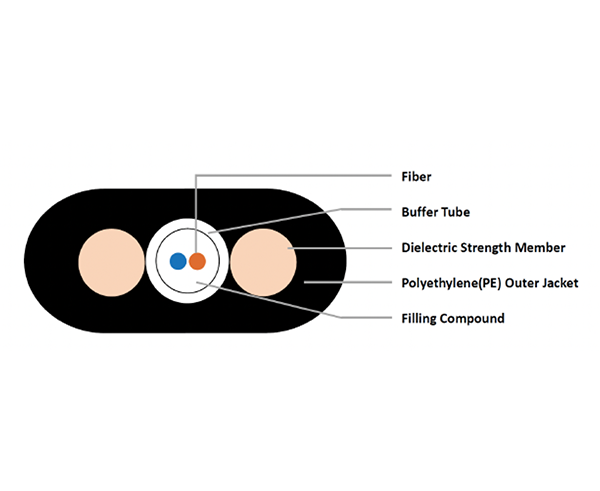

Drop FTTP offers the most flexible solution for fiber to the premise applications. The Drop cable unit allows for easy location after installation. The small profile reduces cost and increases both ease of use and access to small conduits. The durable design incorporates two dielectric rigid rods for tensile and crush protection, bracketing a single gel-free, enhanced loose tube containing containing 12 fibers.
Features
Features
- Core Diameter: 8.2 μm
- Cladding Diameter: 125+/-0.7μm
- Core-Clad Concentricity Error: ≤0.5μm
- Cladding Non-Circularity: ≤0.7%
- Coating Diameter: 242+/-0.5 μm
- Coating-Cladding Concentricity: < 12 μm
- Mode Field Diameter: 9.2+/-0.4 μm@1310nm; 10.4+/-0.5 μm@1550nm
- Cable Cutoff Wavelength: ≤1260 nm
- PMD Link Design Value: ≤0.04ps/√km
- Maximum Individual Fiber PMD: ≤0.1ps/√km
- Attenuation (Maximum):
≤ 0.32 dB/km @1310nm
≤ 0.32 dB/km @1383nm
≤ 0.21 dB/km @1490nm
≤ 0.18 dB/km @1550nm
≤ 0.20 dB/km @1625nm
Applications
- Local Area Network(LAN)
- Subscriber Network System
- Long Haul Communication System
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| ITEM | CONTENTS | UNIT | VALUE |
| OPTICAL FIBER | / | / | |
| NUMBER | / | 12 | |
| COLOR | / | BLUE, ORANGE, GREEN, BROWN, GRAY, WHITE, RED, BLACK, YELLOW, VIOLET, PINK, AQUA | |
| STRENGTH MEMBER | MATERIAL | / | FRP |
| DIAMETER | MM | 1.5 | |
| LOOSE TUBE | DIAMETER | MM | 2.4±0.2 |
| MATERIAL | / | PBT | |
| WATER-BLOCKING MATERIAL | / | WATER-BLOCKING YARN | |
| COLOR | / | NATURE | |
| OUTER JACKET | DIAMETER | MM | 4.8±0.2*9.7±0.5 |
| MATERIAL | / | PE | |
| COLOR | / | BLACK | |
| SUPPORTING WIRE | MATERIAL | / | COPPER CONDUCTOR |
| DIAMETER | MM | 0.5 | |
| TENSILE PERFORMANCE | SHORT TERM | N | 1000(FIBER STRAIN≤0.6%) |
| LONG TERM | N | 500(FIBER STRAIN≤0.3%) | |
| CRUSH | SHORT TERM | N/100MM | 1000 |
| LONG TERM | N/100MM | 500 | |
| CABLE ATTENUATION | DB/KM | ≦ 0.4 AT 1310NM, ≦ 0.3 AT 1550NM | |
| CABLE WEIGHT (APPROX.) | KG/KM | 40.4 | |
What's in the Box
What’s in the Box
- Qty 1 – Pre-cut length of gel-filled flat drop cable (single-mode SMF-28 Ultra fiber, polyethylene jacket)
