This unit requires an SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.
Description
Description
What this product does

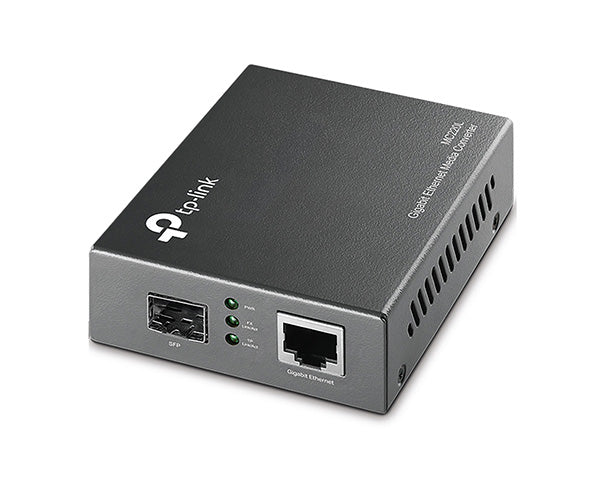

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module.
Features
Features
- 10/100/1000Mbps Auto-Negotiation RJ45 Ports Supporting Auto-MDI/MDIX
- Auto-negotiation of Half-duplex / Full-duplex Transfer Mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- SFP Port Supports Hot-swappable
Specifications
Specifications
| MEDIA CONVERTER & MODULES | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Ports | 1 x Gigabit SFP port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | 5PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 x 2.9 x 1.1 in (94 x 73 x 27 mm) |
| Power Supply | External Power Adapter (9VDC/ 0.6A) |
| Max Power Consumption | 1.7 W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
What's in the Box
What's in the Box
- Qty 1 – Media Converter (MC220L)
- Qty 1 – Power Adapter
- Qty 1 – Installation Guide
