This unit requires a SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.
Description
Description

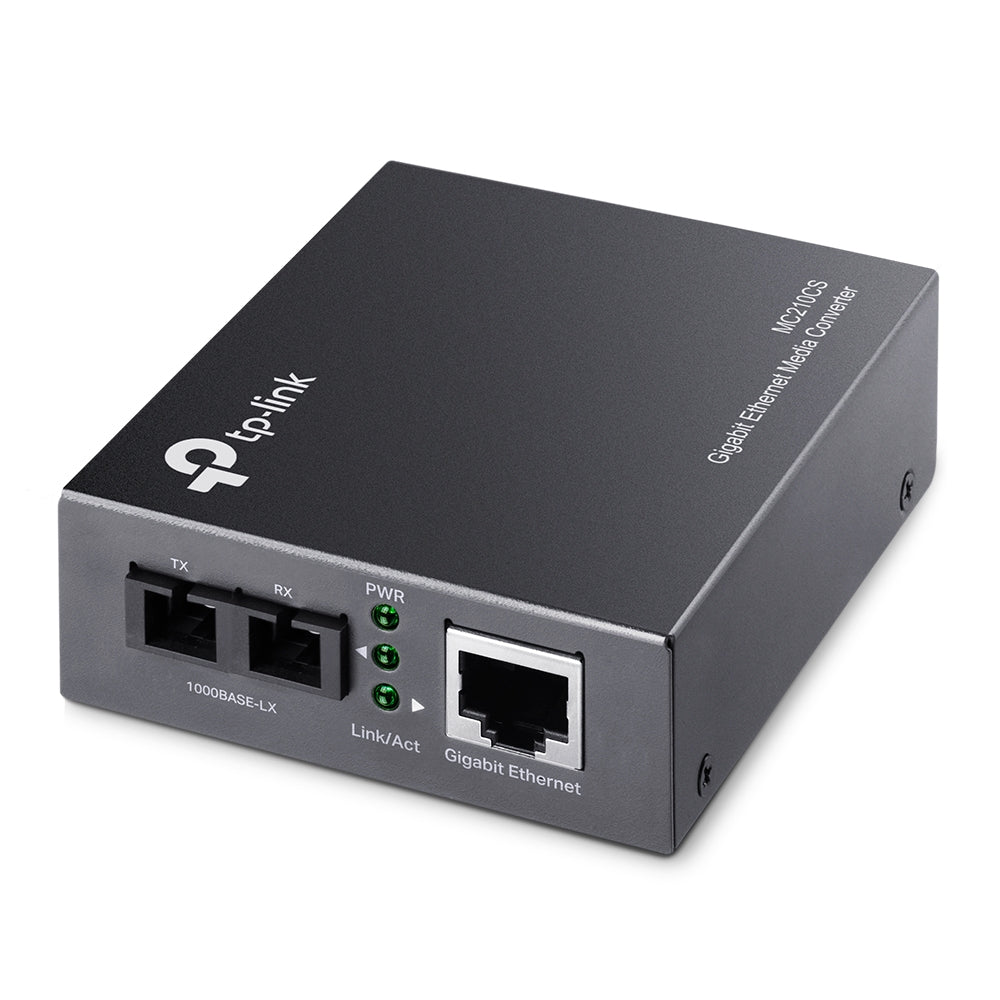

Gigabit Single Mode Media Converter
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand-alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single mode fiber up to 20 kilometers.
Features
Features
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 Port Supporting Auto-MDI/MDIX
- Auto-negotiation of Half-duplex / Full-duplex Transfer Mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends Fiber Distance up to 20km
Specifications
Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Auto-negotiation of Half-duplex / Full-duplex Transfer Mode. Extends Fiber Distance up to 20km |
| Ports |
1× 1000M SC/UPC Port 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX) |
|
Wave Length |
1310 nm |
| Network Media 1000BASE-LX | Single Mode Fiber |
| Network Media 1000BASE-T |
UTP Category 5, 5e Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |

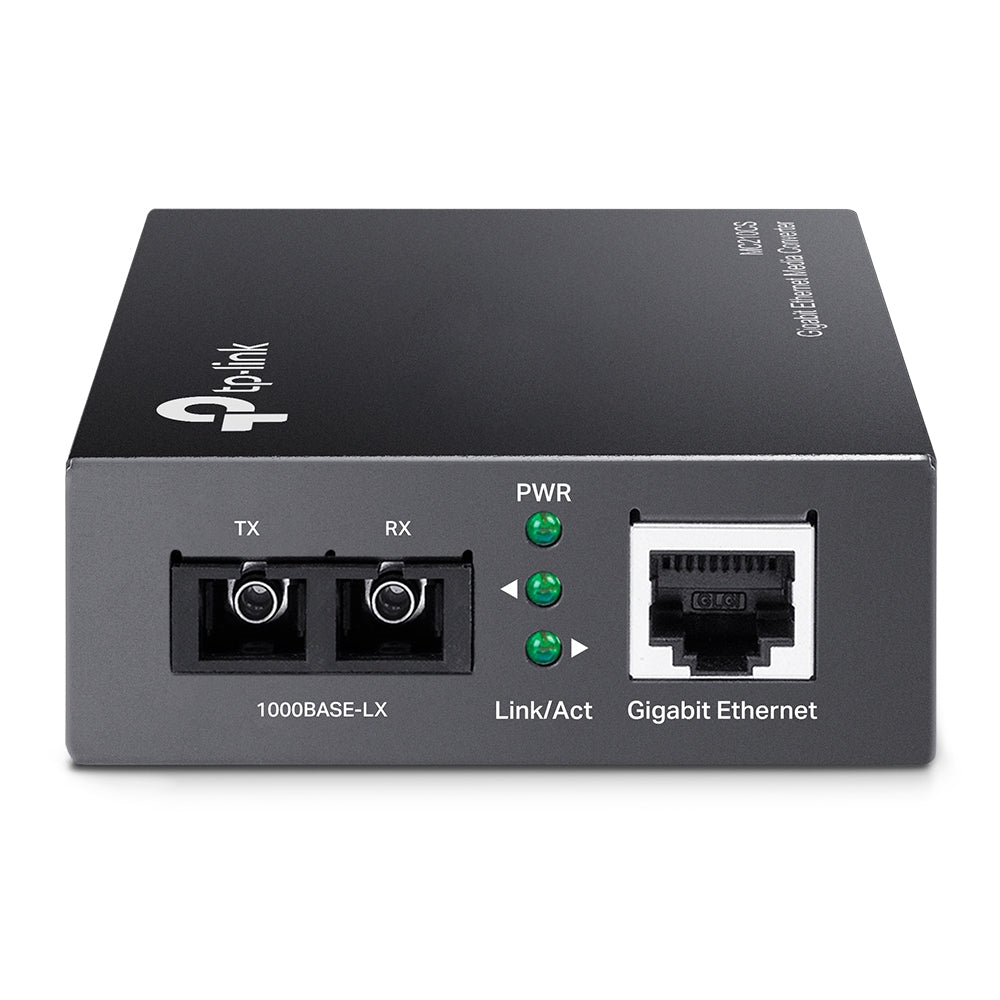

| LED Indicators | PWR, Link/Act |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1 in (95 x 73 x 27 mm) |

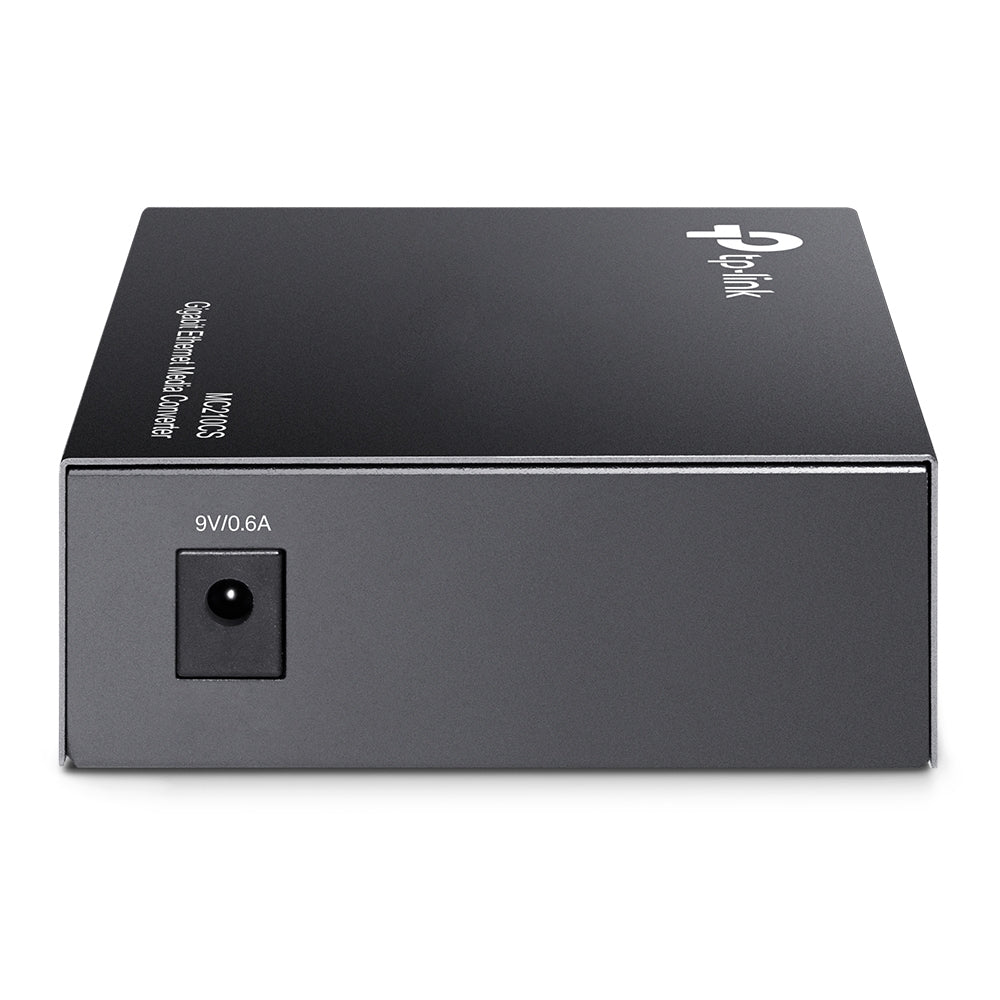

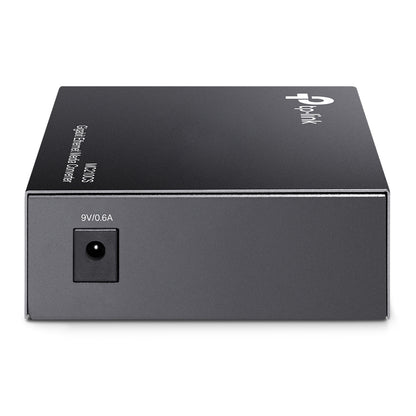

| Power Supply | External Power Supply |
| Max Power Consumption | 1.8W |
| Safety & Emission | FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
What's in the Box
What's in the Box
- Qty 1 - Media Converter MC210CS
- Qty 1 - Power Adapter
- Qty 1 - Installation Guide
