Grounding Bridge - Bronze - #6 to #1/0
Grounding Bridge - Bronze - #6 to #1/0
BY Arlington
Regular price
$25.37 USD
Regular price
Sale price
$25.37 USD
Unit price
/
per
SKU: SKU: GBB50
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsDescription
Features
Specifications
What's In The Box

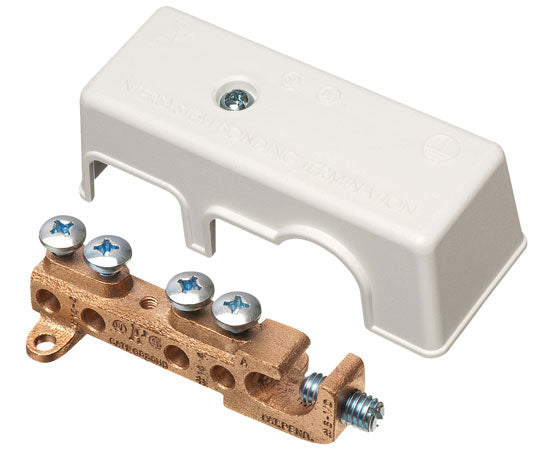

Grounding Bridge For Intersystem Bonding
Our heavy-duty Grounding Bridge provides reliable intersystem bonding between power and communication grounding systems. There are four termination points; one more than required by 250.94 of the 2014 NEC. This product has the capacity to handle multiple hookups of communications systems; telephone, CATV or satellite dish.

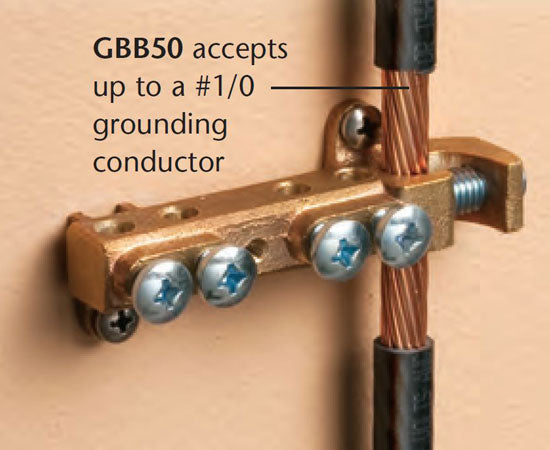

The grounding electrode conductor or equipment grounding conductor accepts #6 to #1/0. copper, aluminum, solid or stranded.
Features
- For indoor or outdoor use
- Intersystem Bonding and Grounding Conductors:
- All accommodate #14 to #4 copper or aluminum, solid or stranded
- Grounding Electrode Conductor or Equipment Grounding Conductor.
- GB5 and GBB5 accept #6 to #2. GBB50 accepts #6 to #1/0. All can be used with copper or aluminum, solid or stranded.
- Fast, simple installation
- Easy access for inspections
- For good looks - textured, paintable plastic cover
Specifications

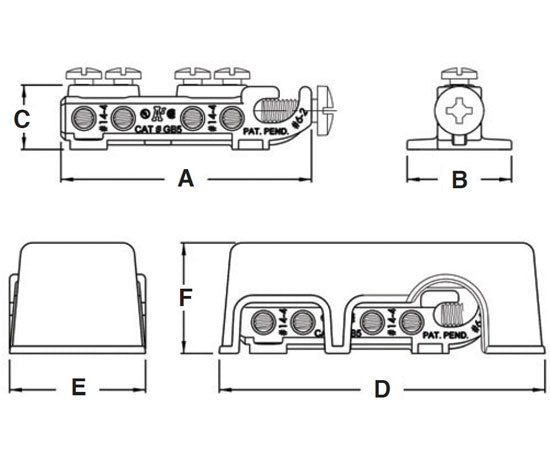

| Spec Sheet | Part Number | Description | Dim A | Dim B | Dim C | Dim D | Dim E | Dim F |
|---|---|---|---|---|---|---|---|---|
 |
NPNB-GBB50 | Bronze #6 to #1/0 CU/AL | 3.383 | 1.409 | .872 | 4.398 | 1.836 | 1.497 |
What's In The Box
- Qty 1 - Grounding Bridge in Bronze For Larger Grounding Conductor Sizes
